Issue 3.0
SV9100 System Hardware Manual 5-71
11. Holding the LCD in place, turn the multiline terminal button
side down.
12. Install screw (refer to Figure 5-72 Install Screw).
13. Attach the side panel to the side of the 8LKI (LD)-L UNIT
(refer to Figure 5-72 Install Screw).
14. Return the multiline terminal to the buttons side up.
15. Connect the line cord/LAN cable and the AC/DC adapter to
the ITL multiline terminal.
5.2.4 Installing Line Key Kit (12LK-L KIT)
The 12LK-L KIT Provides 12 additional buttons to ITL or DTL multiline
terminals. The 12LK-L KIT
kit:
Mounts directly to top side of terminal
Supports Red and Green LED colors

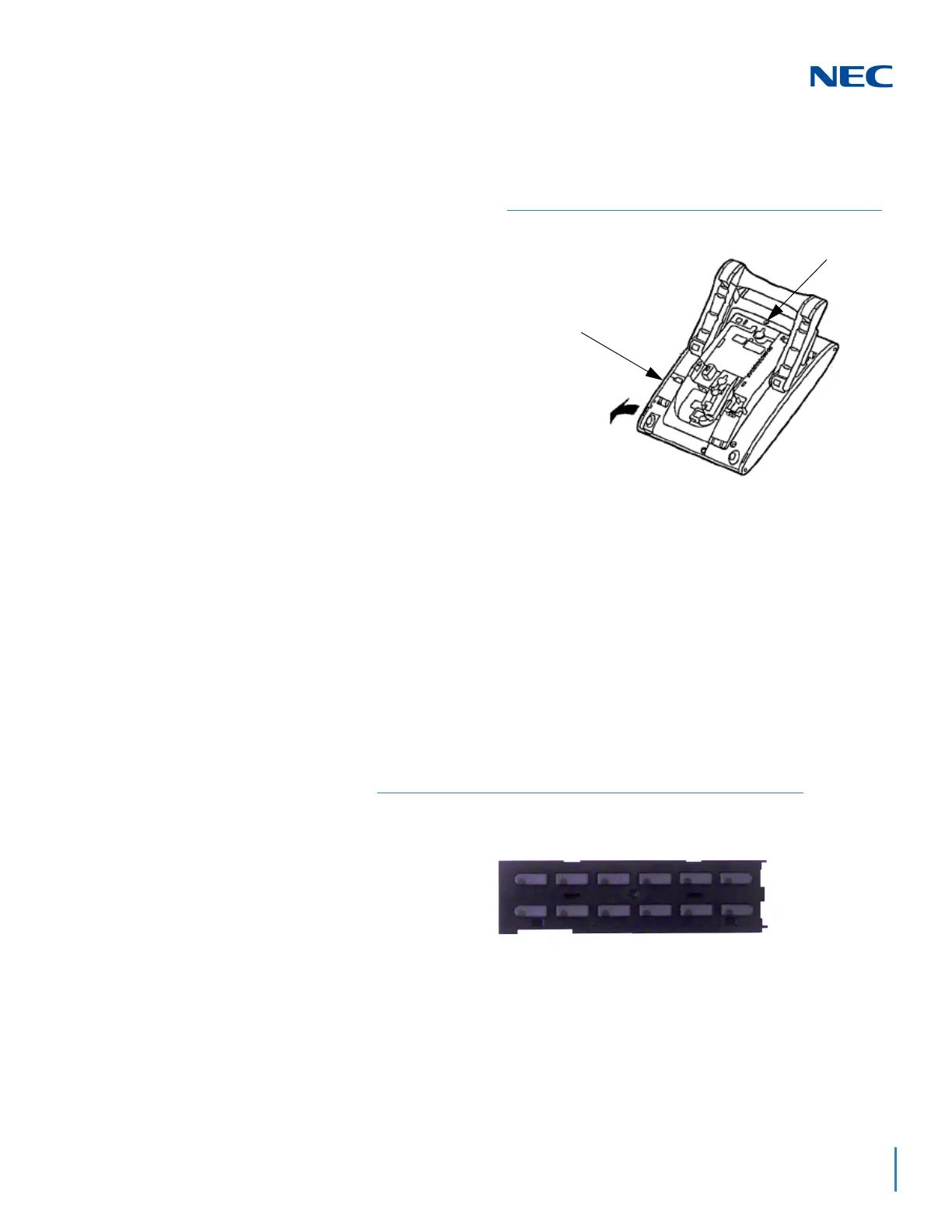

Figure 5-72 Install Screw
Figure 5-73 12LK-L Kit
