NEC Univerge SV9100 - Figure 3-133 Removing Battery Tray Suppressor; Figure 3-134 Disconnecting Battery Cables; Figure 3-135 CHSG LARGE BATT BOX Fuse Unit

Issue 3.0
3-102 Installing the SV9100 Chassis
2. Remove two screws from front of Battery Tray Suppressor (Refer to
Figure 3-133 Removing Battery Tray Suppressor).
3. Slide Battery Tray Suppressor outward to remove.
4. Disconnect the Battery Connection Cables from the Fuse Unit.
5. Loosen two screws and pull Fuse Unit out of the CHSG LARGE BATT
BOX.
6. Refer to Figure 3-135 CHSG LARGE BATT BOX Fuse Unit on page
3-103 for replacement of 8A or 30A fuses.

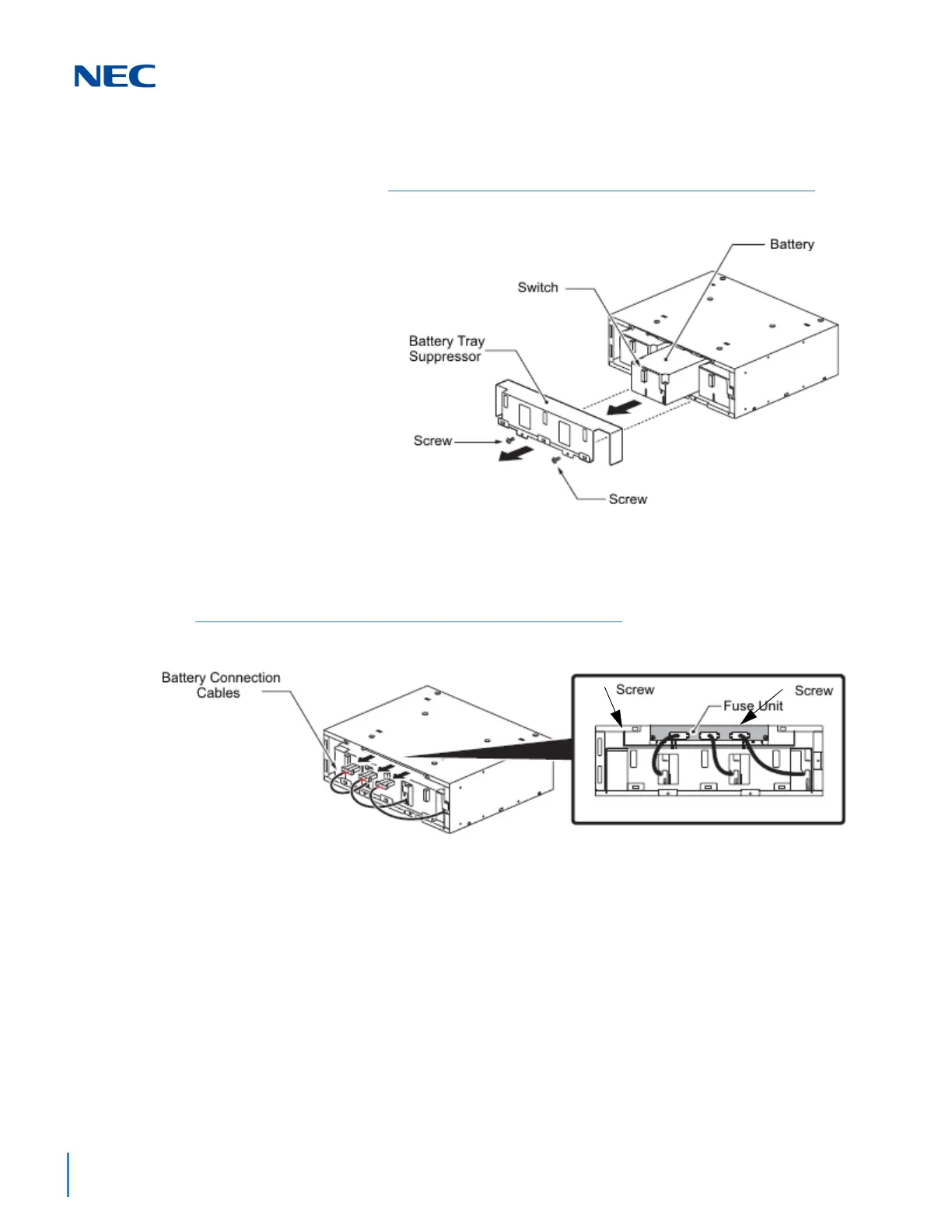

Figure 3-133 Removing Battery Tray Suppressor
Figure 3-134 Disconnecting Battery Cables
