NEC Univerge SV9100 - Figure 9-102 In-Line Power Adapter Switch Settings

Issue 3.0
SV9100 System Hardware Manual 9-121
When using center feed, set the SW1 switch located on the back of the
adapter as follows:
13.2.2 Installation
1. Set the SW1 switch on the ILPA-R adapter to the correct setting for
the Ethernet switch to which it is to be connected.
2. Set the switch setting on the NEC IPhone or IP adapter to the correct
position.

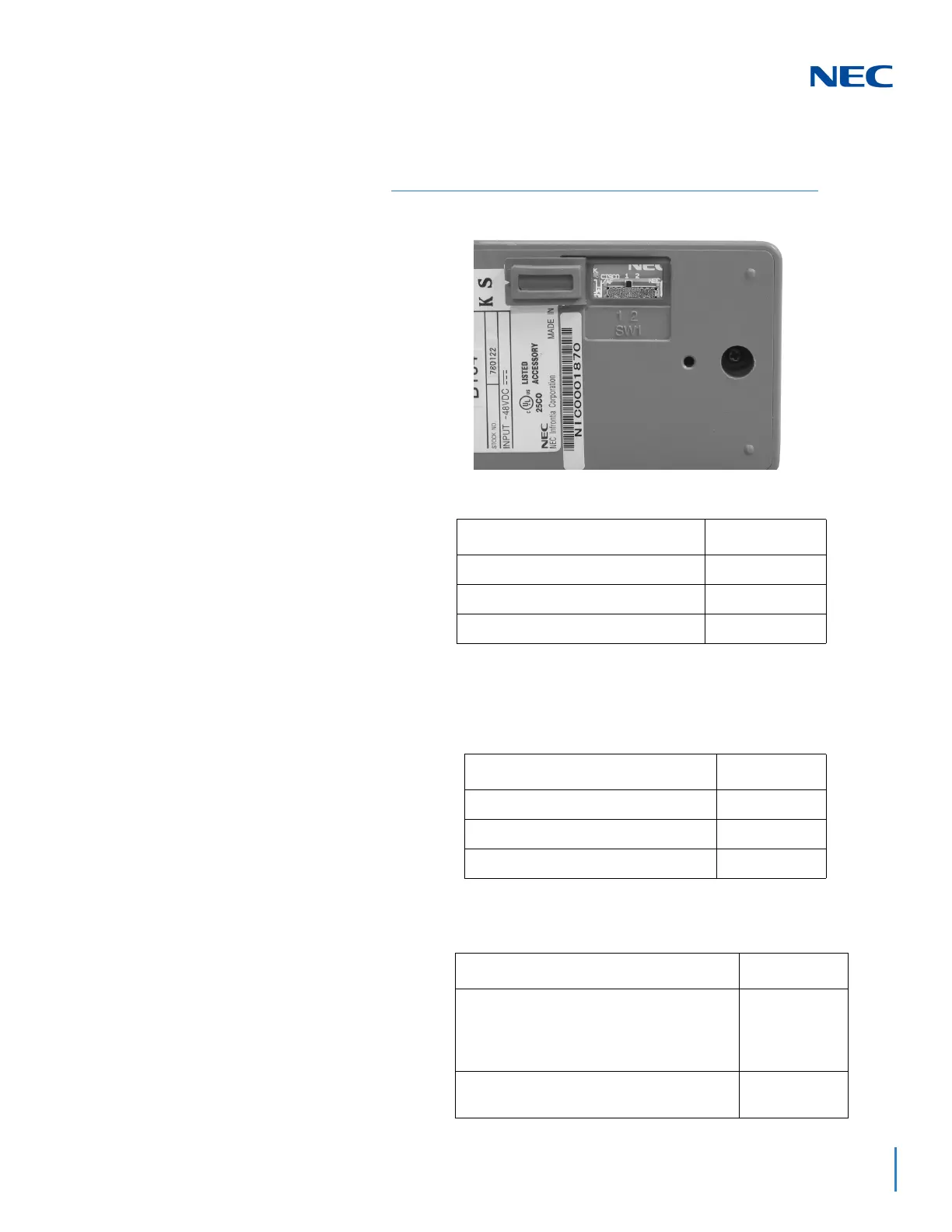

Figure 9-102 In-Line Power Adapter Switch Settings
Center Feed Hub System SW1 Setting
IEEE802.3af STD System
1
Cisco Discovery Protocol System
1
NEC BlueFire 200/24 Switch
2
Center Feed Hub System SW1 Setting
IEEE802.3af STD System
1
Cisco Discovery Protocol System
1
NEC BlueFire 200/24 Switch
2
IPhone (SW2) or IP Adapter (SW1) SW Setting
NEC Power Patch Panel
(12-port NEC SN1604 PWRMS,
24-port NEC BlueFire 200/24)
8SHUBU Blade
1
Cisco Catalyst Power Patch Panel
Cisco Catalyst PRW Series
2
