Issue 3.0
SV9100 System Hardware Manual 4-27
3.2 GPZ-IPLE (Voice over IP Daughter Board)
3.2.1 Description
The current GPZ-IPLE daughter board requires a single DSP IP address.
The IPLE daughter board provides:
 256 (GPZ-IPLE) channels
Refer to the following tables for maximum upgrade capacities of the
GPZ-IPLE daughter board:
 Table 2-6 SV9100 Maximum 9.5” Gateway and 19” System
Capacities – Blades on page 2-12
 Table 2-7 SV9100 Maximum 9.5” Base and Expansion System
Capacities – Blades on page 2-14
When installing an IPLE daughter board, the system allocates the maximum
number of trunk ports for the blade being installed.
The IPLE does not have any DSP limitations based on CODEC settings.

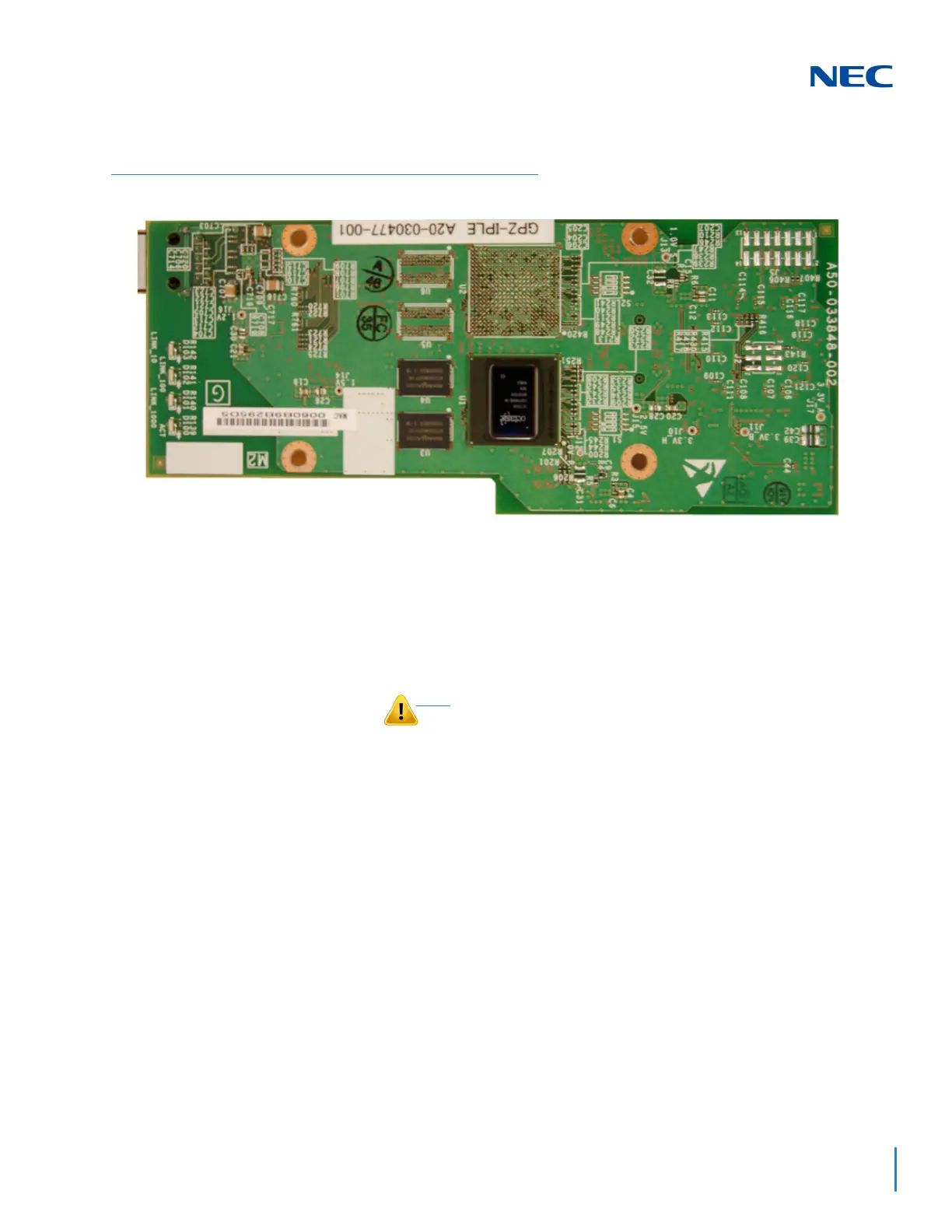

Figure 4-9 IPLE Daughter Board
CAUTION
❍ With SV9100 software and GPZ-IPLE daughter board
installed, half-duplex connections are not supported.
❍ For troubleshooting purposes, a managed switch capable of
port mirroring is required to capture packet data from the
SV9100 IPLE Ethernet port.
