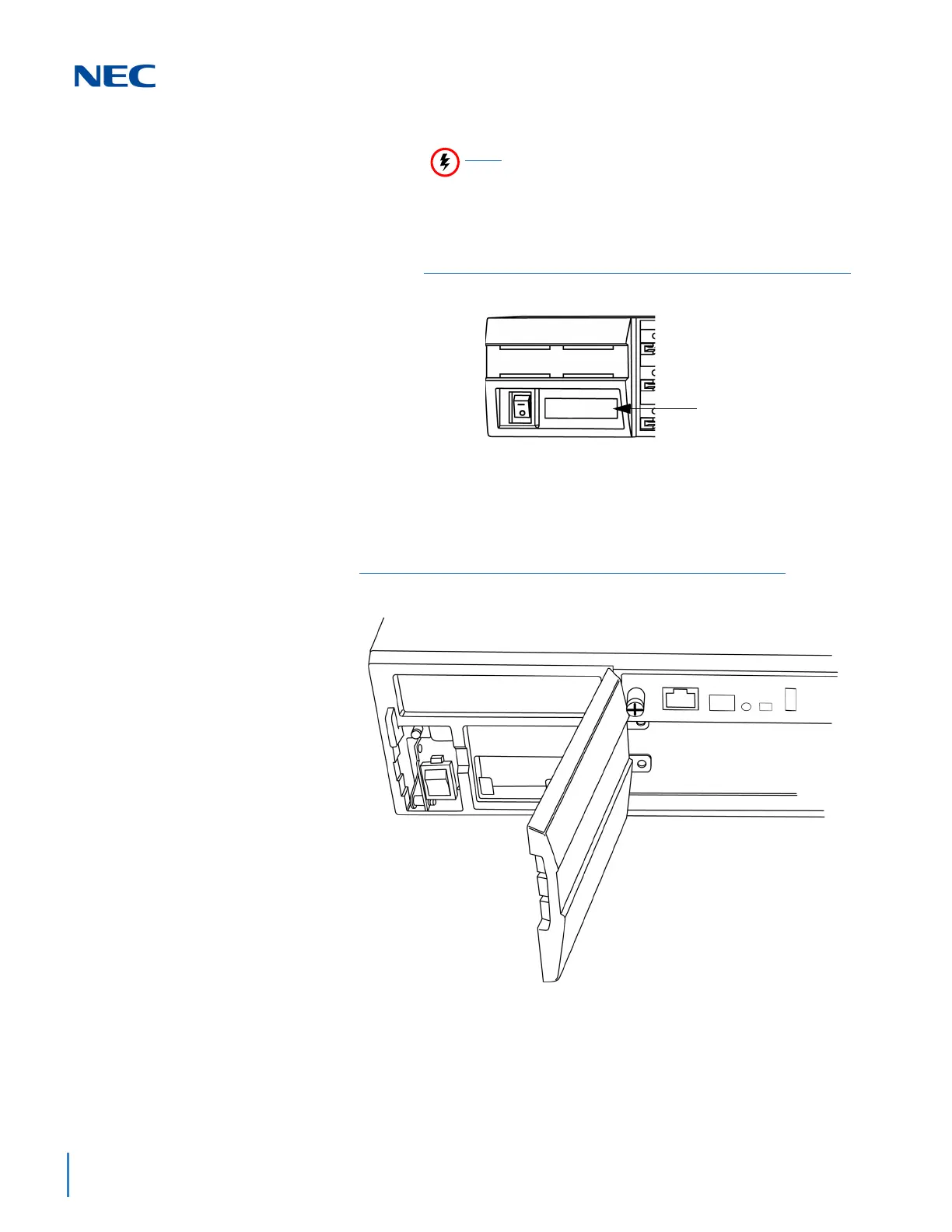

NEC Univerge SV9100 - Figure 3-14 GPZ-BS11 Expansion Bay in Expansion Chassis; Figure 3-15 Open Expansion Chassis Cover

Issue 3.0
3-14 Installing the SV9100 Chassis
1. Ensure the chassis is powered down.
2. Locate the door positioned on the left end (expansion bay)
of the Expansion Chassis.
3. From the left side of the chassis, pull cover outward to
expose the expansion bay (refer to Figure 3-15 Open
Expansion Chassis Cover on page 3-14).
4. Pull the cover toward you to remove.
 Cover must be removed to install GPZ-BS11 blade.
WARNING
Do not remove or install this blade with the power
on.
Figure 3-14 GPZ-BS11 Expansion Bay in Expansion Chassis
Expansion Bay
Figure 3-15 Open Expansion Chassis Cover
