Issue 3.0
3-114 Installing the SV9100 Chassis
SECTION 10 REMOVE AND INSTALL COOLING FAN
If required, the cooling fan installed in the CHS2UG-US chassis can be removed and
replaced. Follow the procedure below for the CHS2UG-US chassis.
10.1 CHS2UG-US Chassis
10.1.1 Remove Cooling Fan
1. Ensure the chassis is powered down.
2. Loosen retaining screw from chassis access panel.
3. Swing access panel outward and unplug fan power cable.
To reduce the possibility of electrical shock or damage to
equipment, NEC recommends powering off the chassis and
disconnecting the AC cable from the power source before
removing the chassis cover.
To reduce the possibility of damage to equipment, the installer
must wear a grounded wrist strap to protect the equipment
from static electricity.

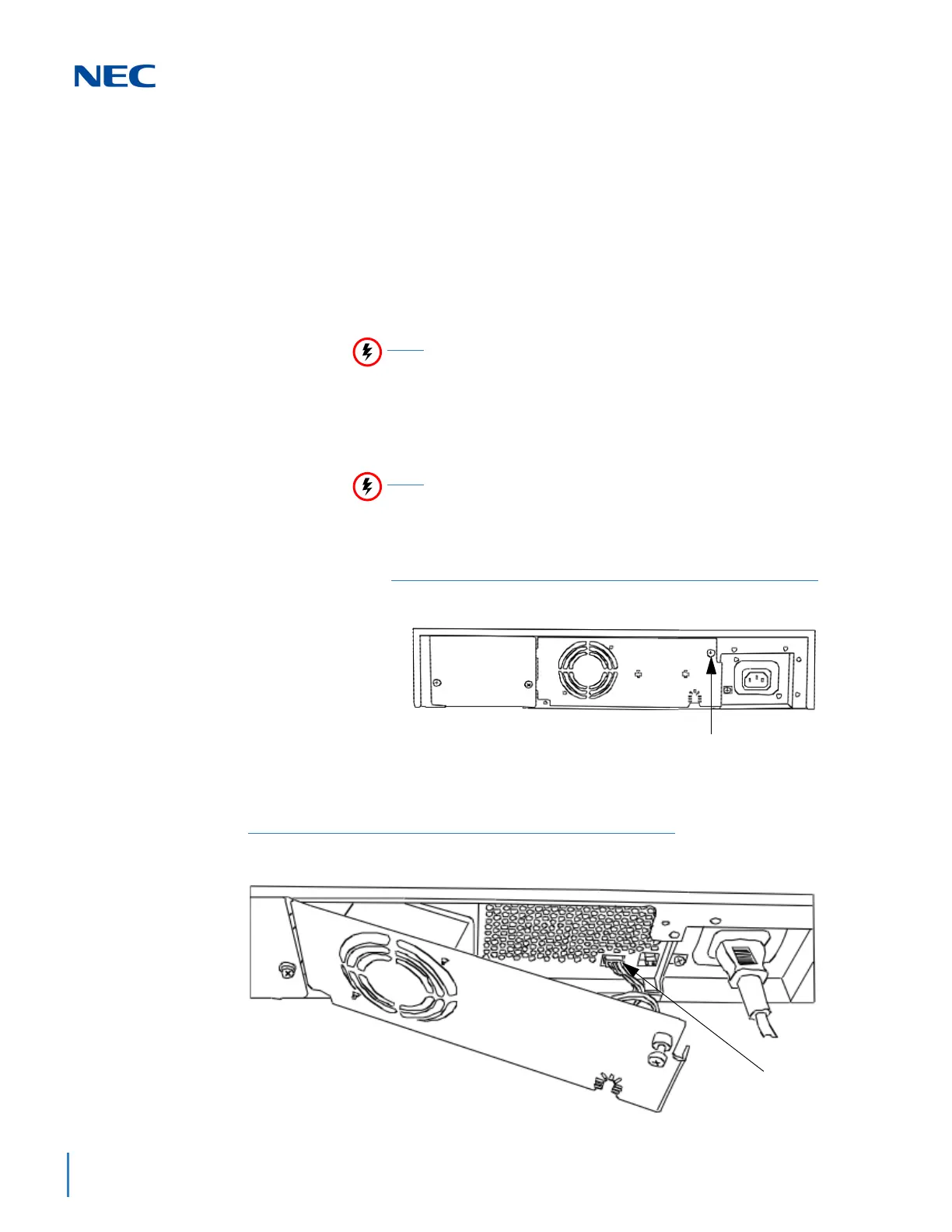

Figure 3-151 19” Chassis Access Panel
Figure 3-152 Opening Chassis Access Panel (19” Chassis)
To Next Page
