Issue 3.0
4-50 Installing the SV9100 Blades

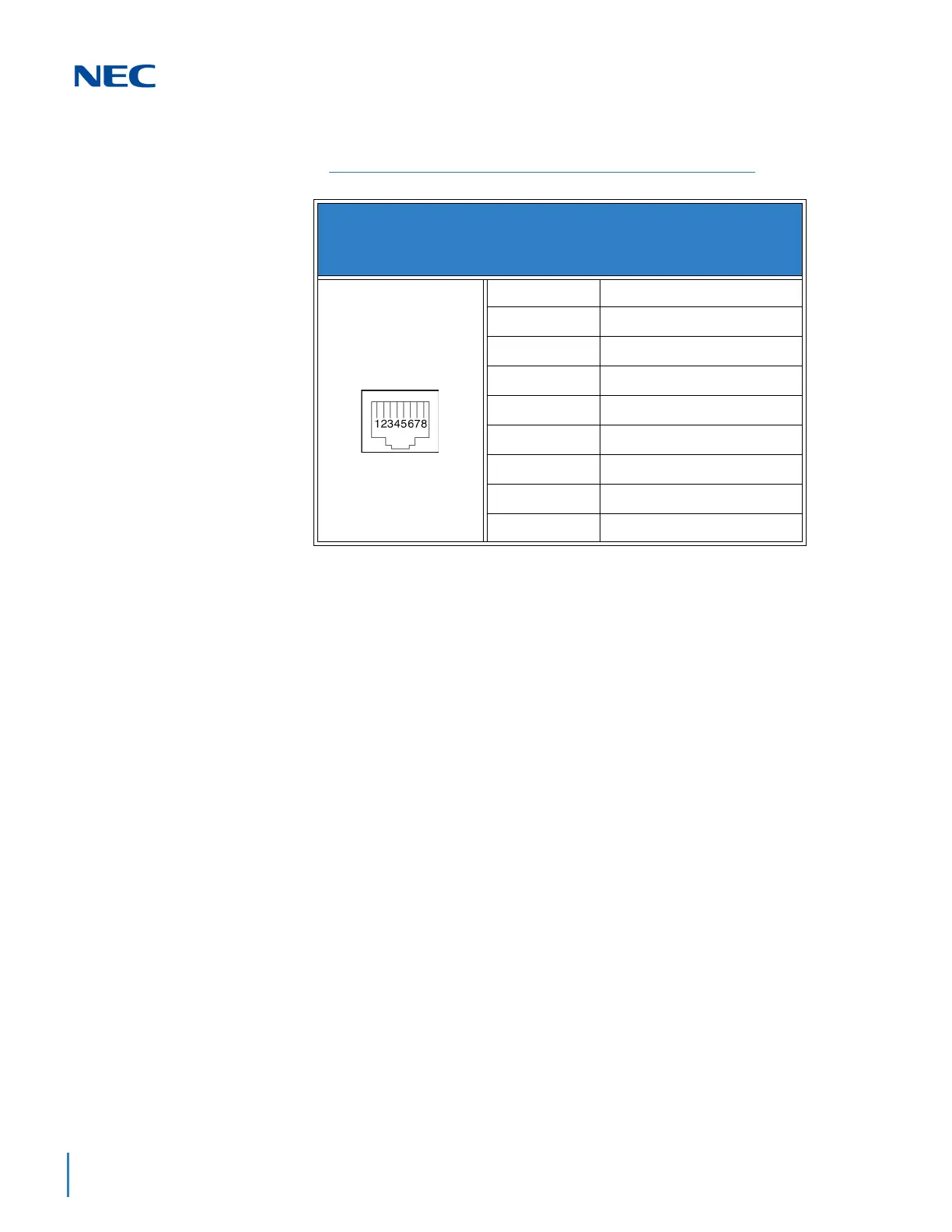

Table 4-20 GCD-4LCF/GCD-8LCF RJ-61 Cable Connector Pin-Outs
RJ-61 Cable Connector
GCD-4LCF – J3 (ports 1~4)
GCD-8LCF – J3 (ports 1~4), J4 (ports 5~8)
Pin No. Connection
1 T4 (Tip for port 4)
2 T3 (Tip for port 3)
3 T2 (Tip for port 2)
4 R1 (Ring for port 1)
5 T1 (Tip for port 1)
6 R2 (Ring for port 2
7 R3 (Ring for port 3)
8 R4 (Ring for port 4)
