Issue 3.0
4-64 Installing the SV9100 Blades

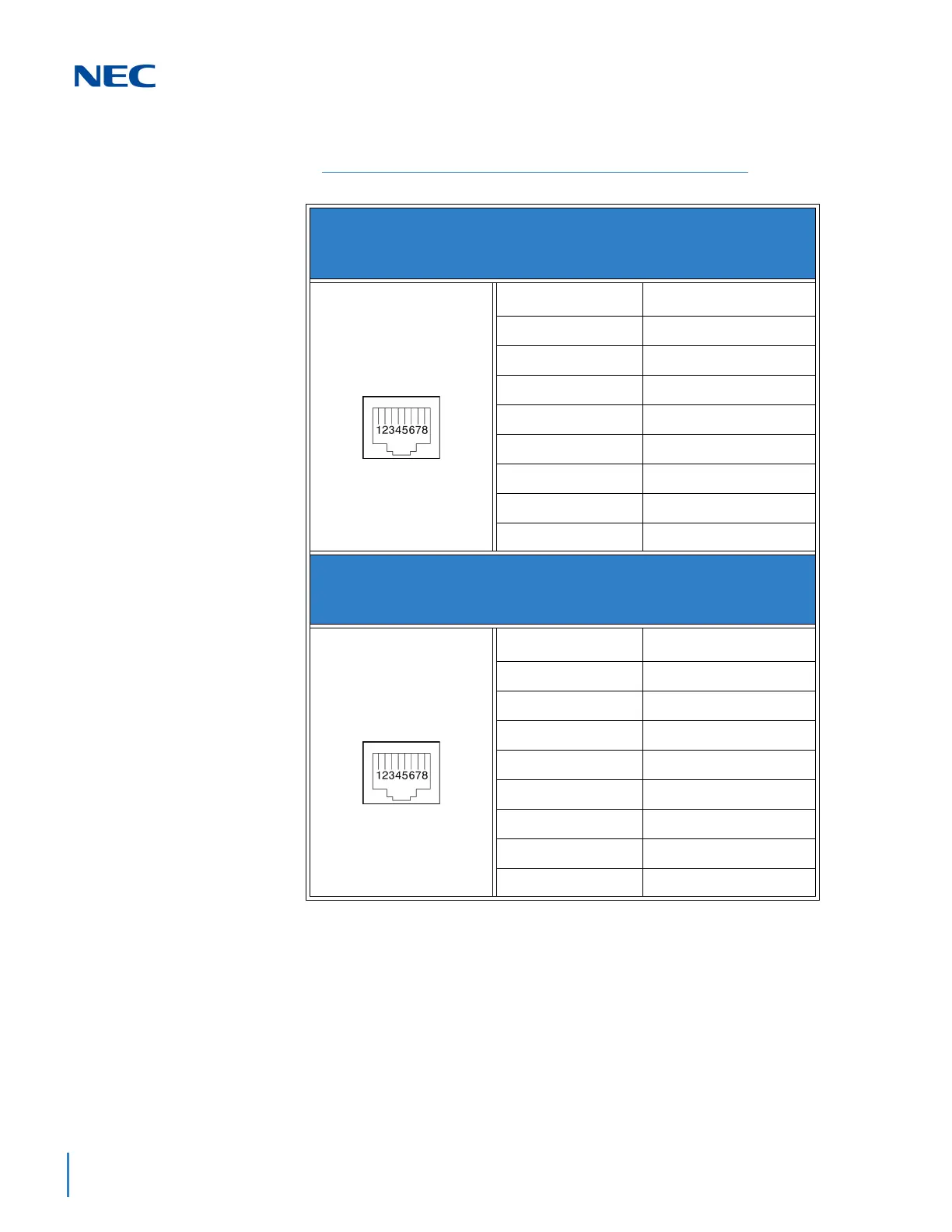

Table 4-26 GPZ-4COTF RJ-61 Cable Connector Pin-Outs
RJ-61 Cable Connector
CN2, Trunks – Connecting to GCD-4COTB Blade
The CN2 connector is polarity sensitive (tip-to-tip, ring-to-ring)
Pin No. Connection
1 Circuit 8 – Tip
2 Circuit 7 – Tip
3 Circuit 6 – Tip
4 Circuit 5 – Ring
5 Circuit 5 – Tip
6 Circuit 6 – Ring
7 Circuit 7 – Ring
8 Circuit 8 – Ring
RJ-61 Cable Connector
CN2, Trunks – Connecting to GCD-LTA Blade
The CN2 connector is polarity sensitive (tip-to-tip, ring-to-ring)
Pin No. Connection
1 Circuit 4 – Tip
2 Circuit 3 – Tip
3 Circuit 2 – Tip
4 Circuit 1 – Ring
5 Circuit 1 – Tip
6 Circuit 2 – Ring
7 Circuit 3 – Ring
8 Circuit 4 – Ring
