Migrating from an S8700 or S8710 Media Server to an S8720 Media Server
1004 Upgrading, Migrating, and Converting Media Servers and Gateways
Note:
Note: Always wear an antistatic wrist strap when working inside the media server.
4. Disconnect any internal or external cables connected to any existing circuit packs.
5. Lift the PCI riser cage thumbscrews (1, Removing the PCI riser cage
on page 979) and turn
them counter-clockwise.
6. Remove the PCI riser cage (2).

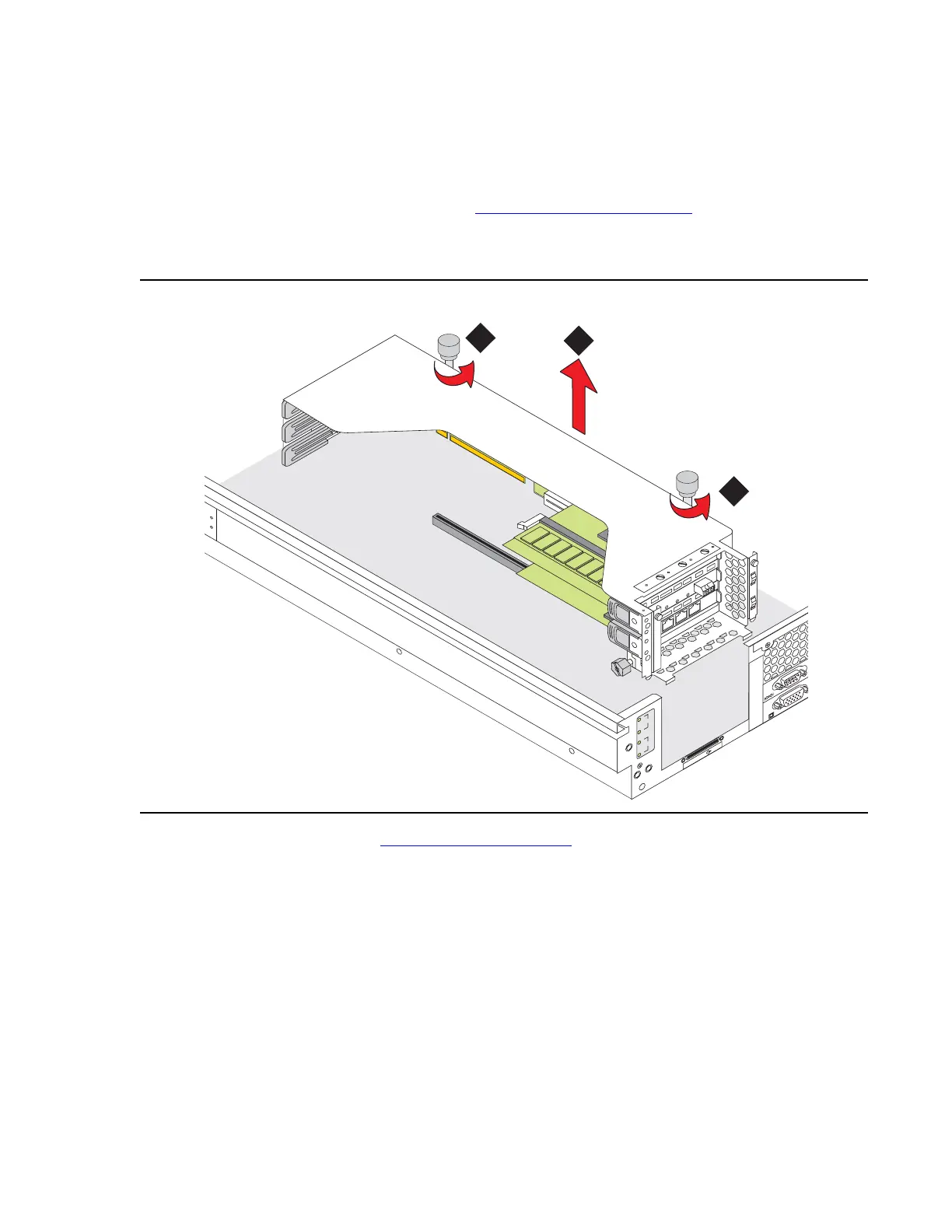

Figure 69: Removing the PCI riser cage
7. Push in the locking tab (1, Removing the DAL1 card on page 980).
8. Release the locking lever (2).
Note:
Note: Do not use any tools when performing the next step.
9. Using a rocking motion, carefully pull the DAL1 card straight out from the PCI riser cage (3).
2
3
VDCI
1
2
3
1
3
3
M
G
z
1
0
0
M
G
z
1
0
0
M
G
z
h3df87cr LAO 102505
DAL1
DUP
MEMORY
RECEIVE
MODE
LINC
SYNC
TRANS
MODE
LINC
ACTIVE
2
1
1
