On the second S8720 Media Server
Issue 2.1 June 2006 1009

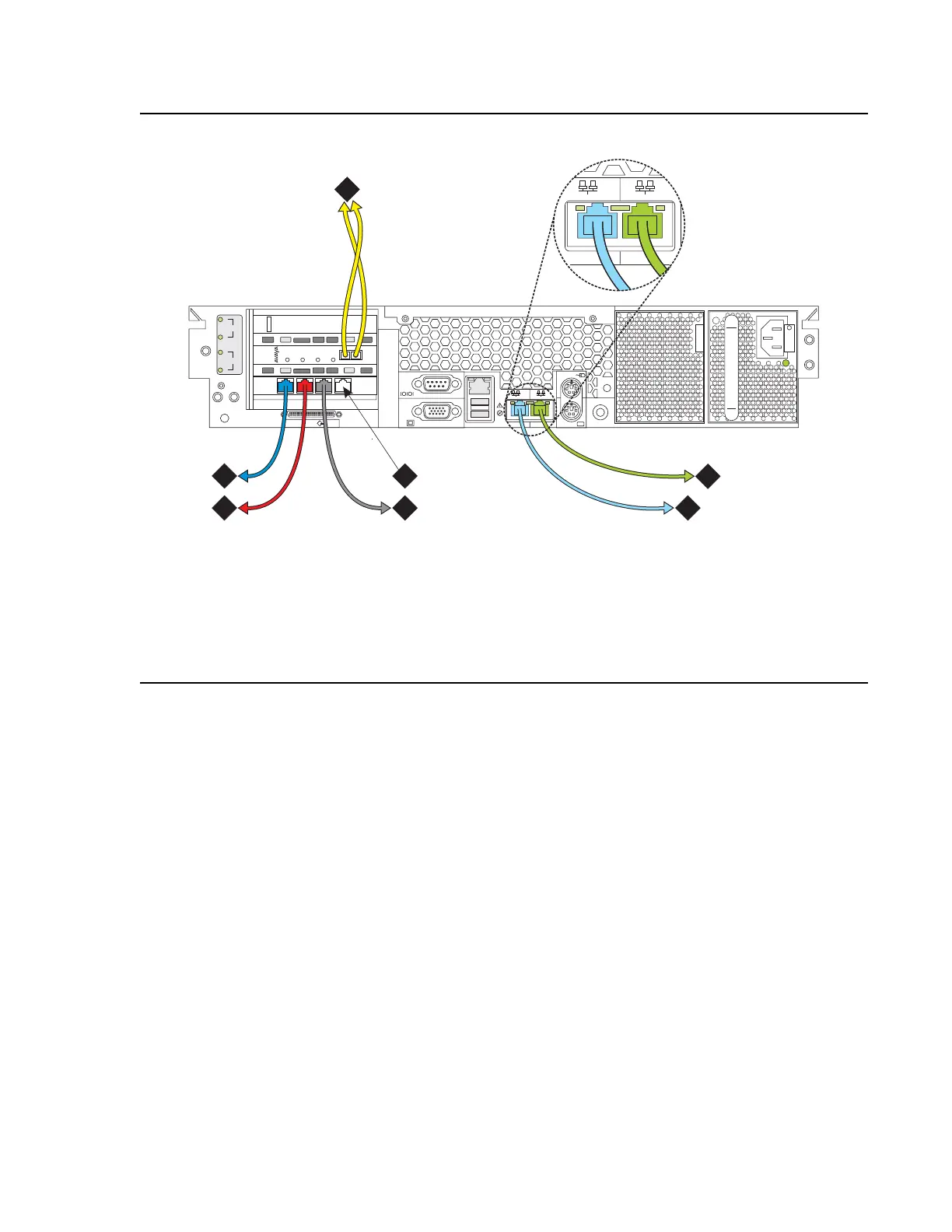

Figure 72: Duplication and control network cables for hardware duplication
Figure notes:
1. CNA (also LAN for nondedicated control network) — Eth0
2. Services port — Eth1
3. Duplication cable (crossover) — Eth2
4. CNB (if used) — Eth3
5. LAN (if dedicated control network) — Eth4
6. CNC (if used) — Eth5
7. Fiber duplication cable
cadsnetc LAO 110805
2
3
iLO
VDCI
1
2
3
133 MGz
100 MGz
100 MGz
UID
2 1
2
1
4
3
5
6
2 1
DAL1
DUP
MEMORY
RECEIVE
MODE
LINC
SYNC
TRANS
MODE
LINC
ACTIVE
7
