Token
Packet
Empty
PBS
CBS
Bucket P Bucket C
Yellow Color-Marking
Tokens are regenerated
based on PIR faster than CIR
Tokens are regenerated
based on CIR
Token
If the bucket C is empty, the tokens in
the bucket P are decremented by the
size of the packet

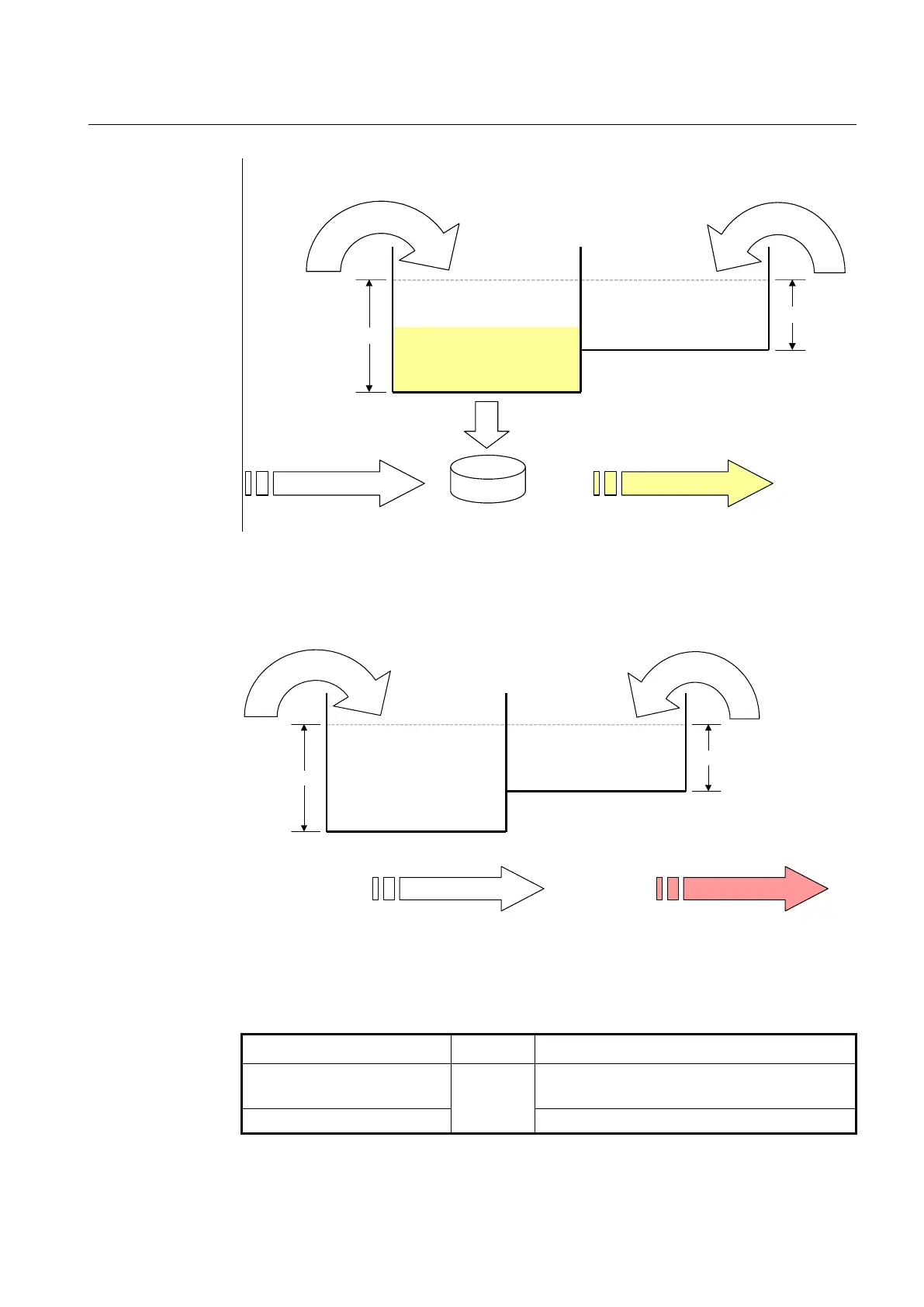

Fig. 7.8 Behavior of trTCM (2)
Empty
Packet
Empty
PBS
CBS
Bucket P Bucket C
Red Color-Marking
Tokens are regenerated
based on PIR faster than CIR
Tokens are regenerated
based on CIR
If the bucket P is empty,
a packet is marked red
Fig. 7.9 Behavior of trTCM (3)
To set the metering mode, use the following command.
color mode {srtcm | trtcm} blind
Sets the metering mode.
blind: color-blind mode
Sets to the default setting.
In the color-blind mode, the meter assumes that the packet stream is uncolored. In the
