MSTP Configuration

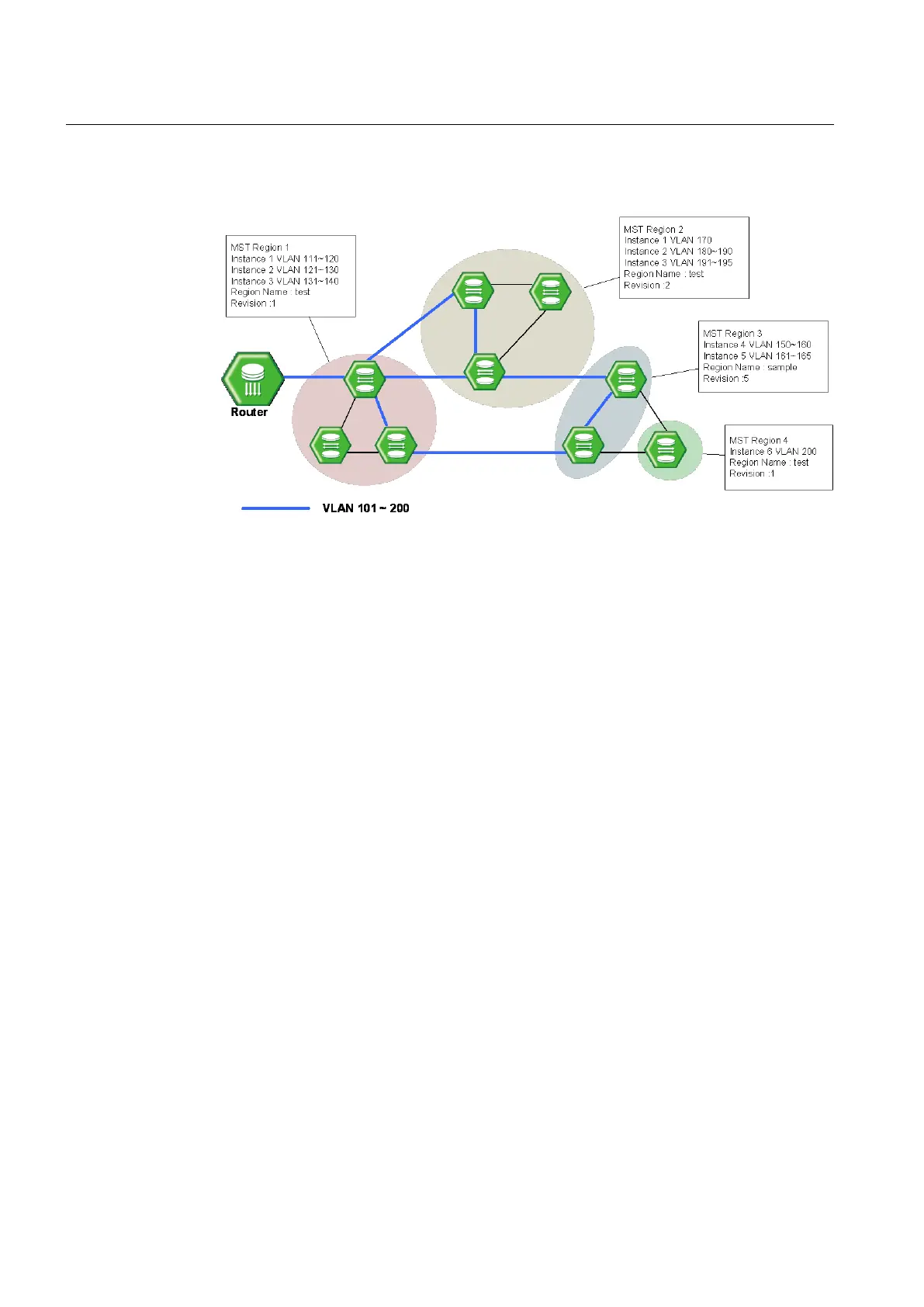

Fig. 8.28 Example of Layer 2 Network Design in MSTP Environment
The following is an example of configuring MSTP in the switch.
SWITCH(bridge)# spanning-tree
SWITCH(bridge)# spanning-tree mode mst
SWITCH(bridge)# spanning-tree mst configuration
SWITCH(config-mst)# instance 2 vlan 1-50
SWITCH(config-mst)# name test
SWITCH(config-mst)# revision 1
SWITCH(config-mst)# apply
SWITCH(config-mst)# exit
SWITCH(bridge)# show spanning-tree mst configuration
name test
revision 1
instance vlans
--------------------------------------------------------------------
CIST 51-4094
2 1-50
--------------------------------------------------------------------
SWITCH(bridge)#
