8.7 Virtual Router Redundancy Protocol (VRRP)
Virtual router redundancy protocol (VRRP) is configuring Virtual router (VRRP Group)
consisted of VRRP routers to prevent network failure caused by one dedicated router.
You can configure maximum 255 VRRP routers in VRRP group of V5808. First of all,
decide which router plays a roll as Master Virtual Router. The other routers will be Backup
Virtual Routers. After you give priority to these backup routers, the router serves for
Master Virtual Router when there are some problems in Master Virtual router. When you
configure VRRP, configure all routers in VRRP with unified Group Id and assign unified
Associated IP to them. After that, decide Master Virtual Router and Backup Virtual Router.
A router that has the highest priority is supposed to be Master and Backup Virtual Routers
also get orders depending on priority.

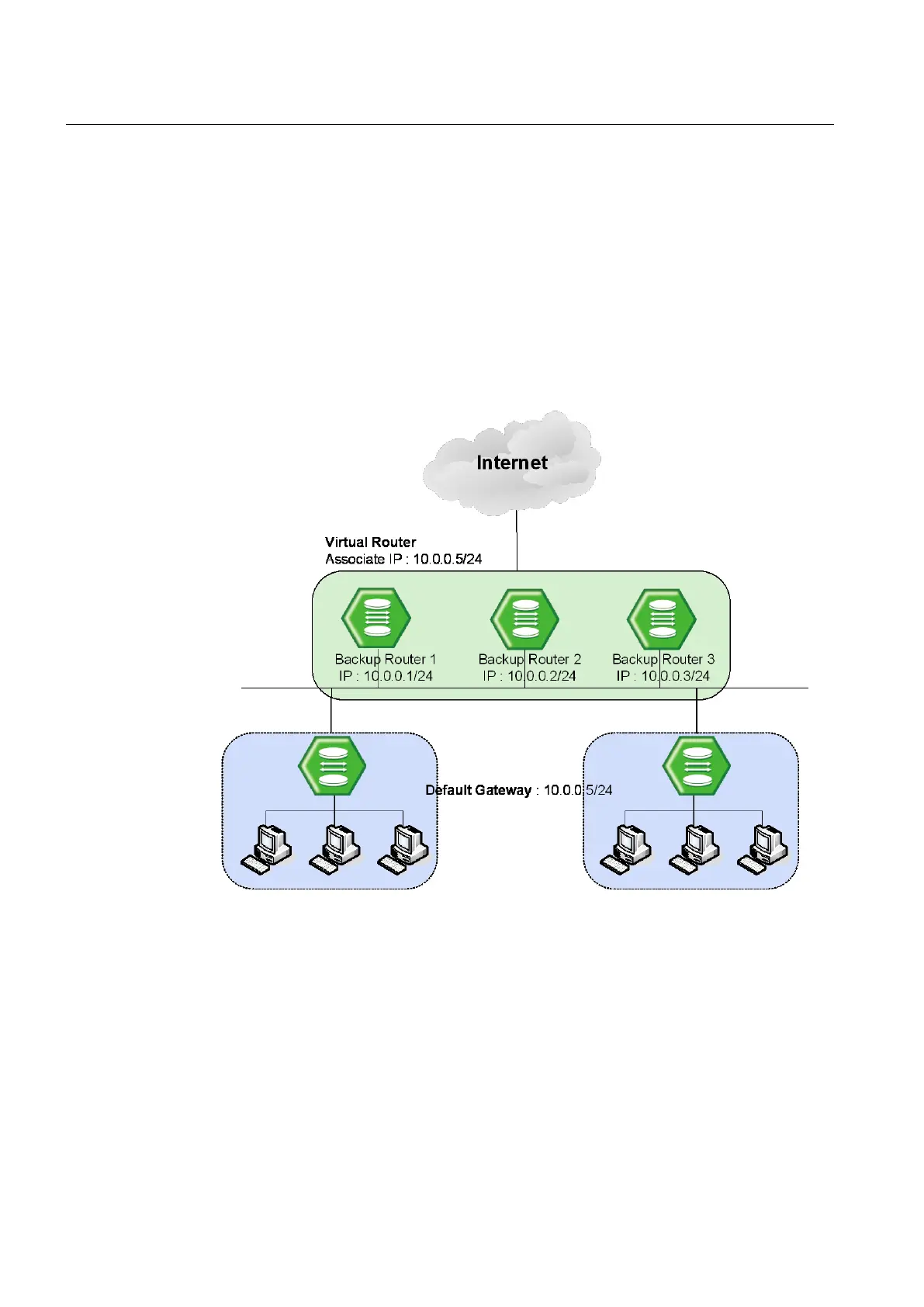

Fig. 8.36 VRRP Operation
In case routers have same priorities, then a router, which has higher IP address, gets the
precedence. Fig. 8.36 shows an example of configuring three routers which have IP
addresses, 10.0.0.1/24, 10.0.0.2/24 and 10.0.0.3/24 for each one as Virtual router by
Associated IP, 10.0.0.5/24. If these three routers have same Priority, a router, which has
the highest IP, address, 10.0.0.3/24 is decided to be Master Router. Also, switches and
PCs connected to the Virtual Router are to have IP address of Virtual Router, 10.0.0.5/24
as default gateway.
