<Layer 3 SWITCH1: IP Address - 10.0.0.1/24>
SWTICH1(config)# router vrrp default 1
SWITCH1(config-router)# associate 10.0.0.5
SWITCH1(config-router)# vr-priority 101
SWITCH1(config-router)# exit
SWITCH1(config)# show vrrp
default - virtual router 1
----------------------------------------------
state backup
virtual mac address 00:00:5E:00:01:01
advertisement interval 1 sec
preemption enabled
priority 101
master down interval 3.624 sec
[1] associate address : 10.0.0.5
<Layer 3 SWITCH 2: IP Address - 10.0.0.2/24>
SWTICH2(config)# router vrrp default 1
SWITCH2(config-router)# associate 10.0.0.5
SWITCH1(config-router)# vr-priority 102
SWITCH2(config-router)# exit
SWITCH2(config)# show vrrp
default - virtual router 1
----------------------------------------------
state master
virtual mac address 00:00:5E:00:01:01
advertisement interval 1 sec
preemption enabled
priority 102
master down interval 3.620 sec
[1] associate address : 10.0.0.5
By default, Priority of the V5808 is configured as “100”. Therefore, unless you configure
specific Priority, this switch becomes Master Router because a device, which has lower IP
address, has higher precedence.

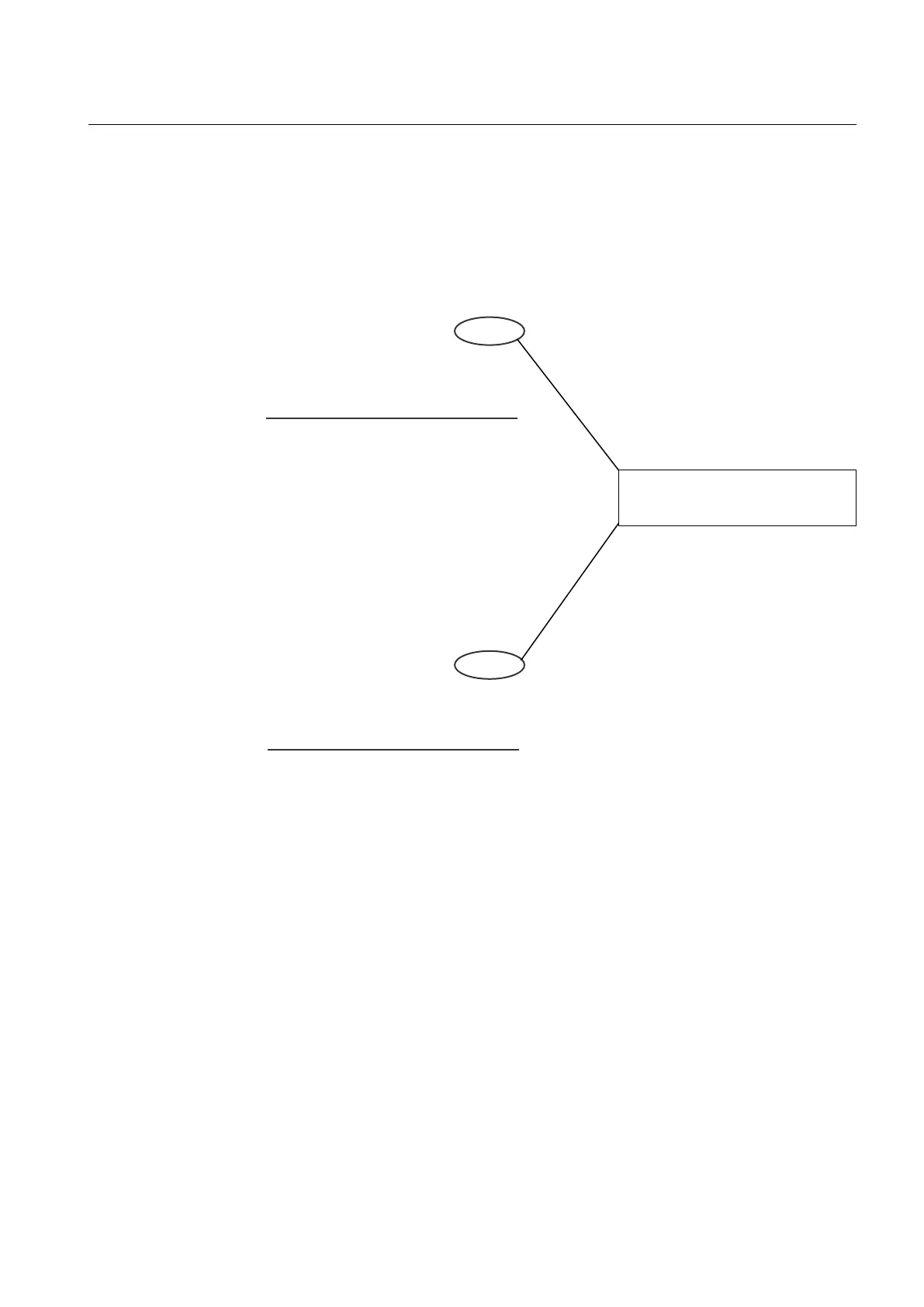

Also, when there are more than two Backup Routers, IP addresses are compared to
decide order. The following is an example of configuring Master Router and Backup
Router by comparing IP addresses: Virtual Routers, Layer 3 SWITCH 1 – 10.0.0.1 and
Layer 3 SWITCH 2 – 10.0.0.2.
SWITCH 2 with higher priority
is configured as Master.
