Chapter 44 Configuring Quality of Service
Configuring QoS on a Standalone Supervisor Engine 6-E/6L-E or Supervisor Engine 7-E/7L-E/8-E

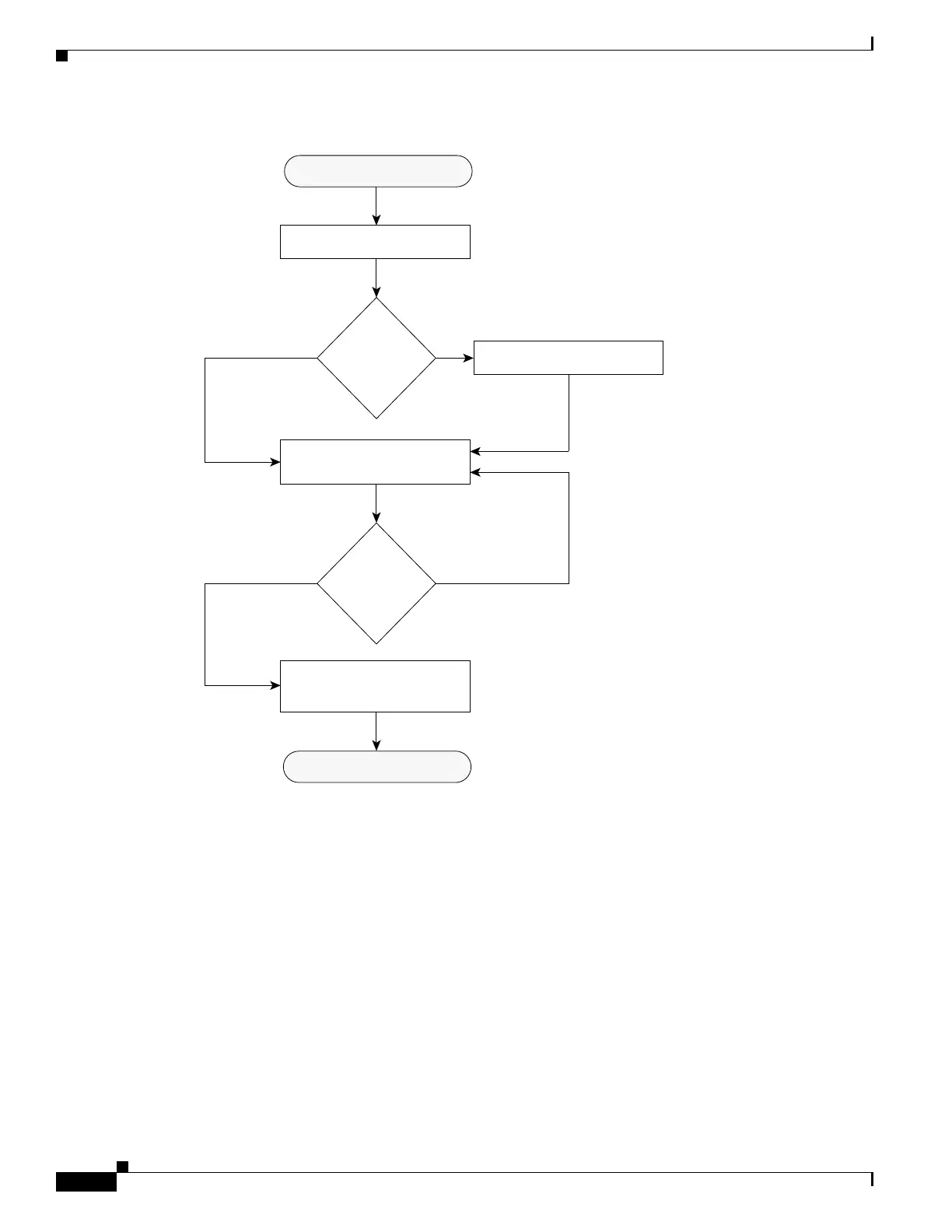

Figure 44-5 Traffic marking Procedure Flowchart
Restrictions for Marking Network Traffic
The following restrictions apply to packet marking actions:
• QoS-group can be marked only in the input direction and can only support unconditional explicit
marking.
• Only explicit marking is supported for policer-based marking.
Multi-attribute Marking Support
The supervisor engine can mark more than one QoS attribute of a packet matching a class of traffic. For
example, DSCP, CoS, and QoS-group can all be set together, using either explicit or tablemap-based
marking.
127073
Create a class map
Using a
table map?
No Yes
No Yes
Create a policy map
Attach policy map(s)
to interface
Create a table map
Start
Finish
Create
additional
policy
maps?

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
