Cisco Catalyst 4500 Series Software Configuration Guide

5-14
Catalyst 4500 Series Switch, Cisco IOS Software Configuration Guide - Cisco IOS XE 3.9.xE and IOS 15.2(5)Ex
Chapter 5 Configuring Virtual Switching Systems
Understanding Virtual Switching Systems
Each MEC can optionally be configured to support either PAgP or LACP. These protocols run only on
the VSS Active switch. PAgP or LACP control packets destined for an MEC link on the VSS Standby
switch are sent across VSL.
An MEC can support up to eight physical links, which can be distributed in any proportion between the
VSS Active and VSS Standby switch.

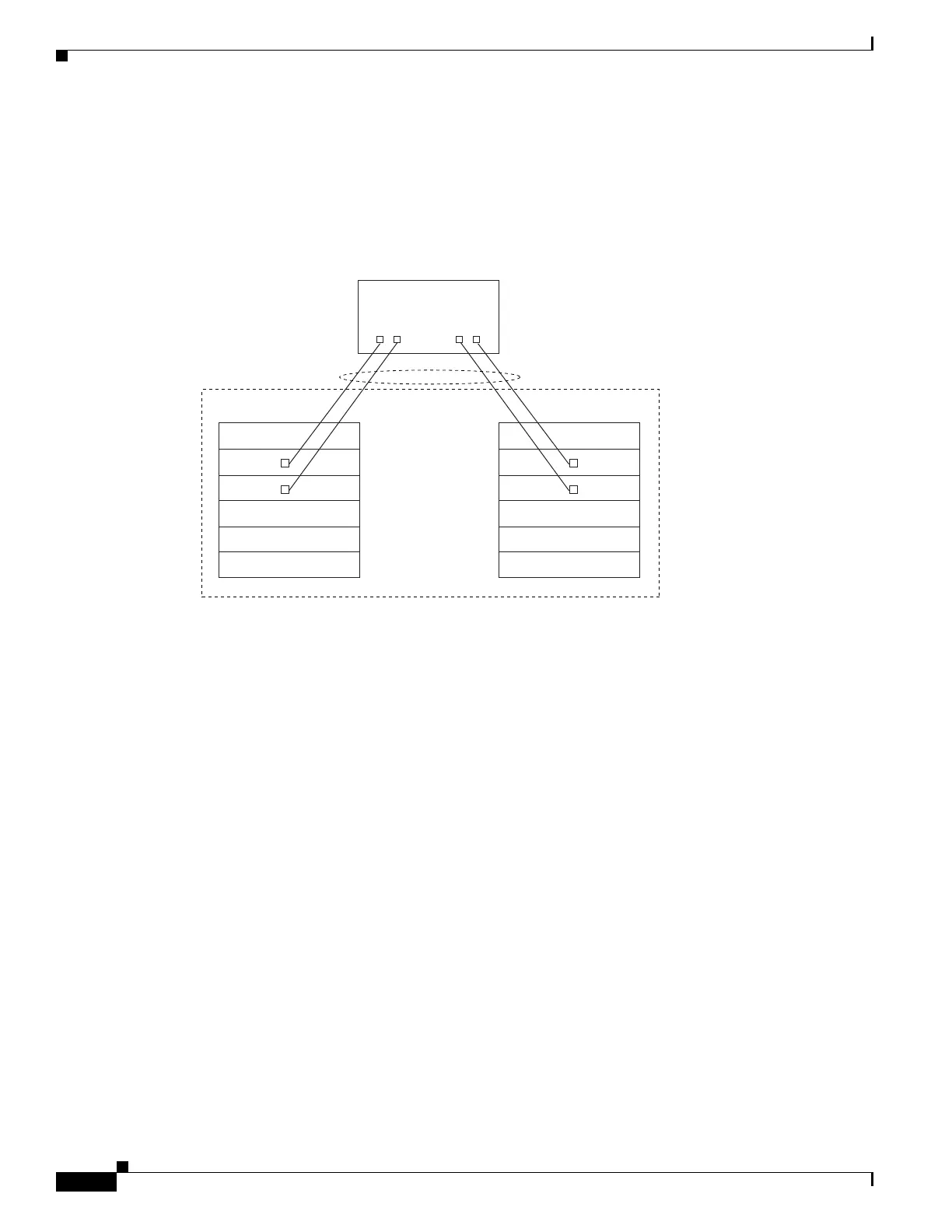

Figure 5-7 MEC Topology
MEC Failure Scenarios
We recommend that you configure the MEC with at least one link to each switch. This configuration
conserves VSL bandwidth (traffic egress link is on the same switch as the ingress link), and increases
network reliability (if one VSS supervisor engine fails, the MEC is still operational).
The following sections describe possible failures and the resulting impacts:
• Single MEC Link Failure, page 5-14
• All MEC Links to the VSS Active Switch Fail, page 5-14
• All MEC Links to the VSS Standby Switch Fail, page 5-15
• All MEC Links Fail, page 5-15
• VSS Standby Switch Failure, page 5-15
• VSS Active Switch Failure, page 5-15
Single MEC Link Failure
If a link within the MEC fails (and other links in the MEC are still operational), the MEC redistributes
the load among the operational links, as in a regular port.
All MEC Links to the VSS Active Switch Fail
If all links to the VSS Active switch fail, the MEC becomes a regular EtherChannel with operational
links to the VSS Standby switch.
Virtual switch
Supervisor
engine
Supervisor
engine
Active chassis Standby chassis
181327
Router, switch
or server
MEC
