Cisco Catalyst 4500 Series Software Configuration Guide

13-2
Catalyst 4500 Series Switch, Cisco IOS Software Configuration Guide - Cisco IOS XE 3.9.xE and IOS 15.2(5)Ex
Chapter 13 Configuring Cisco NSF with SSO Supervisor Engine Redundancy
About NSF with SSO Supervisor Engine Redundancy
About Cisco IOS NSF-Aware and NSF-Capable Support
Cisco IOS Nonstop Forwarding (NSF) has two primary components:
• NSF-awareness—If neighboring router devices detect that an NSF router can still forward packets
when a supervisor engine switchover happens, this capability is referred to as NSF-awareness. Cisco
IOS enhancements to the Layer 3 routing protocols (OSPF, BGP, EIGRP and IS-IS) are designed to
prevent route-flapping so that the CEF routing table does not time out or the NSF router does not
drop routes. An NSF-aware router helps to send routing protocol information to the neighboring
NSF router.
Note OSPF Version2 fast hellos generate false alarms. We recommend that you use Bidirectional Forwarding
Detection (BFD) instead.
• NSF-capability—NSF works with SSO to minimize the amount of time that a Layer 3 network is
unavailable following a supervisor engine switchover by continuing to forward IP packets.
Reconvergence of Layer 3 routing protocols (BGP, EIGRP, OSPF v2, and IS-IS) is transparent to the
user and happens automatically in the background. The routing protocols recover routing
information from neighbor devices and rebuild the Cisco Express Forwarding (CEF) table.
Note NSF does not support IPv6.
Note NSF- capable devices include Catalyst 4500 series switches, Catalyst 6500 series switches, Cisco 7500
series routers, Cisco 10000 series routers, and Cisco 12000 series routers.
A typical topology for NSF and NSF-aware routers is given below.

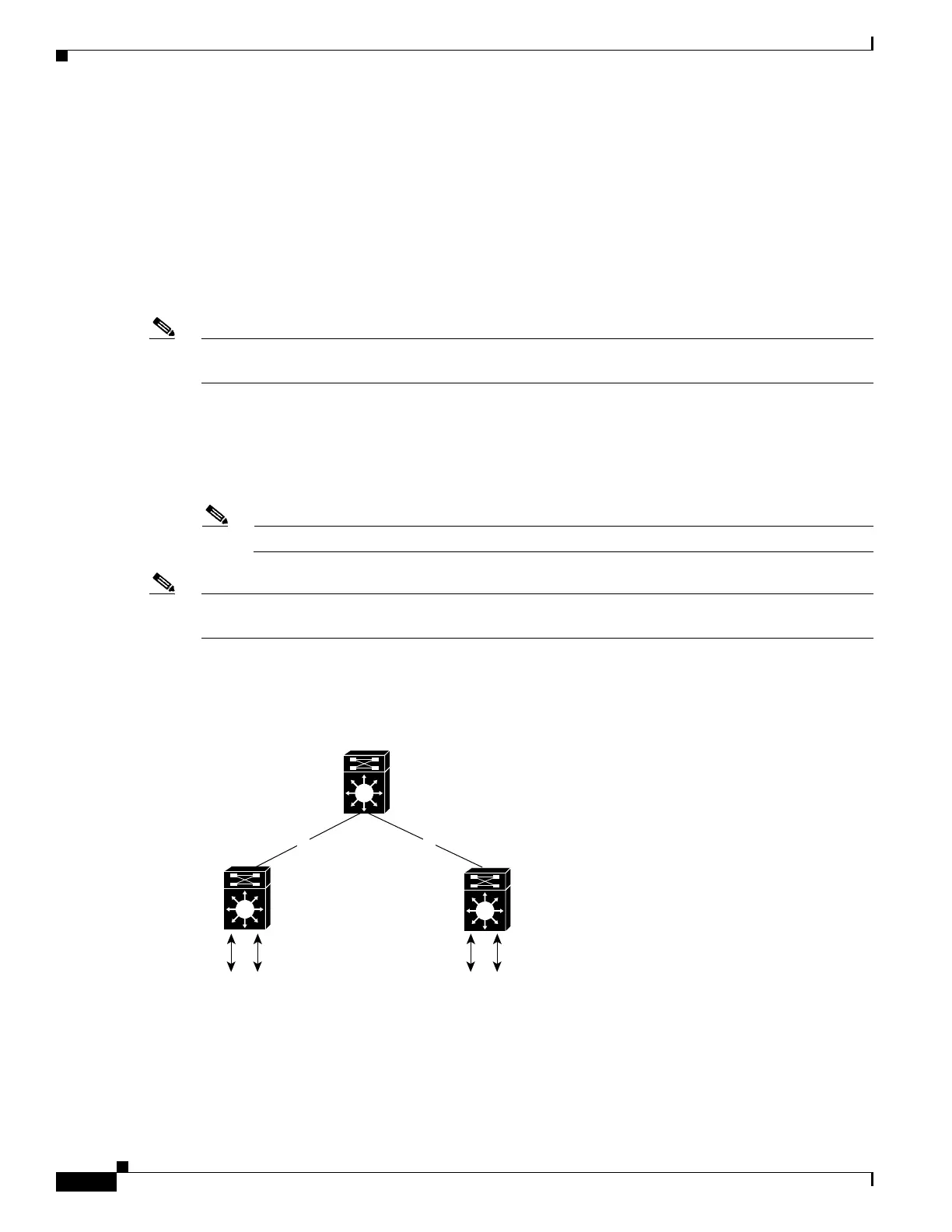

Figure 13-1 Topology for NSF and NSF-Capable Switches
Si
Si
Si
22
Catalyst 6500 NSF
Catalyst 4500
NSF-Capable
Catalyst 4500
NSF-Capable
147986

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
