Cisco Catalyst 4500 Series Software Configuration Guide

4-3
Catalyst 4500 Series Switch, Cisco IOS Software Configuration Guide - Cisco IOS XE 3.9.xE and IOS 15.2(5)Ex
Chapter 4 Administering the Switch
Managing the System Time and Date

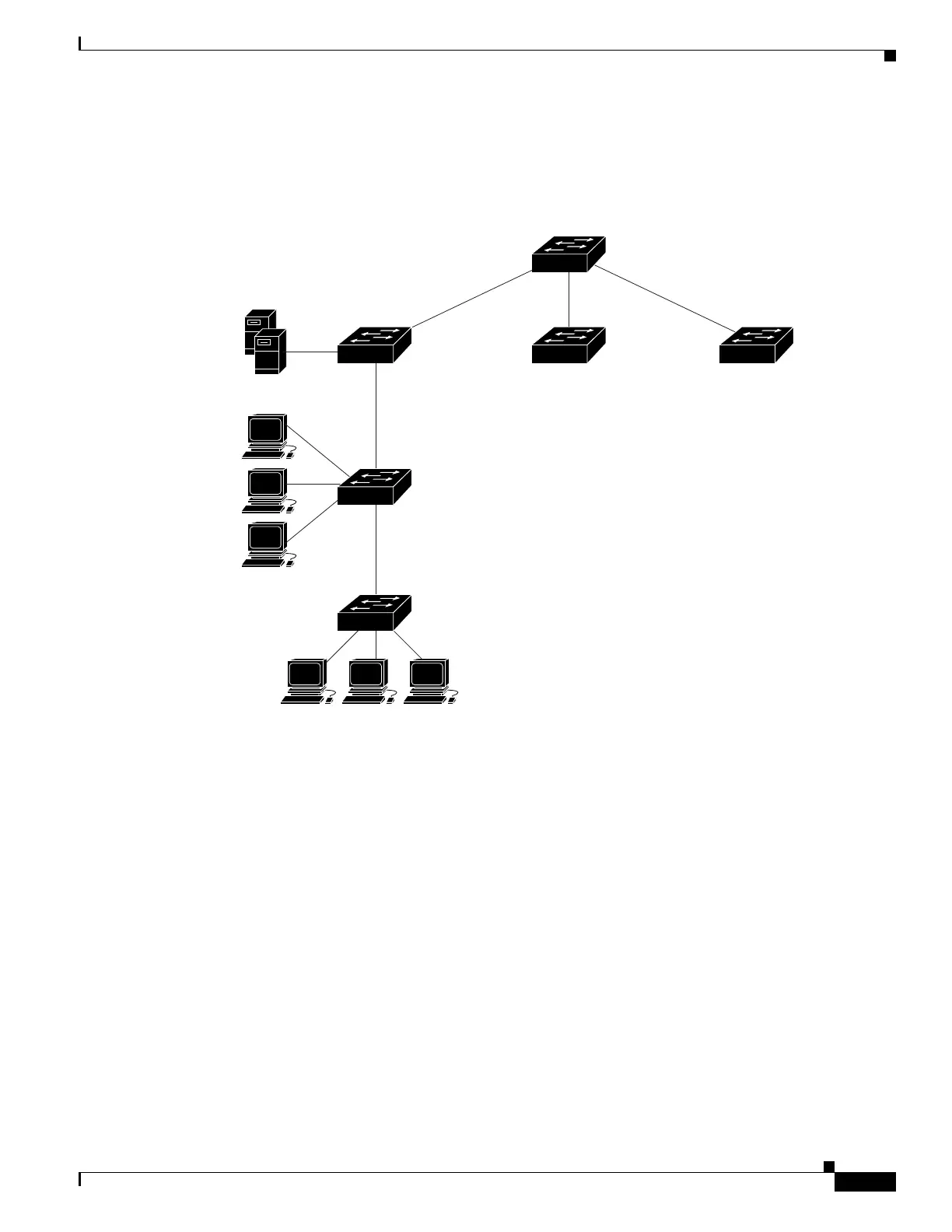

Figure 4-1 shows a typical network example using NTP. Switch A is the NTP master, with Switches B,
C, and D configured in NTP server mode, in server association with Switch A. Switch E is configured
as an NTP peer to the upstream and downstream switches, Switch B and Switch F, respectively.
Figure 4-1 Typical NTP Network Configuration
If the network is isolated from the Internet, Cisco’s implementation of NTP allows a device to act as if
it is synchronized through NTP, when it is not. Other devices then synchronize to that device through
NTP.
NTP time overrides the time set by any other method.
Several manufacturers include NTP software for their host systems, and a public version for systems
running UNIX and its various derivatives is also available. This software allows host systems to be
synchronized as well.
Configuring NTP
These sections contain this configuration information:
• Default NTP Configuration, page 4-4
• Configuring NTP Authentication, page 4-4
• Configuring NTP Associations, page 4-6
• Configuring NTP Broadcast Service, page 4-7
• Configuring NTP Access Restrictions, page 4-8
Switch F
Switch A
Workstations
Workstations
Local
workgroup
servers
101349
Switch B
Switch E
Switch C Switch D

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
