49-4
Catalyst 4500 Series Switch, Cisco IOS Software Configuration Guide - Cisco IOS XE 3.9.xE and IOS 15.2(5)Ex
Chapter 49 Configuring 802.1X Port-Based Authentication
About 802.1X Port-Based Authentication
Authentication Initiation and Message Exchange
The switch or the client can initiate authentication. If you enable authentication on a port by using the
authentication port-control auto interface configuration command (dot1x port-control auto command in Cisco IOS Release
12.2(46)SG and earlier releases), the switch must initiate authentication when it determines that the port link state has changed.
It then sends an EAP-request/identity frame to the client to request its identity (typically, the switch sends an initial
identity/request frame followed by one or more requests for authentication information). Upon receipt of the frame, the client
responds with an EAP-response/identity frame.
However, if during bootup, the client does not receive an EAP-request/identity frame from the switch, the client can initiate
authentication by sending an EAPOL-start frame, which prompts the switch to request the client’s identity.
If 802.1X is not enabled or supported on the network access switch, any EAPOL frames from the client are dropped. If the
client does not receive an EAP-request/identity frame after three attempts to start authentication, the client transmits frames as
if the port is in the authorized state. A port in the authorized state means that the client was successfully authenticated. When
the client supplies its identity, the switch begins its role as the intermediary, passing EAP frames between the client and the
authentication server until authentication succeeds or fails. If the authentication succeeds, the switch port becomes authorized.

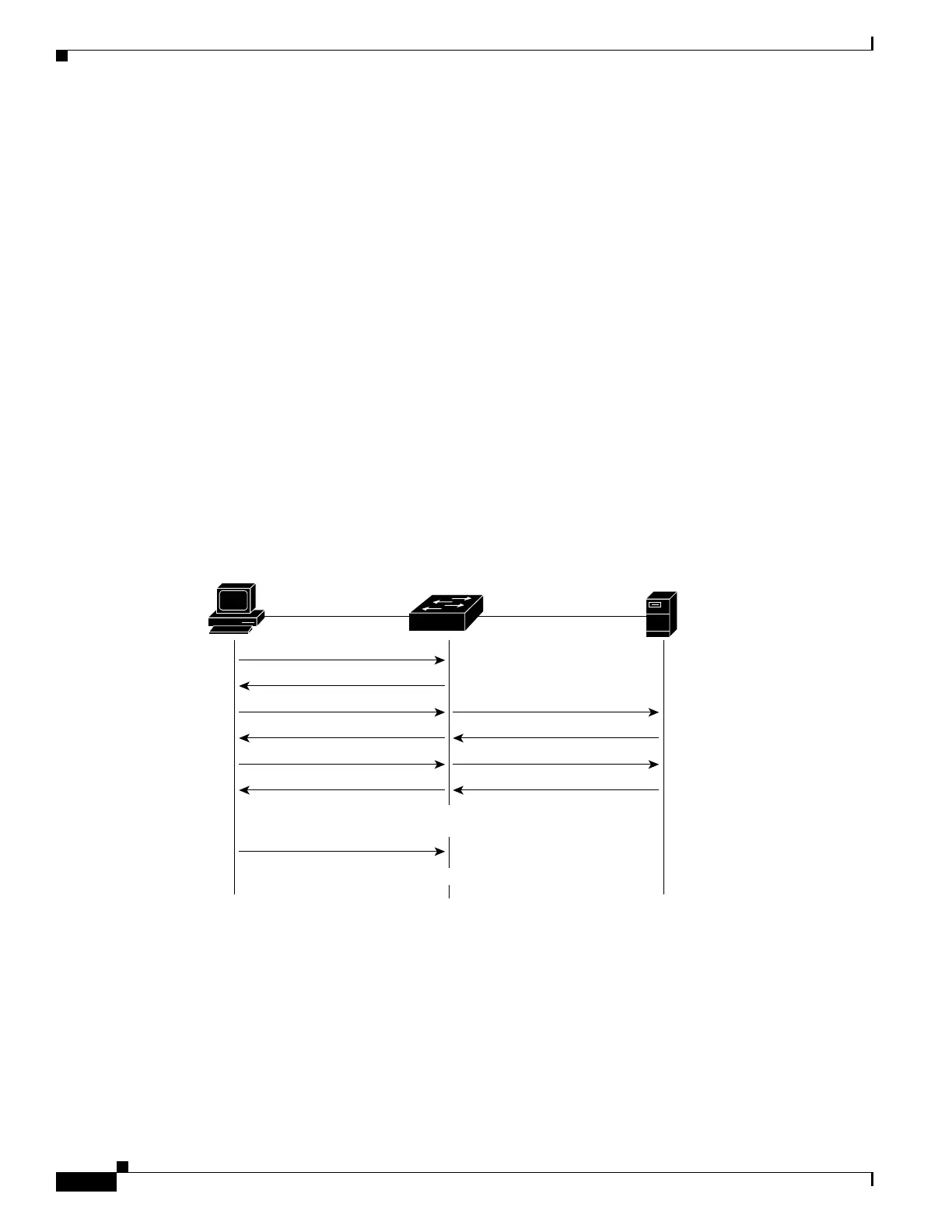

The specific exchange of EAP frames depends on the authentication method being used. Figure 49-2 shows a message
exchange that is initiated by the client using the One-Time Password (OTP) authentication method with an authentication
server.
Figure 49-2 Message Exchange
Ports in Authorized and Unauthorized States
The switch port state determines whether the client is granted access to the network. The port starts in the unauthorized state.
While in this state, the port disallows all ingress and egress traffic except for 802.1X protocol packets. When a client is
successfully authenticated, the port transitions to the authorized state, allowing all traffic for the client to flow normally.
Port Authorized
Port Unauthorized
Authenticator
EAPOL-Start
EAP-Request/Identity
EAP-Response/Identity
EAP-Request/OTP
EAP-Response/OTP
EAP-Success
RADIUS Access-Request
RADIUS Access-Challenge
RADIUS Access-Request
RADIUS Access-Accept
EAPOL-Logoff
94159
Supplicant Authentication
server
Client
Workstation
Catalyst 4500 Network
Access Switch
RADIUS
