Cisco Catalyst 4500 Series Software Configuration Guide

55-15
Catalyst 4500 Series Switch, Cisco IOS Software Configuration Guide - Cisco IOS XE 3.9.xE and IOS 15.2(5)Ex
Chapter 55 Configuring Port Security
Configuring Port Security on PVLAN Ports

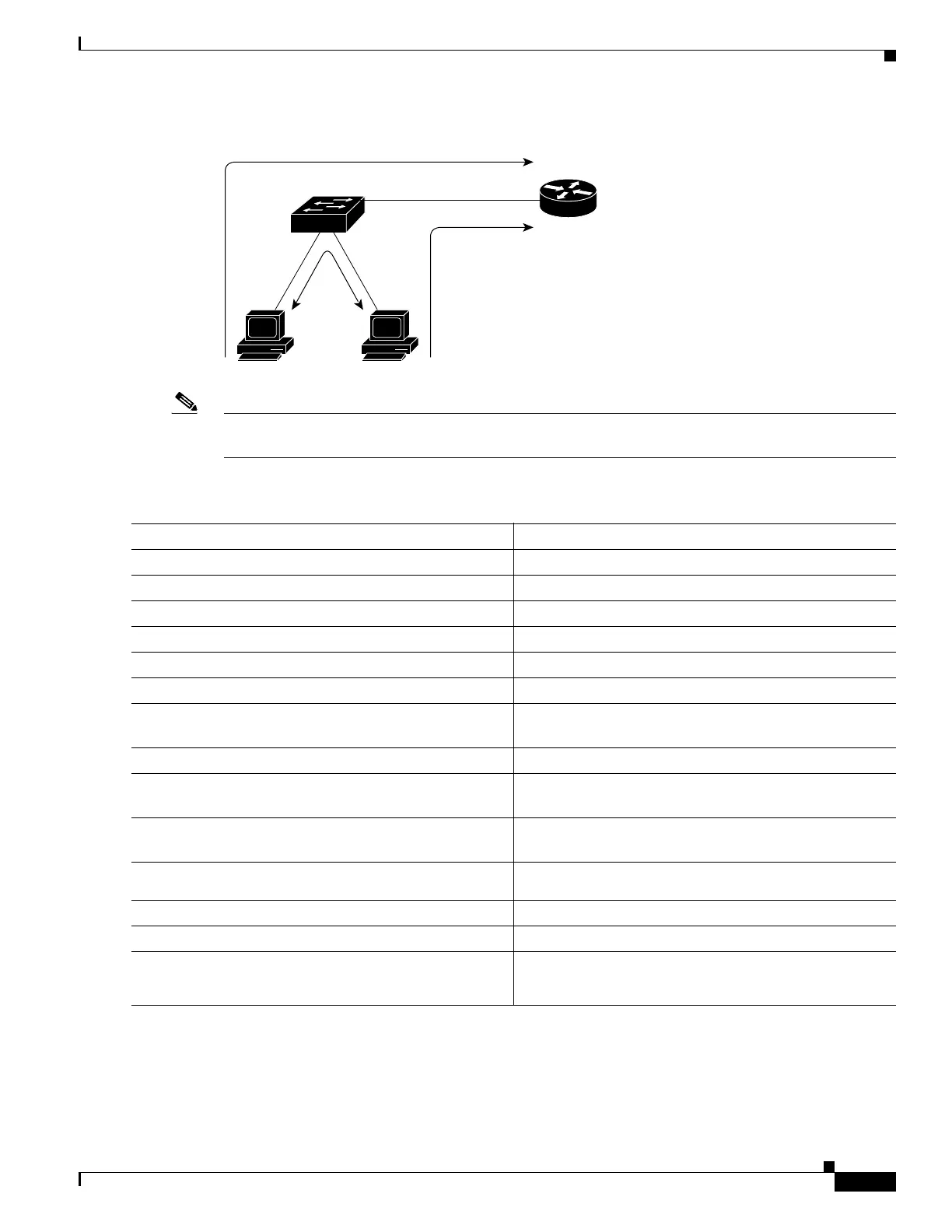

Figure 55-1 Port Security on Isolated Private VLAN Host Ports
Note Dynamic addresses secured on an isolated private VLAN host port on private VLANs are secured on the
secondary VLANs, and not primary VLANs.
To configure port security on an isolated private VLAN host port, perform this task:
Layer 2 switch
Router
PCPC
ab
Port security
implemented on
isolated VLAN
host ports a and b
140973
Promiscuous port
X
Command Purpose
Step 1
Switch# configure terminal
Enter global configuration mode.
Step 2
Switch(config)# vlan sec_vlan_id
Specifies a secondary VLAN.
Step 3
Switch(config-vlan)# private-vlan isolated
Sets the private VLAN mode to isolated.
Step 4
Switch(config-vlan)# exit
Returns to global configuration mode.
Step 5
Switch(config)# vlan pri_vlan_id
Specifies a primary VLAN.
Step 6
Switch(config-vlan)# private-vlan primary
Specifies the VLAN as the primary private VLAN.
Step 7
Switch(config-vlan)# private-vlan association
add sec_vlan_id
Creates an association between a secondary VLAN and a
primary VLAN.
Step 8
Switch(config-vlan)# exit
Returns to global configuration mode.
Step 9
Switch(config)# interface interface_id
Enters interface configuration mode and specifies the
physical interface to configure.
Step 10
Switch(config-if)# switchport mode private-vlan
host
Specifies that the ports with a valid private VLAN trunk
association become active host private VLAN trunk ports.
Step 11
Switch(config-if)# switchport private-vlan
host-association primary_vlan secondary_vlan
Establishes a host association on an isolated host port.
Step 12
Switch(config-if)# [no] switchport port-security
Enables port security on the interface.
Step 13
Switch(config-if)# end
Returns to privileged EXEC mode.
Step 14
Switch# show port-security address
interface interface_id
Switch# show port-security address
Verifies your entries.
