Chapter 17 Configuring VLANs, VTP, and VMPS
VLAN Membership Policy Server

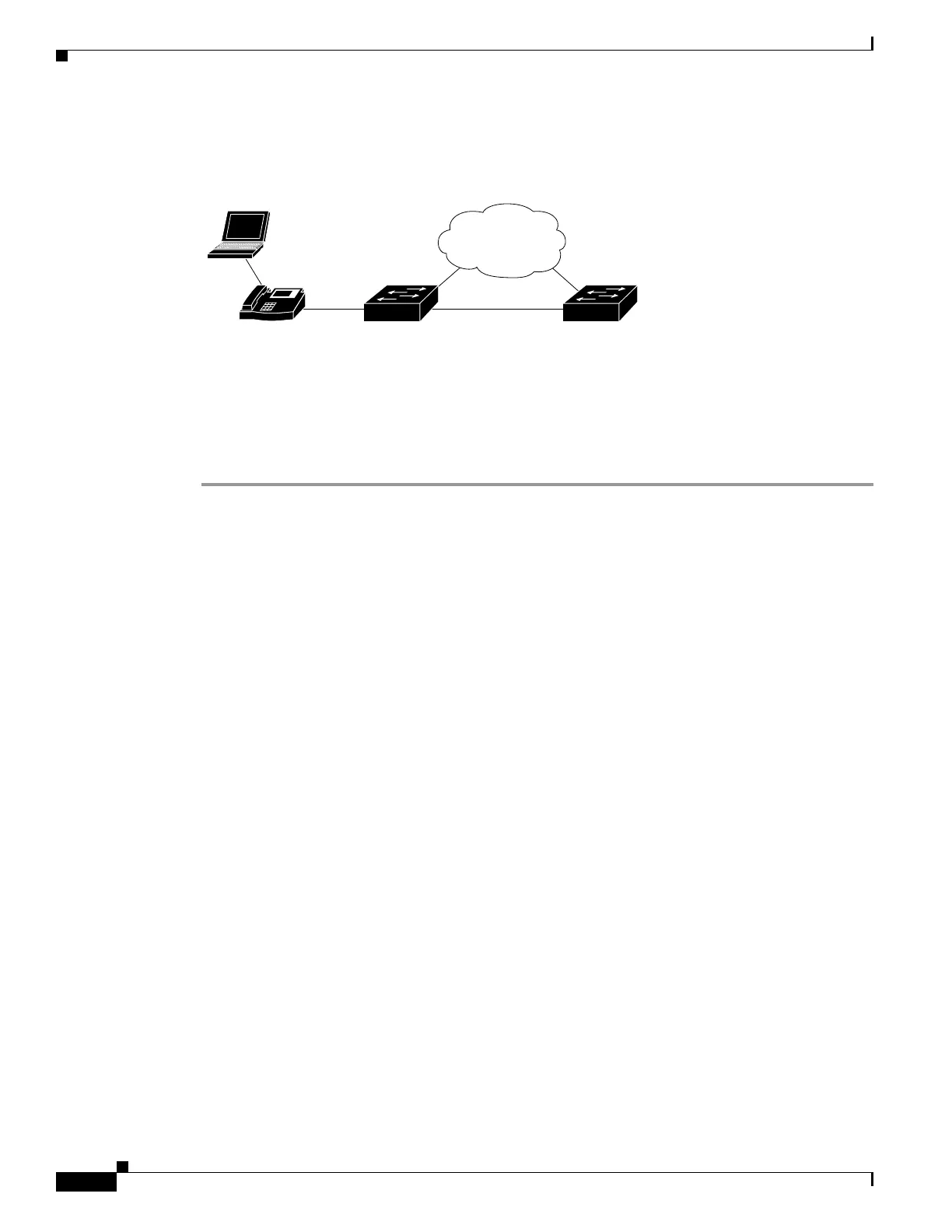

Figure 17-6 Topology with an End Station Attached to a Cisco IP Phone that is Attached to a
Catalyst 4500 Series Switch
In the following procedure, the Catalyst 4500 and Catalyst 6500 series switches (running Catalyst
Operating System) are the VMPS servers. Use this procedure to configure the Catalyst 4500 series
switch clients in the network:
Step 1 Configure the VMPS server addresses on Switch 2, the client switch.
a. Starting from privileged EXEC mode, enter global configuration mode:
switch# configuration terminal
b. Enter the primary VMPS server IP address:
switch(config)# vmps server 172.20.26.150 primary
c. Enter the secondary VMPS server IP addresses:
switch(config)# vmps server 172.20.26.152
d. To verify your entry of the VMPS IP addresses, return to privileged EXEC mode:
switch(config)# exit
e. Display VMPS information configured for the switch:
switch# show vmps
VQP Client Status:
--------------------
VMPS VQP Version: 1
Reconfirm Interval: 60 min
Server Retry Count: 3
VMPS domain server: 172.20.26.152
172.20.26.150 (primary, current
Step 2 Configure port Fa0/1 on Switch 2 as a dynamic port.
a. Return to global configuration mode:
switch# configure terminal
b. Enter interface configuration mode:
switch(config)# interface fa2/1
c. Configure the VLAN membership mode for static-access ports:
switch(config-if)# switchport mode access
Cisco IP phone
(in VLAN 10)
Endstation
(in VLAN 20)
