6. BASIC OPERATION
83

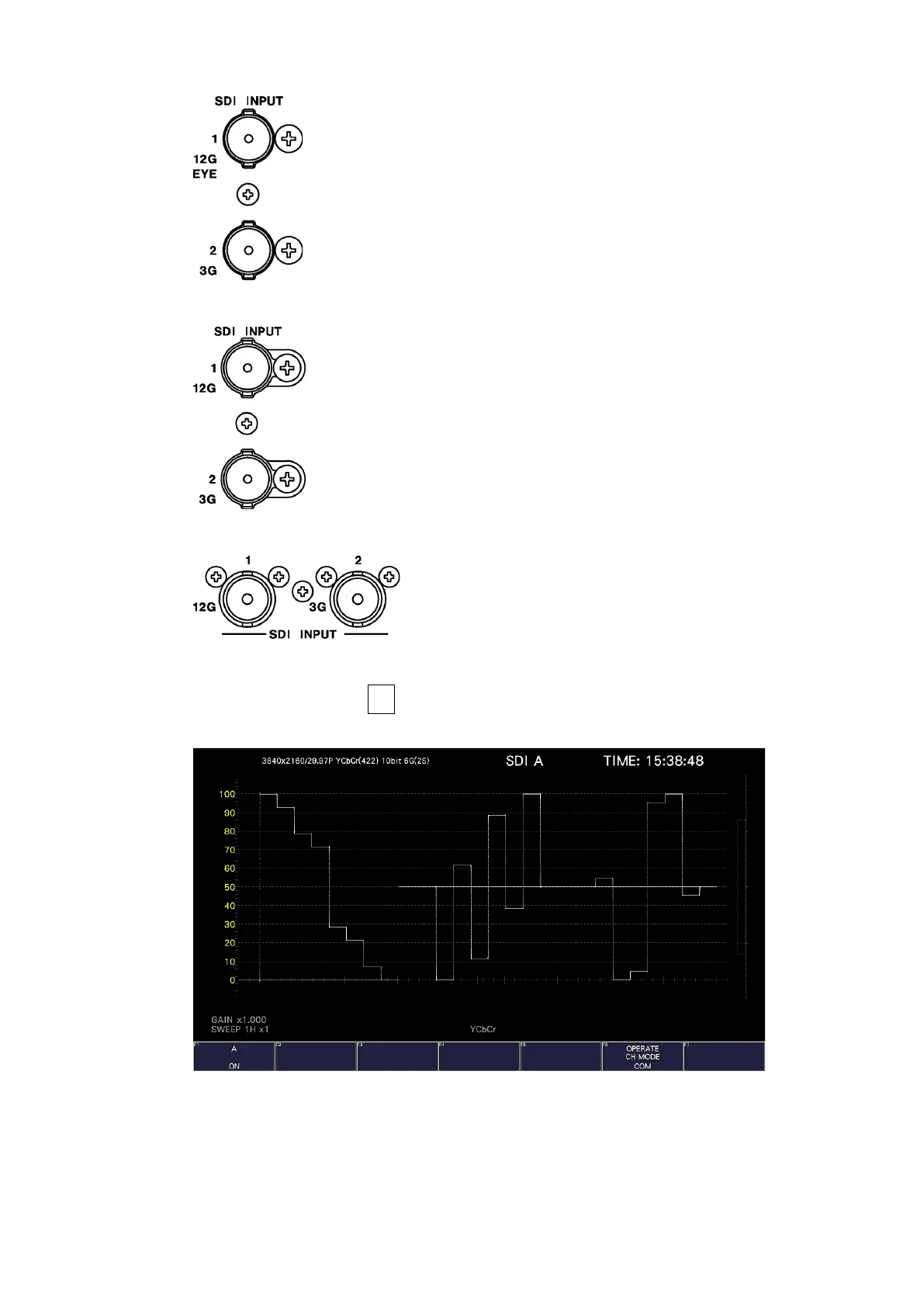

Figure 6-11 LV5300/LV5300A SDI input connectors
Figure 6-12 LV5350 SDI input connectors
Figure 6-13 LV7300 SDI input connectors
5. When you press INPUT, F•1 A is fixed to ON.
Simul mode cannot be used.
Figure 6-14 Measurement screen
* To measure 6G-SDI signals, use cables and connectors that are appropriate for transmitting 6G-
SDI signals. Using incompatible or degraded cables or connectors may cause the transmission
characteristics to degrade drastically.
