13.3.4 Displaying the SCTE-104 Detection screen
When a SCTE-104 message is detected, the message is displayed on the picture screen. Up
to 3 messages are displayed, and the top of the messages is the latest detected message.
The message is displayed for the time set in Duration, and if no message is detected during
the set time, it returns to the hidden state.
(Time Code) xx:xx:xx:xx SCTE104: (Message 1) Latest detected message
(Time Code) xx:xx:xx:xx SCTE104: (Message 2) Once ago detected message
(Time Code) xx:xx:xx:xx SCTE104: (Message 3) Twice ago detected message
When a splice_request_data message is detected, the details of the message are displayed.
Display = Top left / ID Value ＝ BOTH

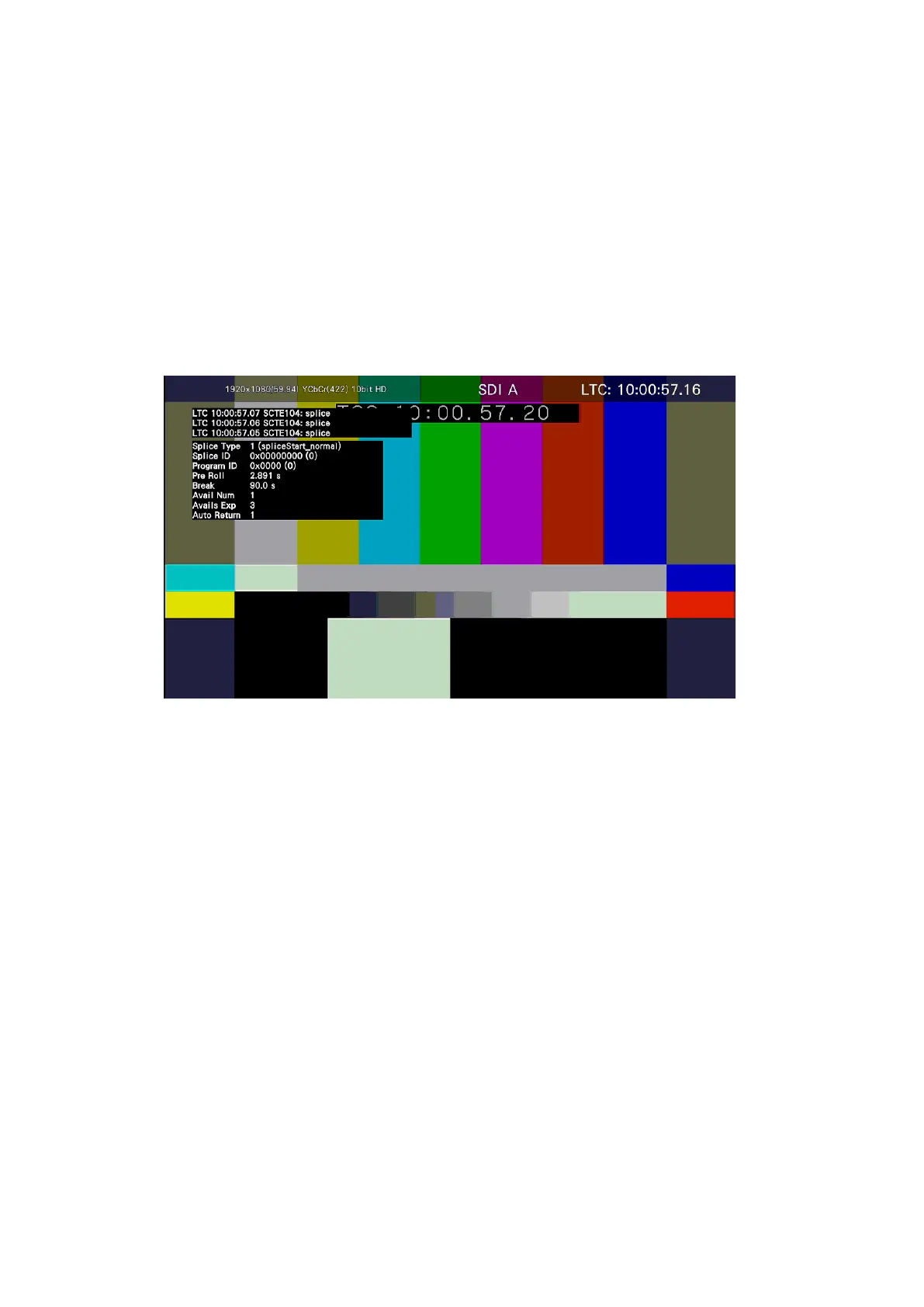

Figure 13-9 SCTE-104 Detection screen
