Leader LV5300A - Configuring the TSG Settings (SER24)

7. SYSTEM SETTINGS
133
7.1.6 Configuring the TSG Settings (SER24)
When Mode (SDI2) on the SDI OUT tab is set to Test Signal, use the parameters under Test
Signal to set the TSG to output from SDI OUTPUT 2 on the rear panel.
SYS → F•1 SIGNAL IN OUT → F•2 PREV TAB or F•3 NEXT TAB →

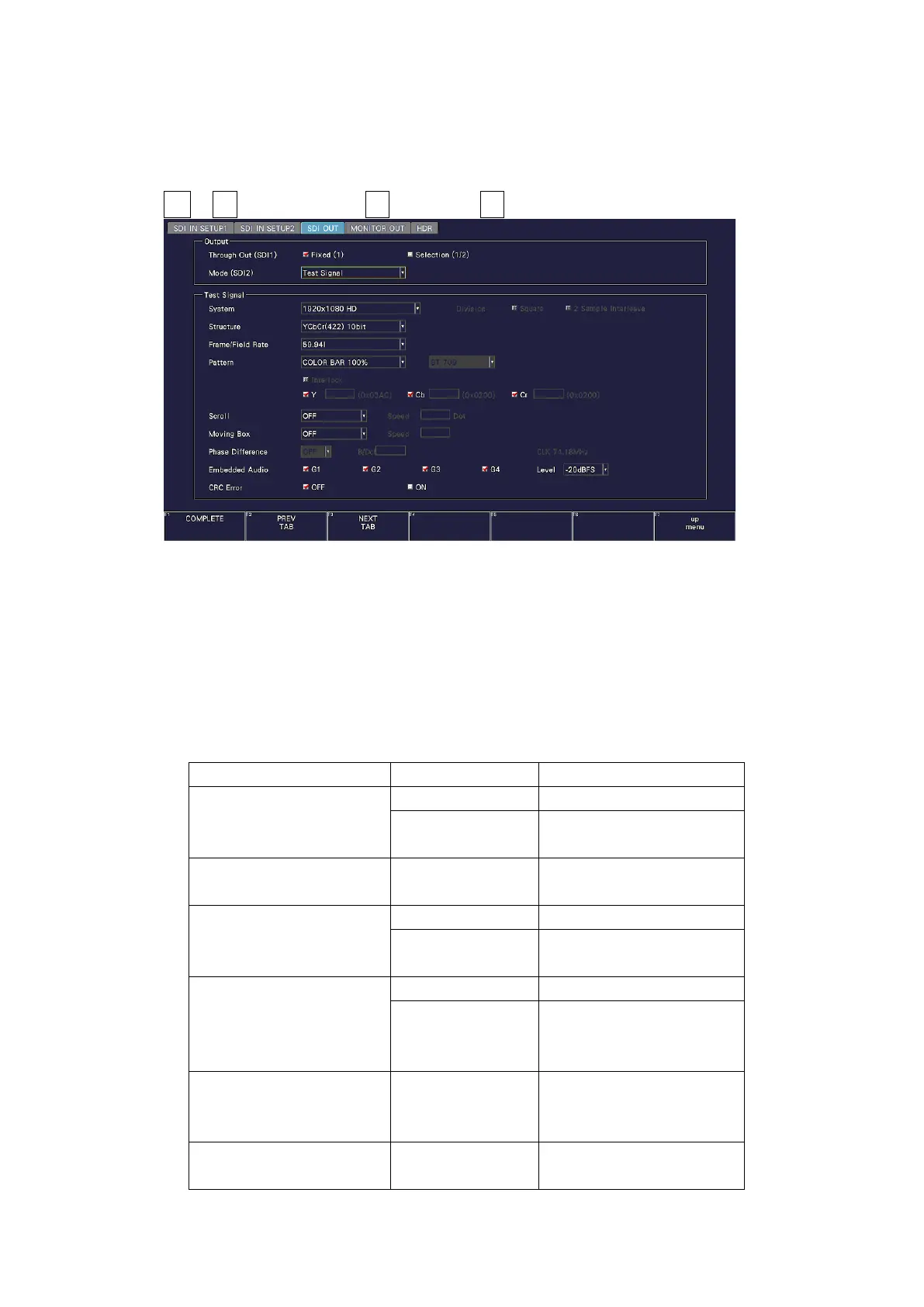

Figure 7-7 SDI OUT tab
• System
• Structure
• Frame/Field Rate
Set the output format. The possible format combinations are shown below. The default
values are 1920x1080 HD, YCbCr(422) 10 bit, 59.94I.
Table 7-3 Output format selection
System
Structure
Frame/Field Rate
3840x2160 12G
4096x2160 12G
YCbCr(422) 10 bit
60/59.94/50/48/47.95/P
YCbCr(444) 10 bit
RGB(444) 10 bit
30/29.97/25/24/23.98/P
3840x2160 6G
4096x2160 6G
YCbCr(422) 10bit
30/29.97/25/24/23.98/P
2048x1080 3G-B-DL
2048x1080 3G-A
YCbCr(422) 10 bit
60/59.94/50/48/47.95/P
YCbCr(444) 10 bit
RGB(444) 10 bit
30/29.97/25/24/23.98/P
30/29.97/25/24/23.98/PsF
1920x1080 3G-B-DL
1920x1080 3G-A
YCbCr(422) 10 bit
60/59.94/50/48/47.95/P
YCbCr(444) 10 bit
RGB(444) 10 bit
60/59.94/50/I
30/29.97/25/24/23.98/P
30/29.97/25/24/23.98/PsF
1920x1080 HD
YCbCr(422) 10 bit
60/59.94/50/I
30/29.97/25/24/23.98/P
30/29.97/25/24/23.98/PsF
1280x720 HD
YCbCr(422) 10 bit
60/59.94/50/P
30/29.97/25/24/23.98/P
