Leader LV5300A - Setting the Vector Gain; Setting the Variable Gain

11. VECTOR DISPLAY
220
11.6 Setting the Vector Gain
To set the gain, press F•3 VECTOR GAIN on the VECT menu.
VECT → F•3 VECTOR GAIN →

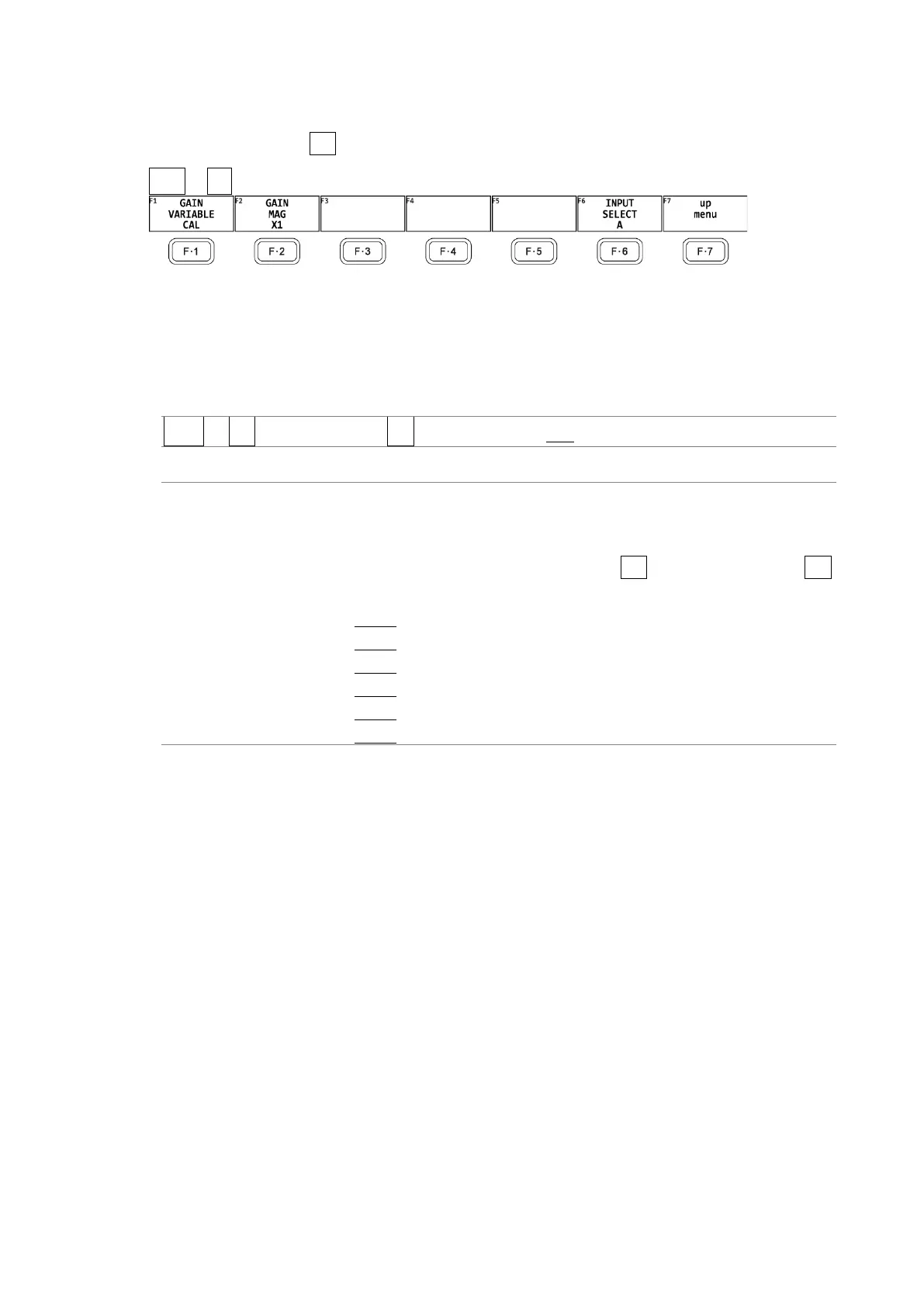

Figure 11-11 VECTOR GAIN menu
11.6.1 Setting the Variable Gain
To set the variable vector gain, follow the procedure below.
Procedure
VECT → F•3 VECTOR GAIN → F•1 GAIN VARIABLE: CAL / VARIABLE
Settings
CAL: The waveform gain is fixed.
VARIABLE: You can adjust the waveform gain by turning the function dial (F•D).
Press the function dial (F•D) to return the setting to its default value.
The adjusted gain value (the combination of F•1 GAIN VARIABLE and F•2
GAIN MAG) appears in the lower right of the screen.
0.200 - 1.000 - 2.000 (for X1)
1.000 - 5.000 - 10.000 (for X5)
0.620 - 3.120 - 6.240 (not IQ-MAG or SD, component display)
0.580 - 2.920 - 5.840 (IQ-MAG or SD, composite display)
0.570 - 2.850 - 5.700 (not IQ-MAG or SD, for pseudo-composite display)
0.520 - 2.630 - 5.260 (IQ-MAG or SD, for pseudo-composite display)
