6. BASIC OPERATION
91
6.3.5 Status Display
To show the status display, press STATUS.
Event log display and data dump display are available.

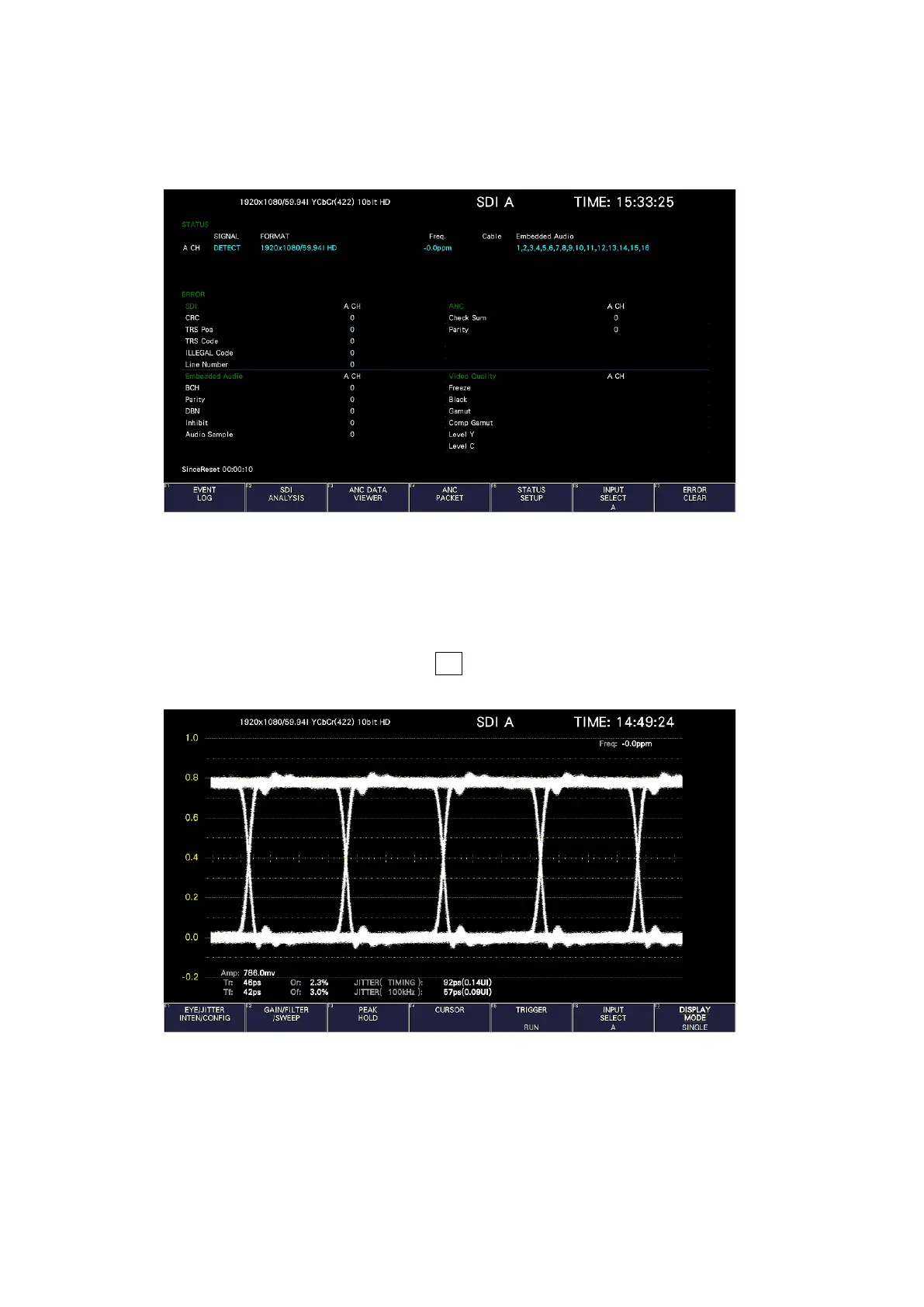

Figure 6-31 Status display
6.3.6 Eye Pattern Display (LV5300/LV5300A/LV7300-SER02)
To show eye patterns, press EYE. (If LV5350 or LV7300-SER02 is not installed, the EYE key
is disabled.)
You can also show jitter by switching F•1 EYE/JITTER MODE.
Simul mode is not supported.
Figure 6-32 Eye pattern display
