11. VECTOR DISPLAY
214
11.3 Setting the Vector Scale
To configure the scale, use F•2 VECTOR SCALE on the VECT menu.
VECT → F•2 VECTOR SCALE →

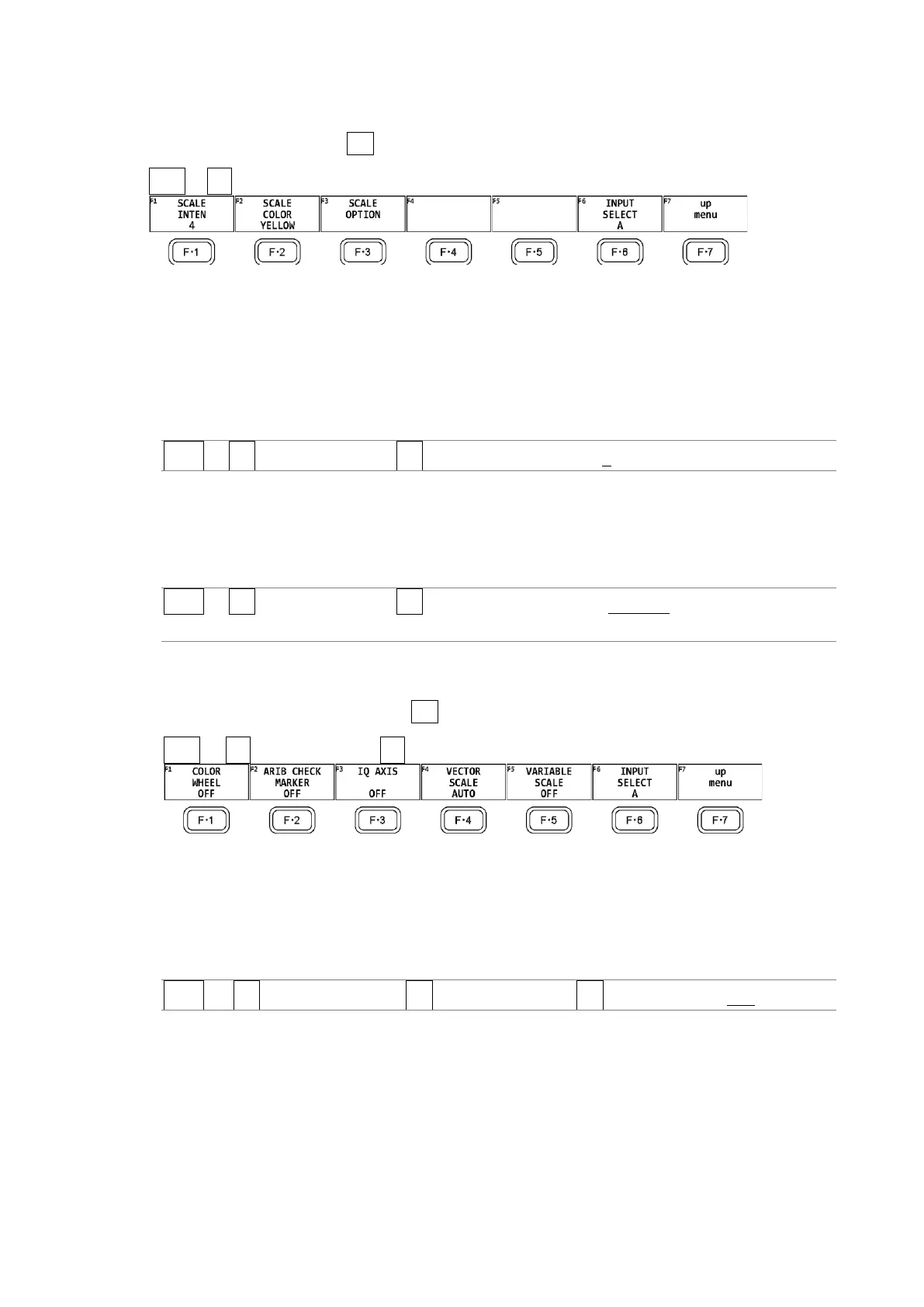

Figure 11-4 VECTOR SCALE menu
11.3.1 Adjusting the Scale Intensity
To adjust the scale intensity, follow the procedure below.
Press the function dial (F•D) to return the setting to its default value (4).
Procedure
VECT → F•2 VECTOR SCALE → F•1 SCALE INTENSITY: -8 - 4 - 7
11.3.2 Selecting the Scale Color
To select the scale color, follow the procedure below.
Procedure
VECT → F•2 VECTOR SCALE → F•2 SCALE COLOR: WHITE / YELLOW / CYAN / GREEN /
MAGENTA / RED / BLUE
11.3.3 Turning the Color Wheel On and Off
To configure the scale option, use F•3 SCALE OPTION on the VECTOR SCALE menu.
VECT → F•2 VECTOR SCALE → F•3 SCALE OPTION →
Figure 11-5 SCALE OPTION menu
When VARIABLE SCALE is set to off, COLOR WHEEL (Hue circle) display can be turn on or
off, follow the procedure below.
Procedure
VECT → F•2 VECTOR SCALE → F•3 SCALE OPTION → F•1 COLOR WHEEL: OFF / ON
