15. Audio Display
324
15.6.4 Selecting the Scale Display Format
To select the scale display format, follow the procedure below.
Procedure
AUDIO → F•3 LISSAJOU SETUP → F•4 FORM: X-Y / MATRIX
Settings
X-Y: R is assigned to the X-axis (horizontal), and L is assigned to the Y-axis
(vertical).
MATRIX: The R and L axes are positioned at 45 ° angles to the X and Y axes.

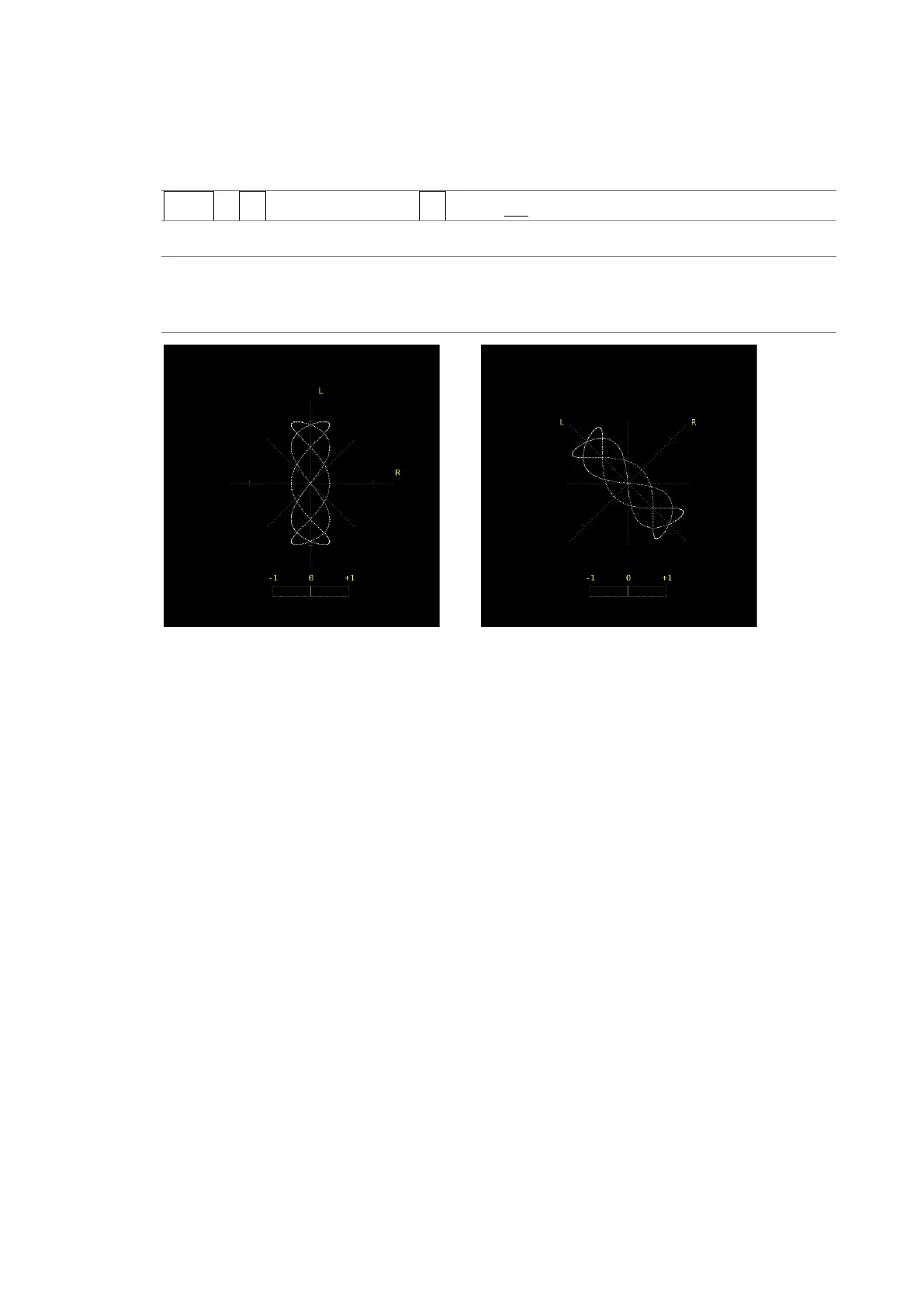

Figure 15-11 Selecting the scale display format
To Next Page
