11.12.1 Selecting the Scale Unit
When VECTOR DISPLAY is set to 5BAR, to select the scale unit, follow the procedure below.
[See also] VECTOR DISPLAY → 11.2.1, “Switching the Display Mode” and 11.11.3, “Selecting the
Composite Display Format”
Procedure
VECT → F•2 5BAR SCALE: % / mV / HEX / DEC
Settings
%: The display unit for YGBR is percentage, and the display unit for CMP is
IRE.
mV: The display unit is mV. Depending on the composite display format, the
scale differs as follows:
NTSC: 100 % = 700 mV (YGBR), 100IRE = 714.3 mV (CMP)
PAL: 100%(IRE) = 700mV
HEX: YGBR is displayed as a percentage with 0 to 100% expressed as 040 to
3AC. CMP is displayed using IRE.
DEC: YGBR is displayed as a percentage with 0 to 100% expressed as 64 to
940. CMP is displayed using IRE.

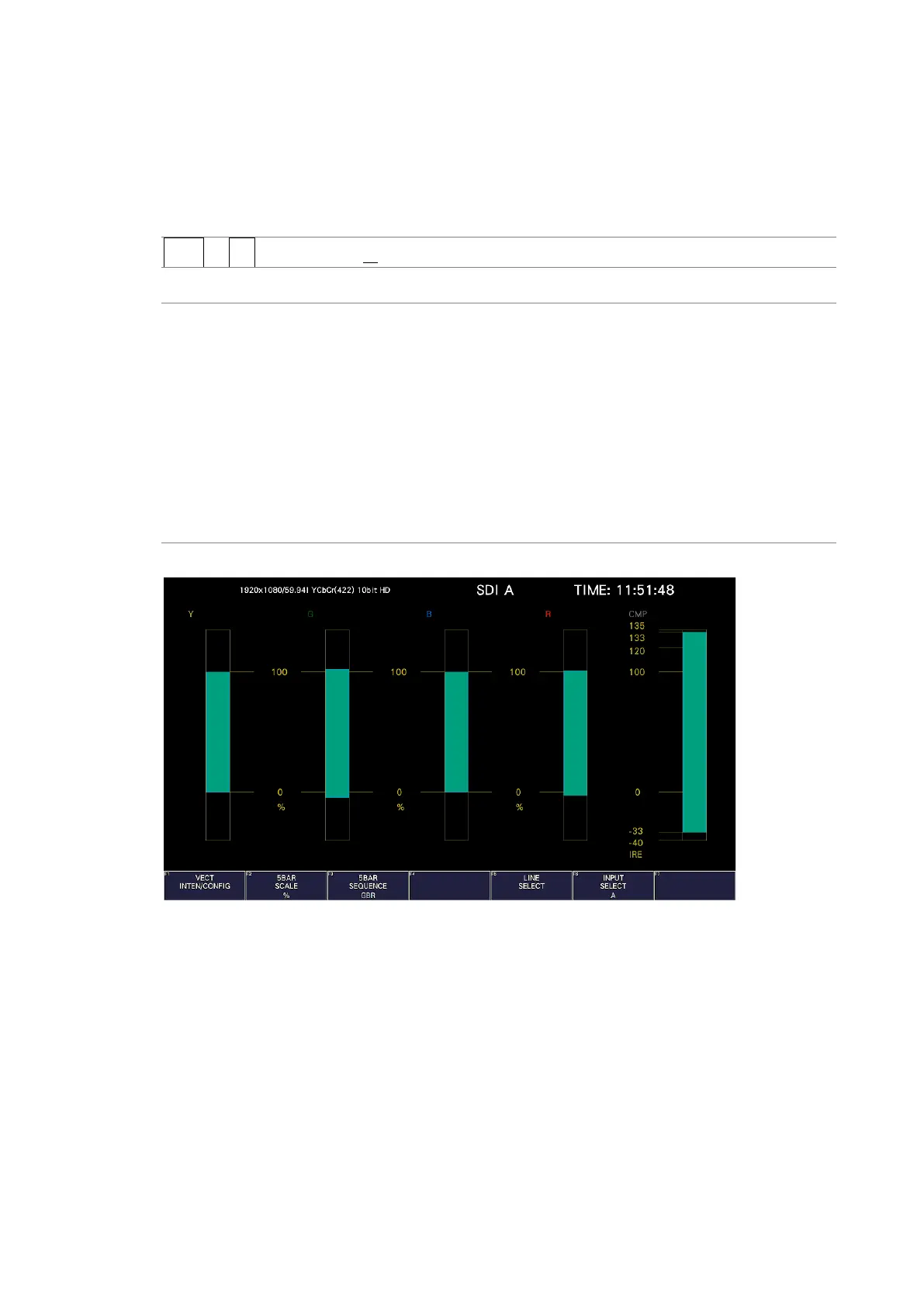

5BAR SCALE = %
