16. Status Display
387
16.9.15 Displaying AFD Packets
To display AFD packets, follow the procedure below.
Procedure
STATUS → F•4 ANC PACKET → F•1 PACKET ANALYSIS → F•4 V-ANC → F•2 SMPTE
→ F•5 AFD

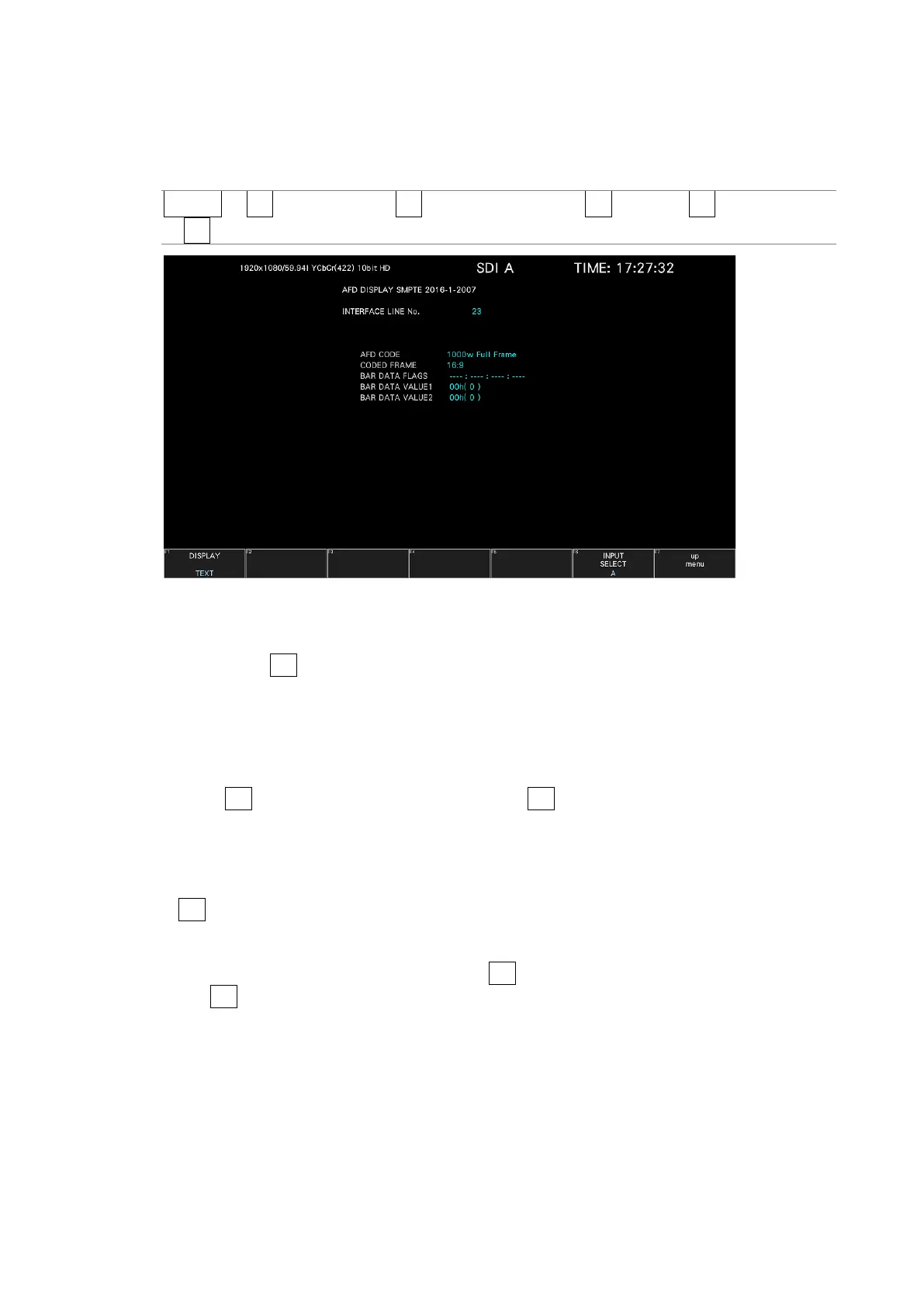

Figure 16-35 AFD packet display
• Selecting the Display Format
You can use F•1 DISPLAY to set the display format to TEXT (text display) or DUMP (dump
display).
If you select DUMP, the dump display appears, and you can use the function dial (F•D) to
view the entire data. If you press the function dial (F•D), the first data entry is displayed.
• Selecting the Dump Mode
When F•1 DISPLAY is set to DUMP, you can use F•2 DUMP MODE to set the dump mode
to HEX (hexadecimal display) or BINARY (binary display).
• Selecting the Displayed Stream
When the input signal is 3G-B, to set the display stream to STREAM1 or STREAM2, press
F•4 STREAM SELECT.
• Selecting the Content to Display
You can select the displayed content using F•5 LINK when the input signal is multi link
and F•5 SUB when the input signal is 6G and 12G.
