11. VECTOR DISPLAY
238

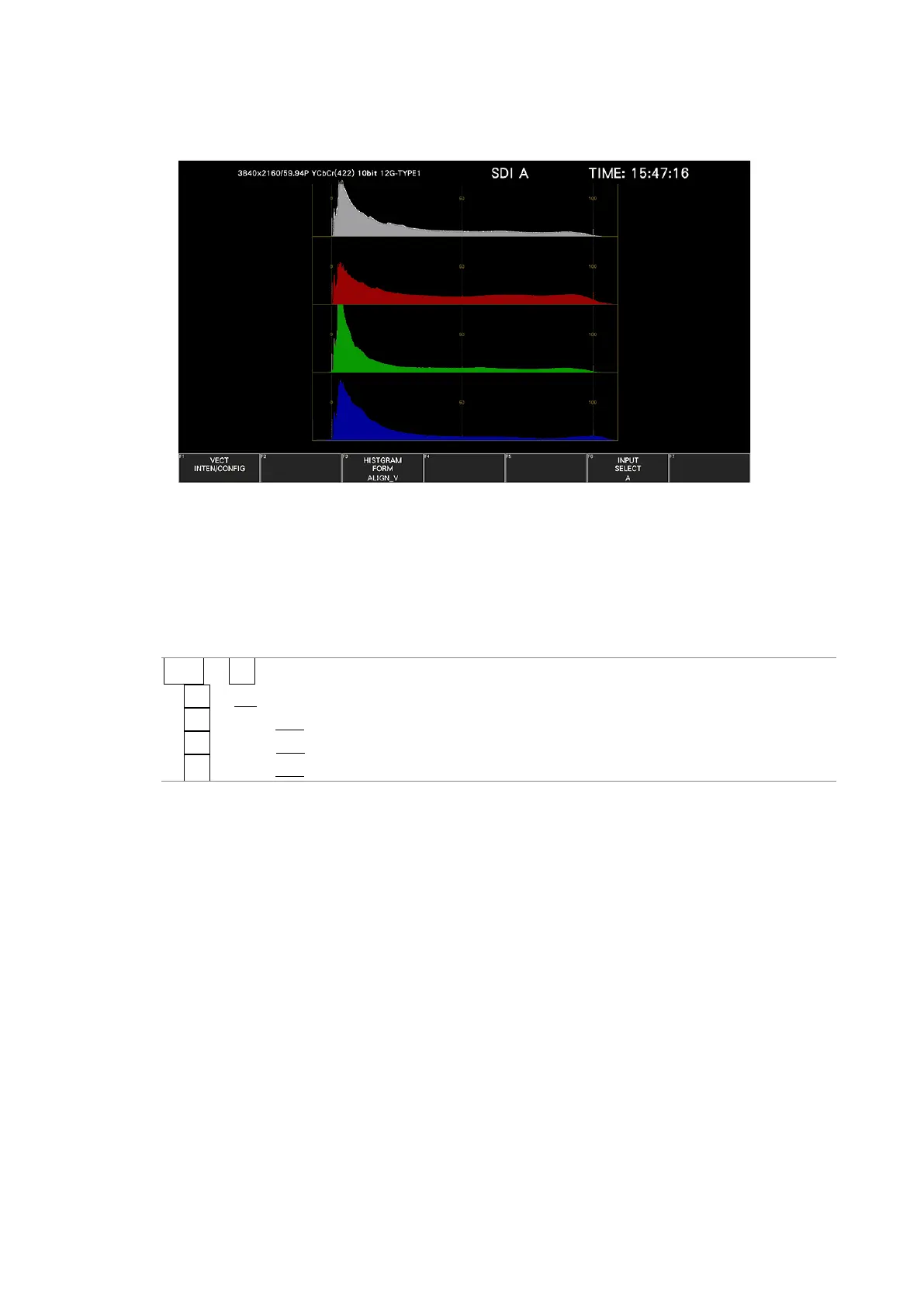

• When HISTOGRAM FORM is ALIGN-V
Luminance, R, G, and B are displayed top to bottom.
Figure 11-30 ALIGN_V display
11.13.2 Selecting the Measurement Signal
When HISTOGRAM FORM is SINGLE, to select the measurement signal, follow the procedure
below. A single signal from luminance, R, G, and B can be turned on.
Procedure
VECT → F•4 HISTOGRAM SETUP
→ F•1 Y: ON / OFF
→ F•2 R: ON / OFF
→ F•3 G: ON / OFF
→ F•4 B: ON / OFF
