11.8 Setting the YCbCr Vector Gain
When the SER40 is installed and the vector mode is set to YCbCr VECTOR, you can set the
gain, use F•3 YCbCr VECTOR GAIN on the VECT menu.
To set the gain, press F•3 VECTOR GAIN on the VECT menu.
VECT → F•3 YCbCr VECTOR GAIN →

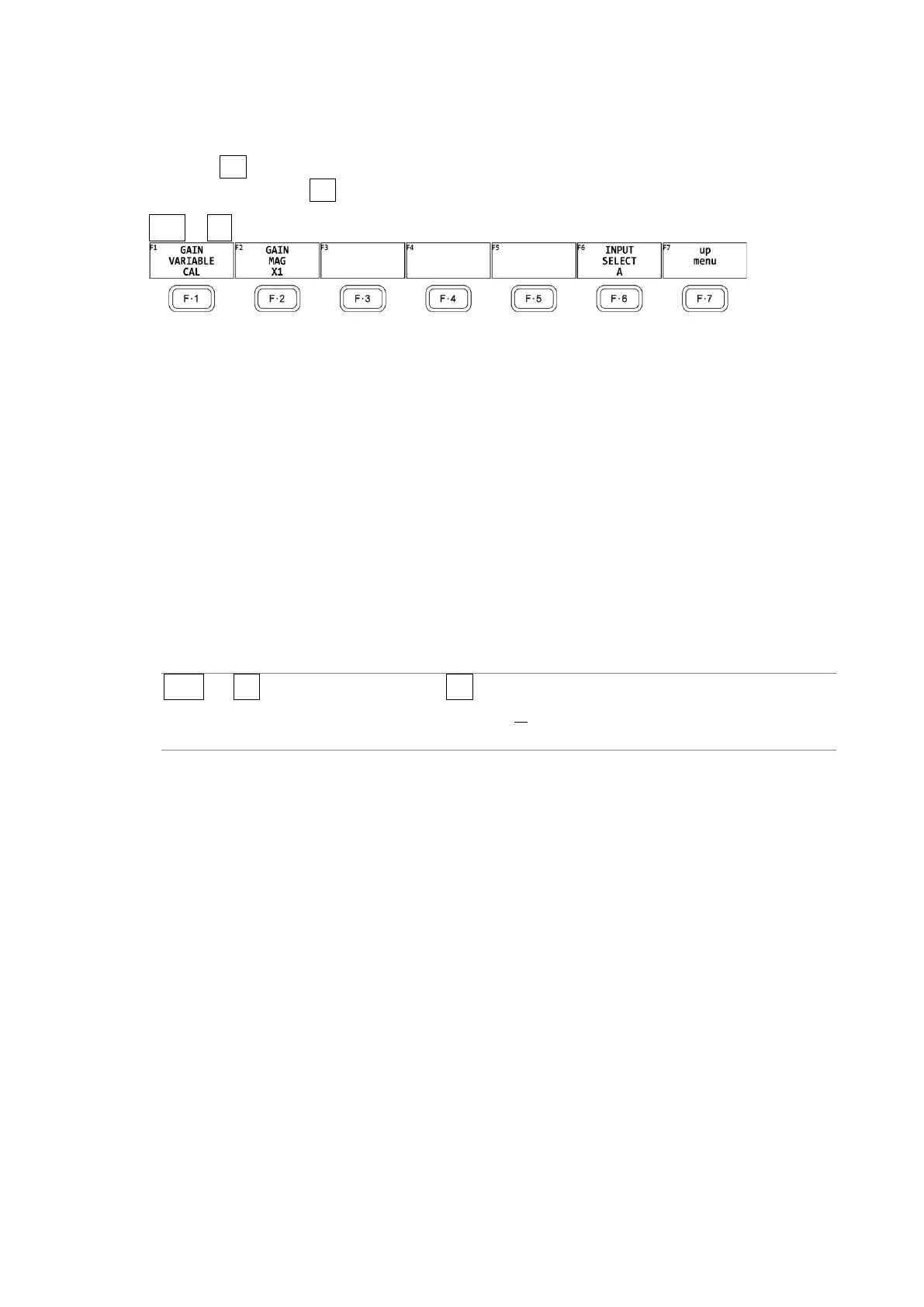

Figure 11-13 YCbCr VECTOR GAIN menu
11.8.1 Setting the Variable Gain
To set the variable vector gain, see section 11.6.1, "Setting the Variable Gain."
11.8.2 Selecting the Fixed Gain
To select the fixed vector gain, see section 11.6.2, "Selecting the Fixed Gain."
However, IQ-MAG cannot be selected.
11.8.3 Selecting the Observation Point
When the fixed vector gain is set to X5, to select the observation point, follow the procedure
below.
Procedure
VECT → F•3 YCbCr VECTOR GAIN → F•3 OBSERVATION POINT: B-Y:Wh / B-Y:Yl / B-Y:Cy
/ B-Y:G / B-Y:TIMING / B-Y:Mg / B-Y:R / B-Y:B / Bl / R-Y:B / R-YR / R-Y:Mg / R-Y:TIMING /
R-Y:G / R-Y:Cy / R-Y:Yl / R-Y:Wh
