11.3.5 Turning the I and Q Axes On and Off
To turn the I and Q axes on and off, follow the procedure below.
This menu item does not appear when VECTOR SCALE is set to DCI or BT.2020.
When the full scale value of 0.7 V is 100 %, the I and Q axes are displayed at the following
values.
Table 11-2 Displaying the I and Q axes
I Axis
Q Axis
G
44.559 %
37.056 %
B
27.865 %
84.085 %
R
69.120 %
62.417 %
Procedure
VECT → F•2 VECTOR SCALE → F•3 SCALE OPTION → F•3 IQ AXIS: ON / OFF
IQ AXIS = ON

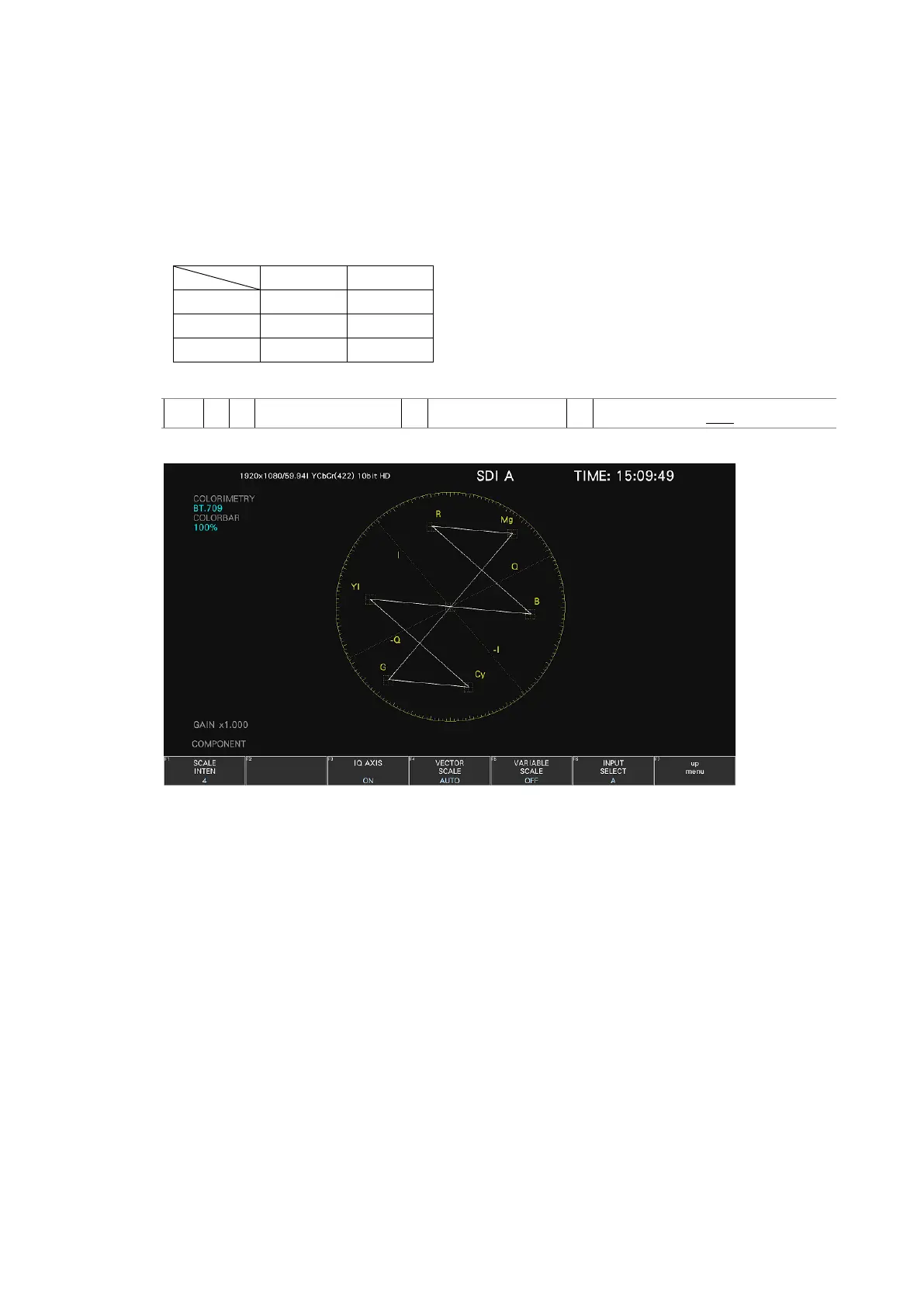

Figure 11-8 Turning the I and Q axes on and off
