16. Status Display
382
16.9.9 Displaying User Data
To display user data 1 or 2, follow the procedure below.
You can use the function dial (F•D) to view all the data. If you press the function dial (F•D),
the first data entry is displayed.
Procedure
STATUS → F•4 ANC PACKET → F•1 PACKET ANALYSIS → F•4 V-ANC → F•1 ARIB
→ F•4 USER DATA 1
→ F•5 USER DATA 2

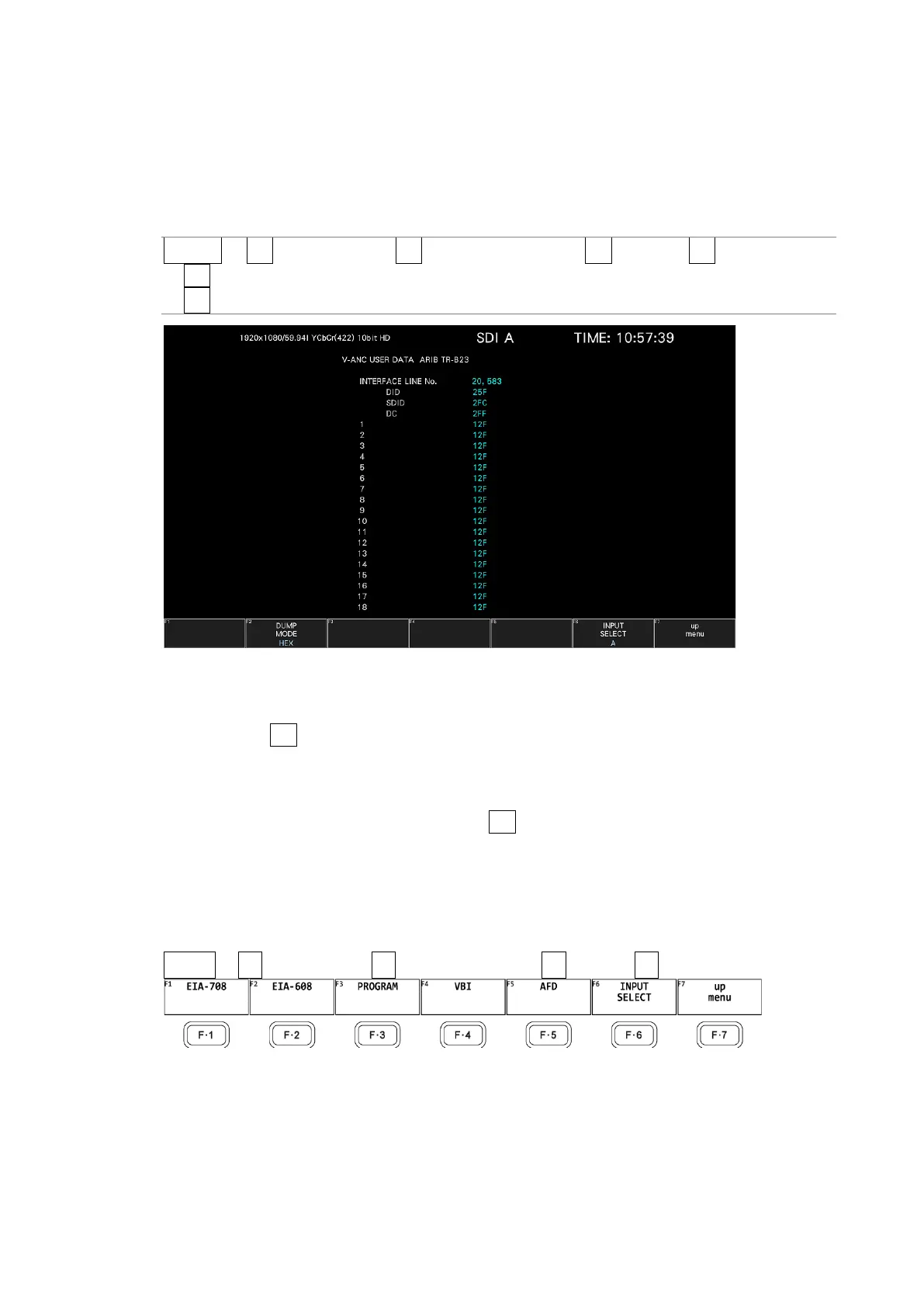

Figure 16-29 User data display
• Selecting the Dump Mode
You can use F•2 DUMP MODE to set the dump mode to HEX (hexadecimal display) or
BINARY (binary display).
• Selecting the Content to Display
You can select the displayed content using F•5 SUB when the input signal is 6G or 12G.
16.9.10 V-ANC SMPTE Display
To display the V blanking ancillary packets defined in the SMPTE standard, use the SMPTE
menu.
STATUS → F•4 ANC PACKET → F•1 PACKET ANALYSIS → F•4 V-ANC → F•2 SMPTE →
Figure 16-30 SMPTE menu
