11. VECTOR DISPLAY
218
11.4 Setting the RGB Vector Scale (SER40)
When the SER40 is installed and the vector mode is set to RGB VECTOR, you can configure
the scale, use F•2 RGB VECTOR SCALE on the VECT menu.
VECT → F•2 RGB VECTOR SCALE →

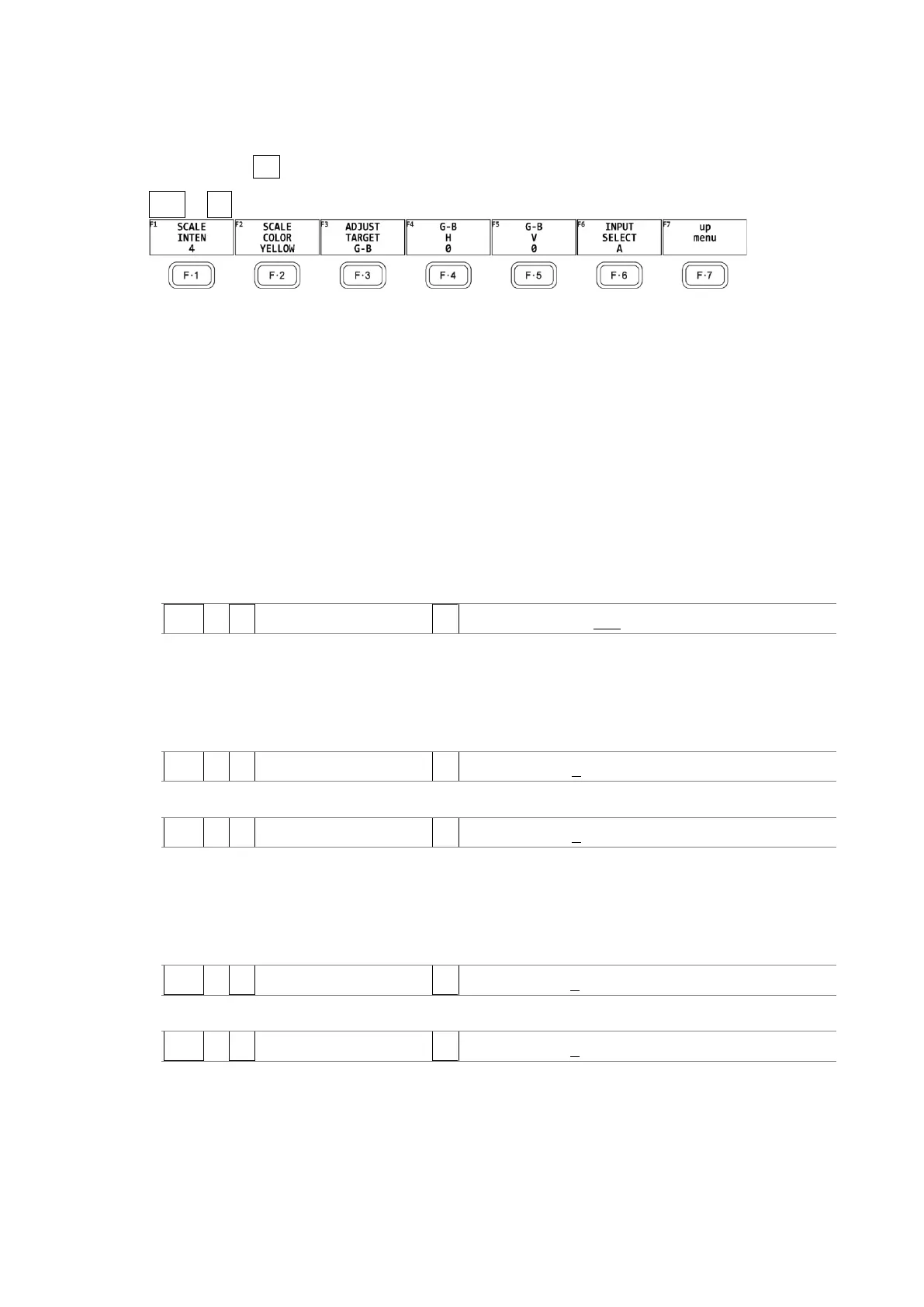

Figure 11-9 RGB VECTOR SCALE menu
11.4.1 Adjusting the Scale Intensity
To adjust the scale intensity, see section 11.3.1, "Adjusting the Scale Intensity."
11.4.2 Selecting the Scale Color
To select the scale color, see section 11.3.2, "Selecting the Scale Color."
11.4.3 Selecting the Adjust Target
To select the adjust target, follow the procedure below.
Procedure
VECT → F•2 RGB VECTOR SCALE → F•3 ADJUST TARGET: G-B / G-R
11.4.4 Adjusting the G-B H / G-R H
To adjust the G-B H / G-R H, follow the procedure below.
Procedure (When the adjust target is set to G-B)
VECT → F•2 RGB VECTOR SCALE → F•4 G-B H: -500 – 0 - 500
Procedure (When the adjust target is set to G-R)
VECT → F•2 RGB VECTOR SCALE → F•4 G-R H: -500 – 0 - 500
11.4.5 Adjusting the G-B V / G-R V
To adjust the G-B V / G-R V, follow the procedure below.
Procedure (When the adjust target is set to G-B)
VECT → F•2 RGB VECTOR SCALE → F•5 G-B V: -500 – 0 - 500
Procedure (When the adjust target is set to G-R)
VECT → F•2 RGB VECTOR SCALE → F•5 G-R V: -500 – 0 - 500
