15.6.5 Setting the Lissajous Curve Gain
To select the Lissajous curve gain, follow the procedure below.
Procedure
AUDIO → F•3 LISSAJOU SETUP → F•5 AUTO GAIN: ON / OFF
Settings
ON: The gain is automatically adjusted so that the waveform fits the scale.
OFF: The waveform is displayed with a fixed gain.

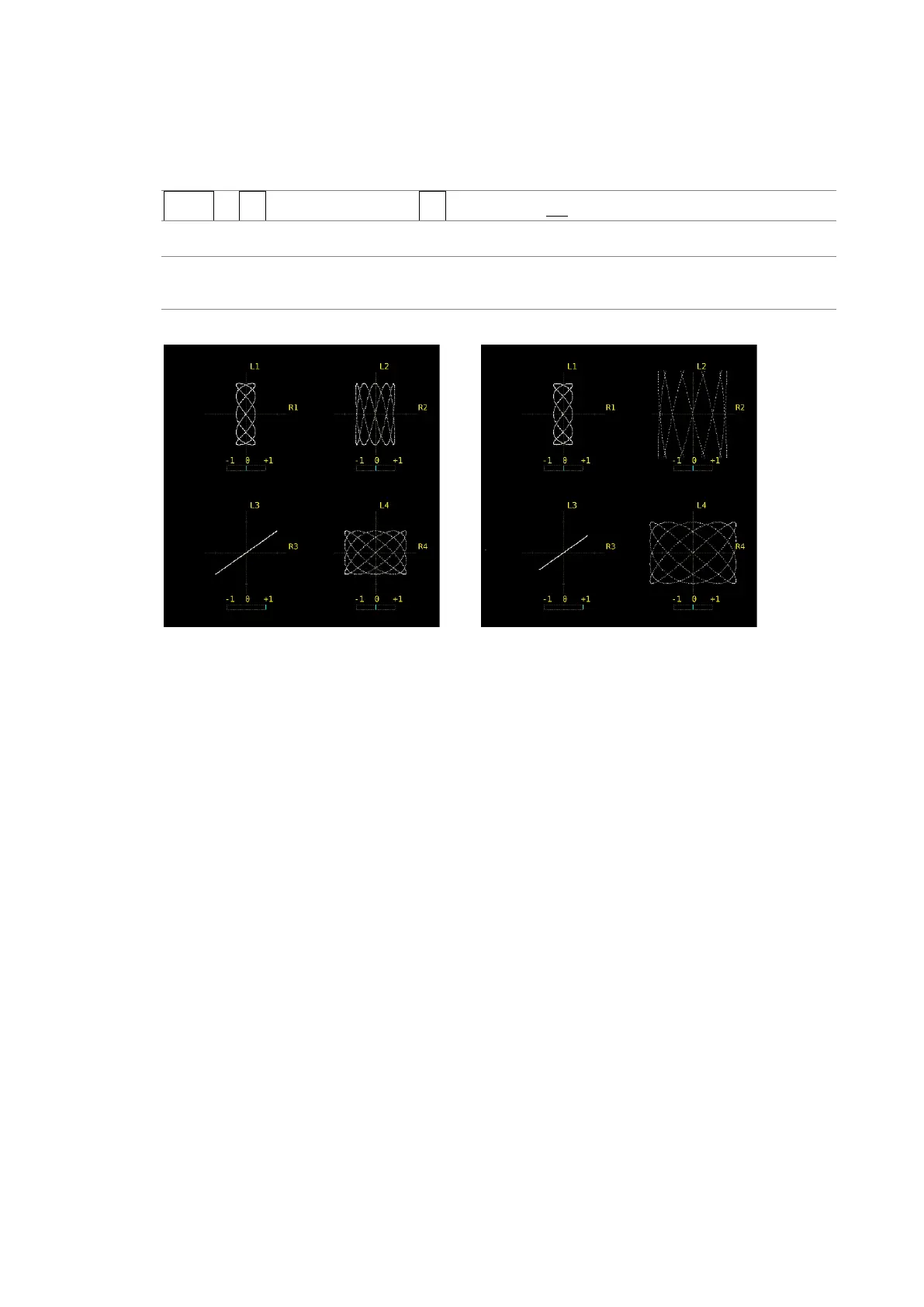

AUTO GAIN = ON AUTO GAIN = OFF
Figure 15-12 Setting the Lissajous curve gain
