16. Status Display
384
16.9.12 Displaying EIA-608 Data
To display data that is specified by the EIA-608 standard, follow the procedure below.
Procedure
STATUS → F•4 ANC PACKET → F•1 PACKET ANALYSIS → F•4 V-ANC → F•2 SMPTE
→ F•2 EIA-608

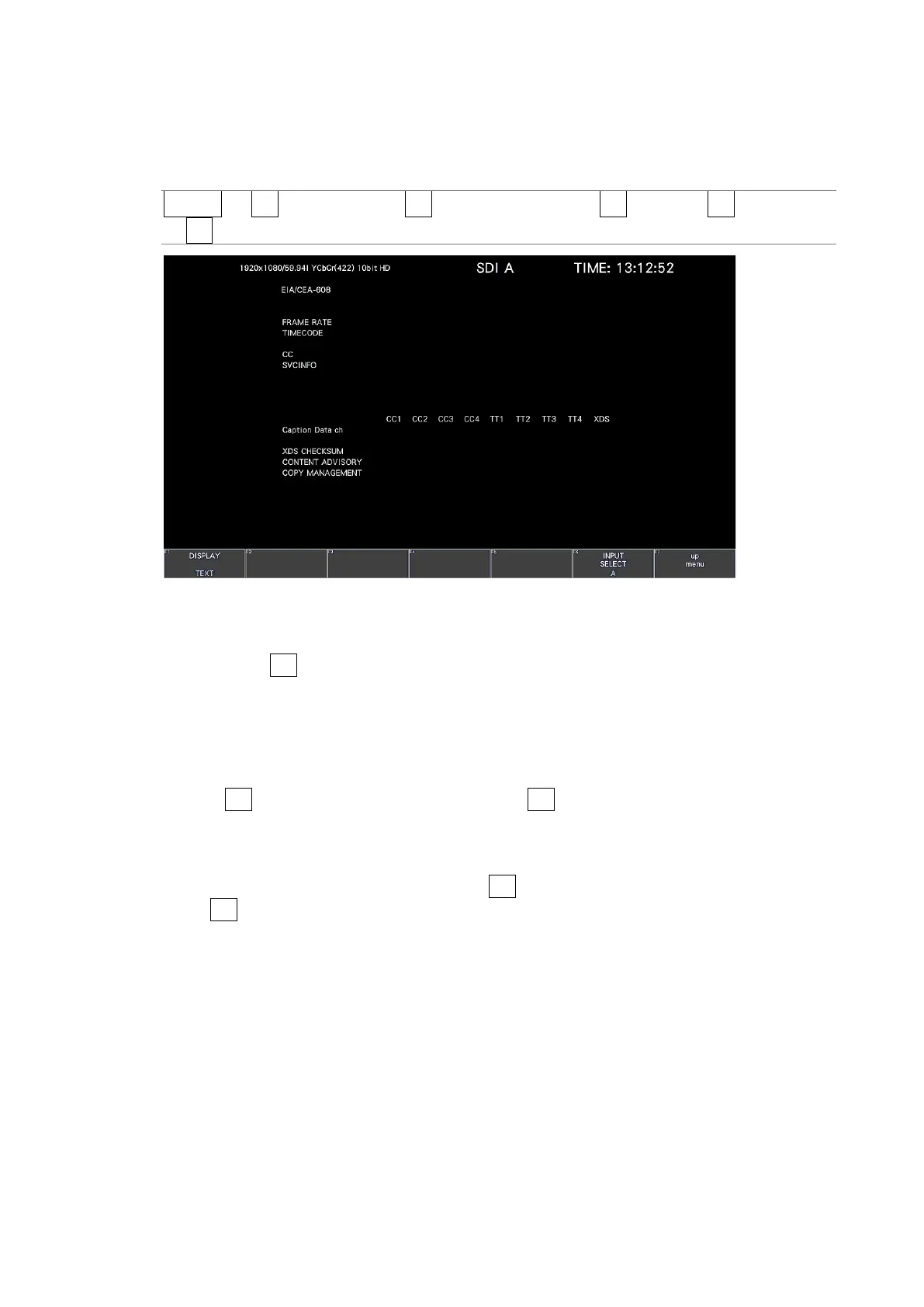

Figure 16-32 EIA-608 data display
• Selecting the Display Format
You can use F•1 DISPLAY to set the display format to TEXT (text display) or DUMP (dump
display).
If you select DUMP, the dump display appears, and you can use the function dial (F•D) to
view the entire data. If you press the function dial (F•D), the first data entry is displayed.
• Selecting the Dump Mode
When F•1 DISPLAY is set to DUMP, you can use F•2 DUMP MODE to set the dump mode
to HEX (hexadecimal display) or BINARY (binary display).
• Selecting the Content to Display
You can select the displayed content using F•5 LINK when the input signal is multi link
and F•5 SUB when the input signal is 6G or 12G.
