17. Eye Pattern Display (LV5300/LV5300A/LV7300-SER02)
406
17.8.2 Configuring 6G Error Settings
Use the 6G-SDI ERROR SETUP tab to configure error detection settings for 6G signals.
You can set the threshold values when you set the error detection to ON. Measured values
given in SMPTE ST 2082-1 are used as 100 %.
EYE F•1 EYE/JITTER INTEN/CONFIG F•5 ERROR SETUP F•2 PREV TAB or F•3 NEXT TAB

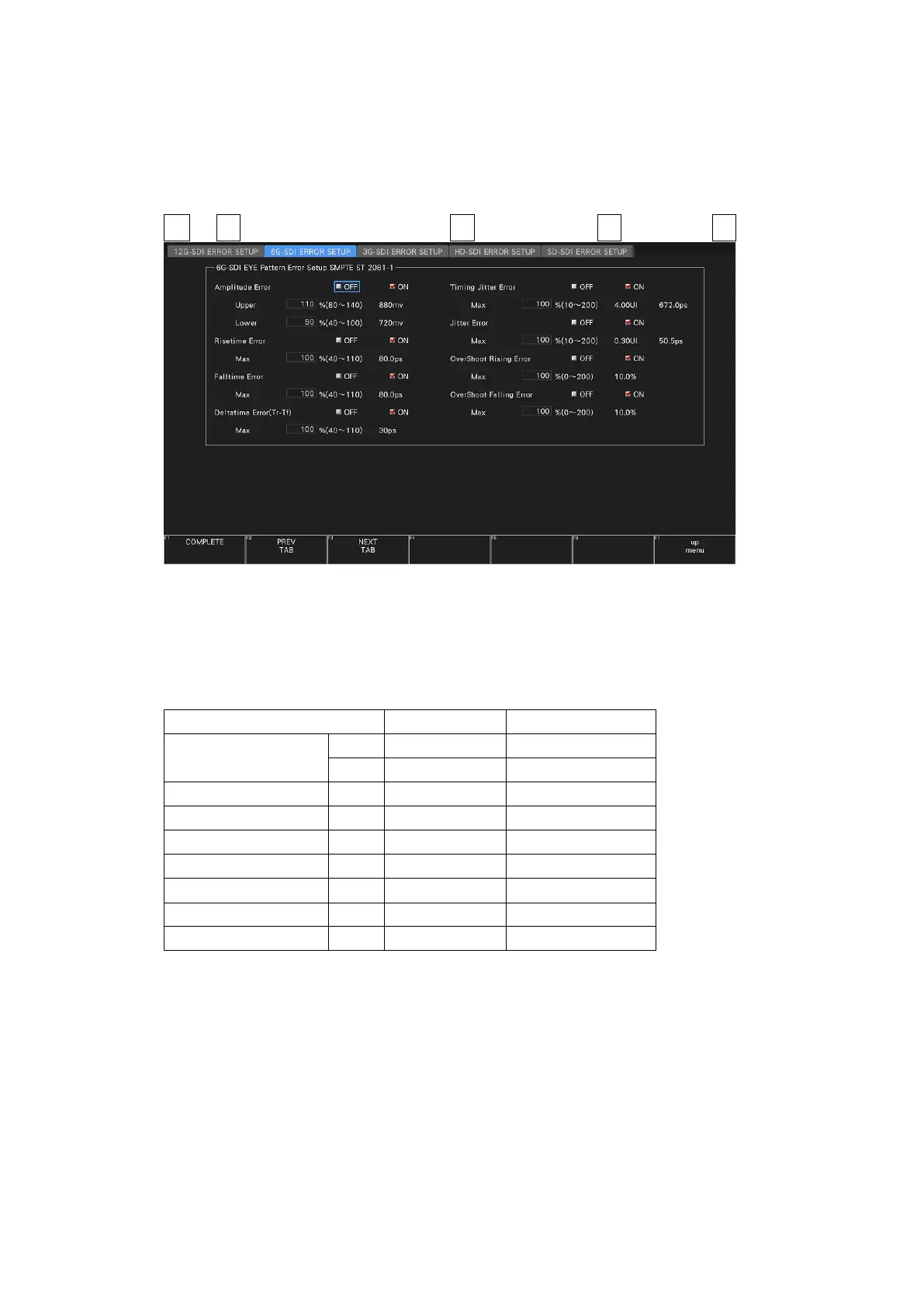

Figure 17-12 6G-SDI ERROR SETUP tab
A configuration example showing threshold values that correspond to SMPTE ST 2082-1 is
given below.
Table 17-4 6G-SDI ERROR SETUP configuration example
Item
Setting Example
Corresponding Value
Amplitude Error
Upper
110%
880 mV
Lower
90%
720 mV
Risetime Error
Max
100%
80.0 ps
Falltime Error
Max
100%
80.0 ps
Deltatime Error(Tr-Tf)
Max
100%
30 ps
Timing Jitter Error
Max
100%
4.00 UI (672.0ps)
Jitter Error
Max
100%
0.30 UI (50.5ps)
Overshoot Rising Error
Max
100%
10.0%
Overshoot Falling Error
Max
100%
10.0%
