16.9.5 V-ANC ARIB Display
To display the V blanking ancillary packets defined in the ARIB standard, use the ARIB
menu.
This menu item is not displayed when the input signal is 3G-B.
STATUS → F•4 ANC PACKET → F•1 PACKET ANALYSIS → F•4 V-ANC → F•1 ARIB →
Figure 16-23 V-ANC ARIB menu
16.9.6 Displaying Closed Caption Packets
To display closed caption packets, follow the procedure below.
Procedure
STATUS → F•4 ANC PACKET → F•1 PACKET ANALYSIS → F•4 V-ANC → F•1 ARIB
→ F•1 CLOSED CAPTION

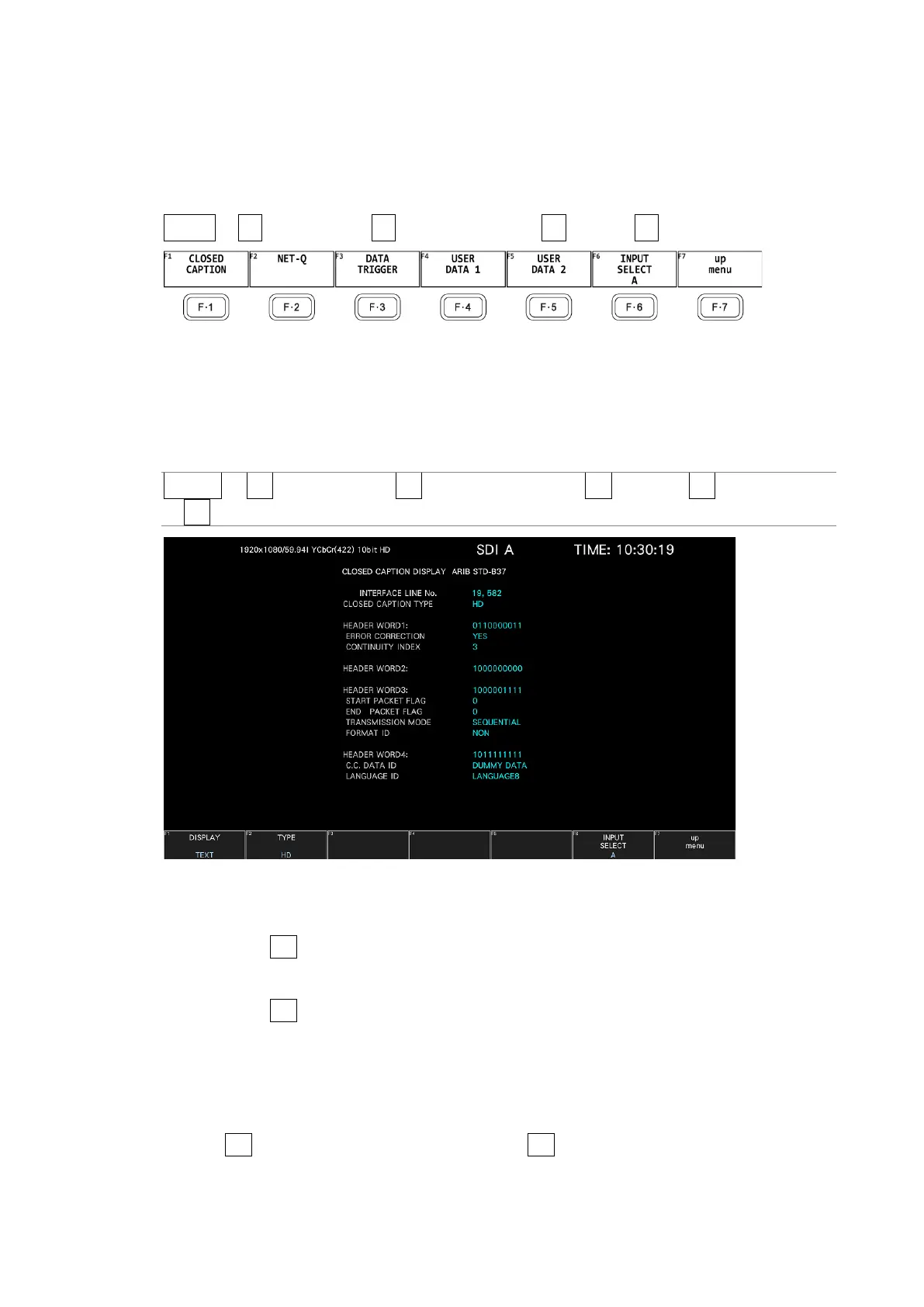

Figure 16-24 Closed caption packet screen
• Selecting the Closed Caption Type
You can use F•2 TYPE to set the closed caption type to HD, SD, ANALOG, or CELLULAR.
• Selecting the Display Format
You can use F•1 DISPLAY to set the display format to TEXT (text display) or DUMP (dump
display).
If you select DUMP, the dump display appears, and you can use the function dial (F•D) to
view the entire data. If you press the function dial (F•D), the first data entry is displayed.
• Selecting the Dump Mode
When F•1 DISPLAY is set to DUMP, you can use F•3 DUMP MODE to set the dump mode
to HEX (hexadecimal display) or BINARY (binary display).
