• Selecting the Content to Display
You can select the displayed content using F•5 LINK when the input signal is multi link
and F•5 SUB when the input signal is 6G or 12G.
16.9.7 Displaying the Inter-Stationary Control Signal
To display the inter-stationary control signal, follow the procedure below.
Procedure
STATUS → F•4 ANC PACKET → F•1 PACKET ANALYSIS → F•4 V-ANC → F•1 ARIB
→ F•2 NET-Q

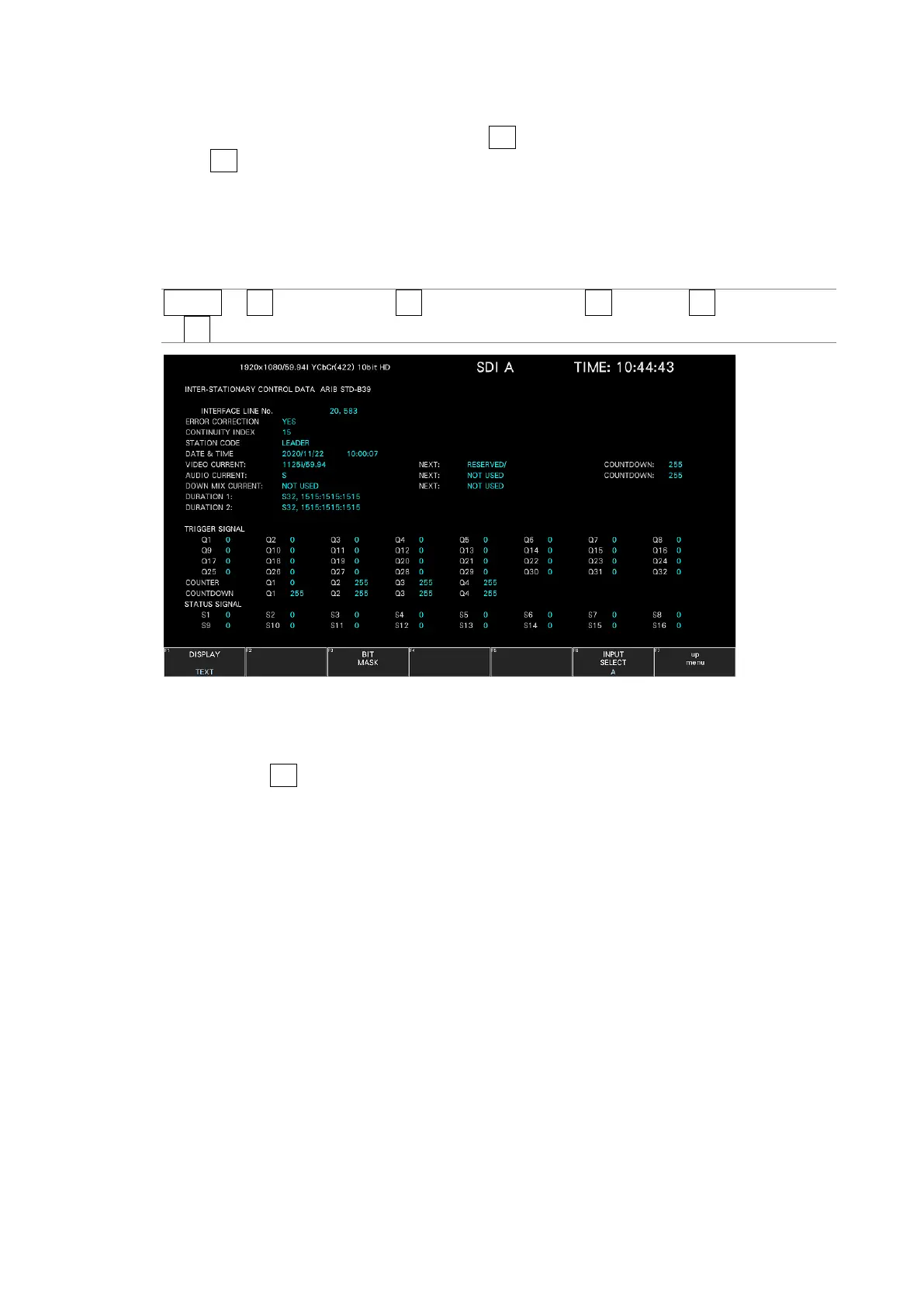

Figure 16-25 Inter-stationary control signal screen (TEXT)
• Selecting the Display Format
You can use F•1 DISPLAY to set the display format to TEXT (text display), DUMP (dump
display), Q LOG (Q-signal log display), or FORMAT (format ID display).
If you select DUMP, the dump display appears. If you select Q LOG, the log display
appears. In either case, you can use the function dial (F•D) to view the entire data. If you
press the function dial (F•D), the first data entry is displayed.
To Next Page
