14. HDR Display (SER23)
304
14.2.2 Histogram Display
During histogram display, to select the horizontal scale, follow the procedure below.
Procedure
VECT → F•2 HISTOGRAM SCALE: % / HDR
The scale for HDR varies as follows depending on the settings on the HDR tab.
HDR Mode
EI
System Gamma
HLG Scale
Scale
HLG
-
OFF
1200%
0 to 1200 [%]
100%
0 to 100 [%]
ON
1200%
0 to 1000 [Nits]
100%
0 to 1000 [Nits]
PQ
-
-
-
0 to 10000 [Nits]
S-Log3
-
OFF
-
0 to 2055 [%]
ON
-
0 to 3000 [Nits]
C-Log
-
-
-
-2.7 to 546 [%]
Log-C
200
-
-
0.33 to 83 [%]
400
-
-
0.36 to 90 [%]
800
-
-
0.38 to 72 [%]
160
0
-
-
0.38 to 43 [%]
PayloadID
UnSpec:S-Log3
Operates in OFF (SDR-TV), HLG, or PQ mode according to the payload ID information. When
the payload ID information is Unspecified, the instrument operates in S-Log3 mode.
PayloadID
UnSpec:C-Log
Operates in OFF (SDR-TV), HLG, or PQ mode according to the payload ID information. When
the payload ID information is Unspecified, the instrument operates in C-Log mode.
PayloadID
UnSpec:Log-C
Operates in OFF (SDR-TV), HLG, or PQ mode according to the payload ID information. When
the payload ID information is Unspecified, the instrument operates in Log-C mode.
HISTOGRAM SCALE = HDR

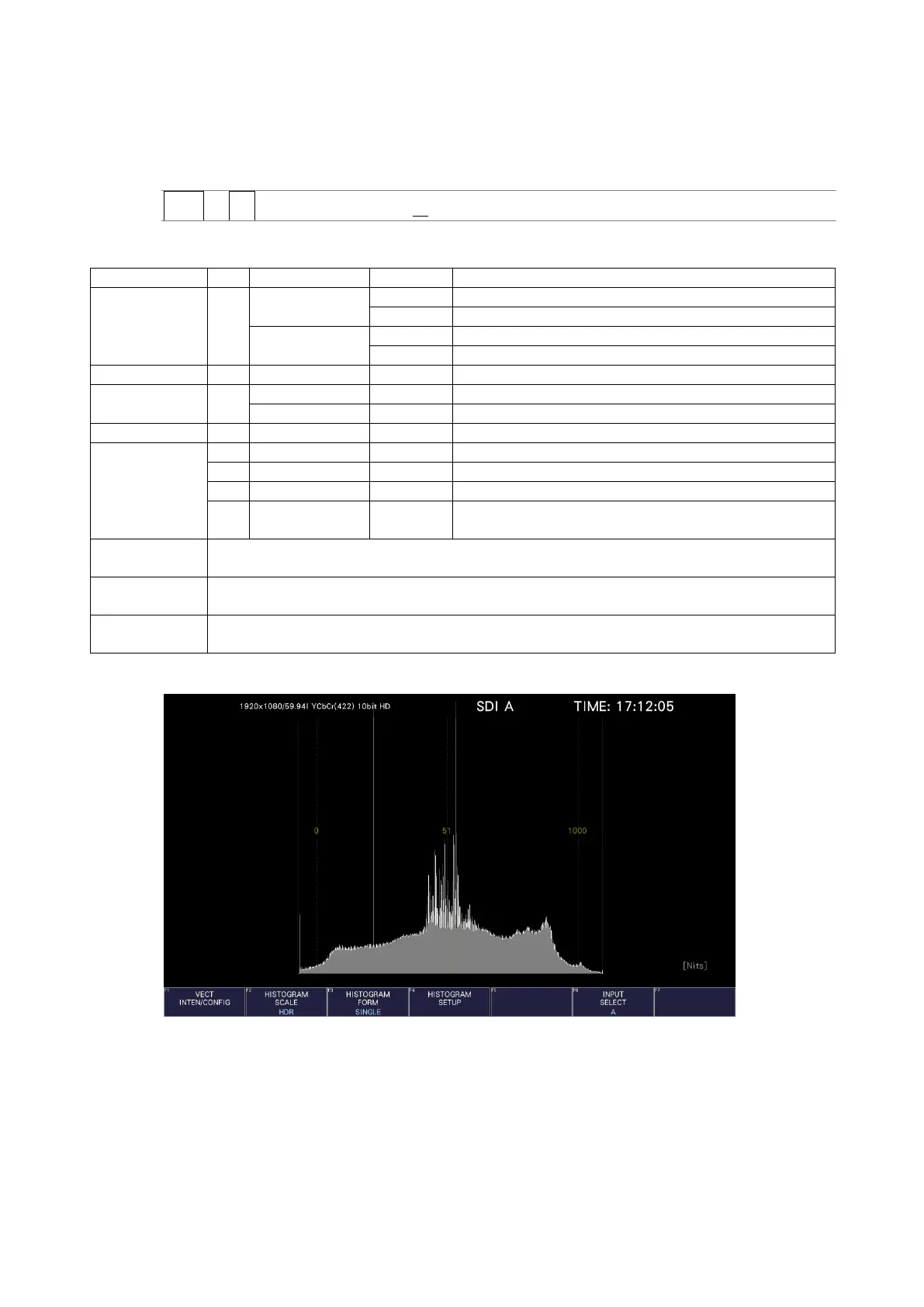

Figure 14-6 Histogram display (HDR Mode = PQ)
