6. BASIC OPERATION
85

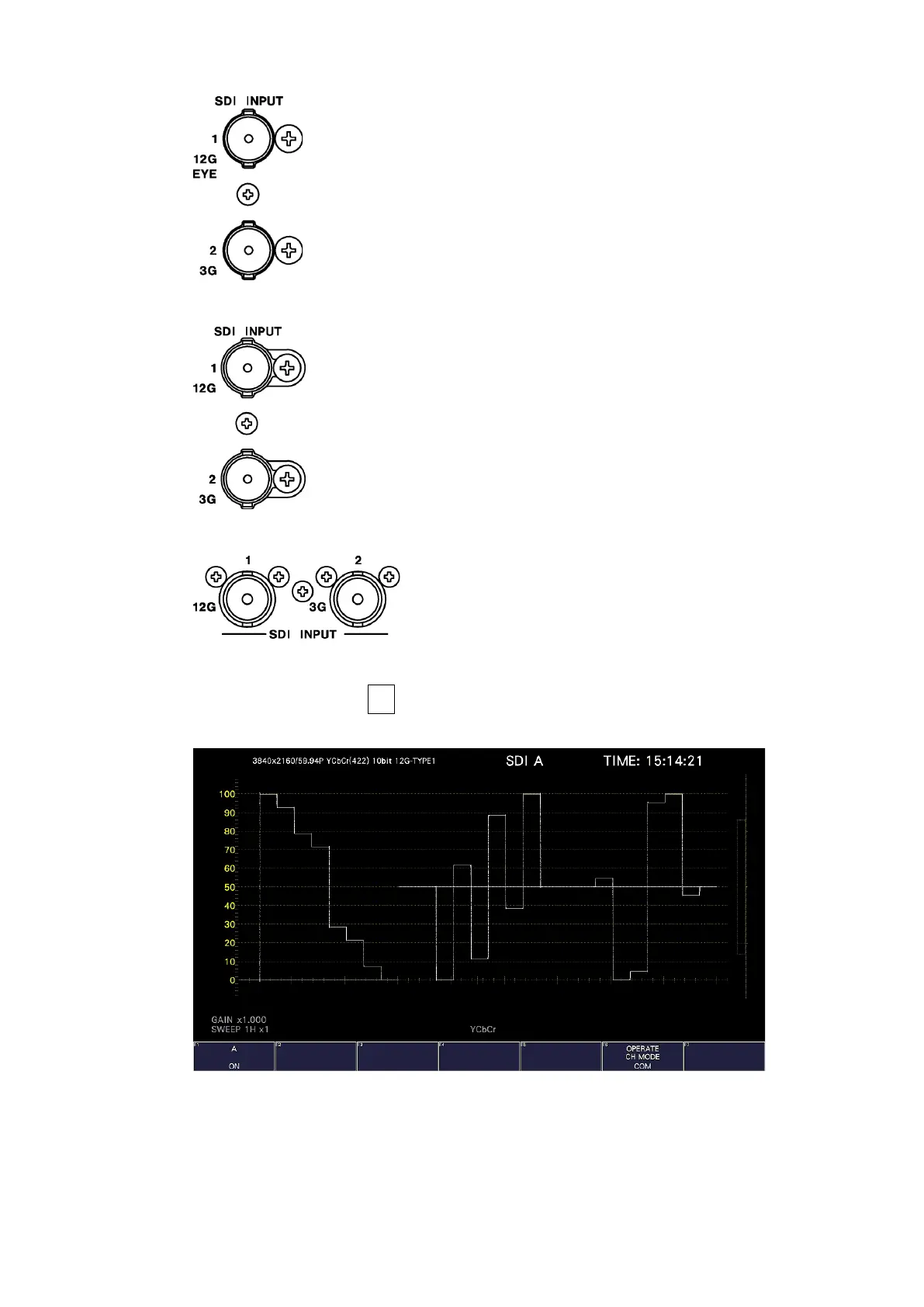

Figure 6-17 LV5300/LV5300A SDI input connectors
Figure 6-18 LV5350 SDI input connectors
Figure 6-19 LV7300 SDI input connectors
5. When you press INPUT, F•1 A is fixed to ON.
Simul mode cannot be used.
Figure 6-20 Measurement screen
* To measure 12G-SDI signals, use cables and connectors that are appropriate for transmitting
12G-SDI signals. Using incompatible or degraded cables or connectors may cause the
transmission characteristics to degrade drastically.
