6. BASIC OPERATION
94

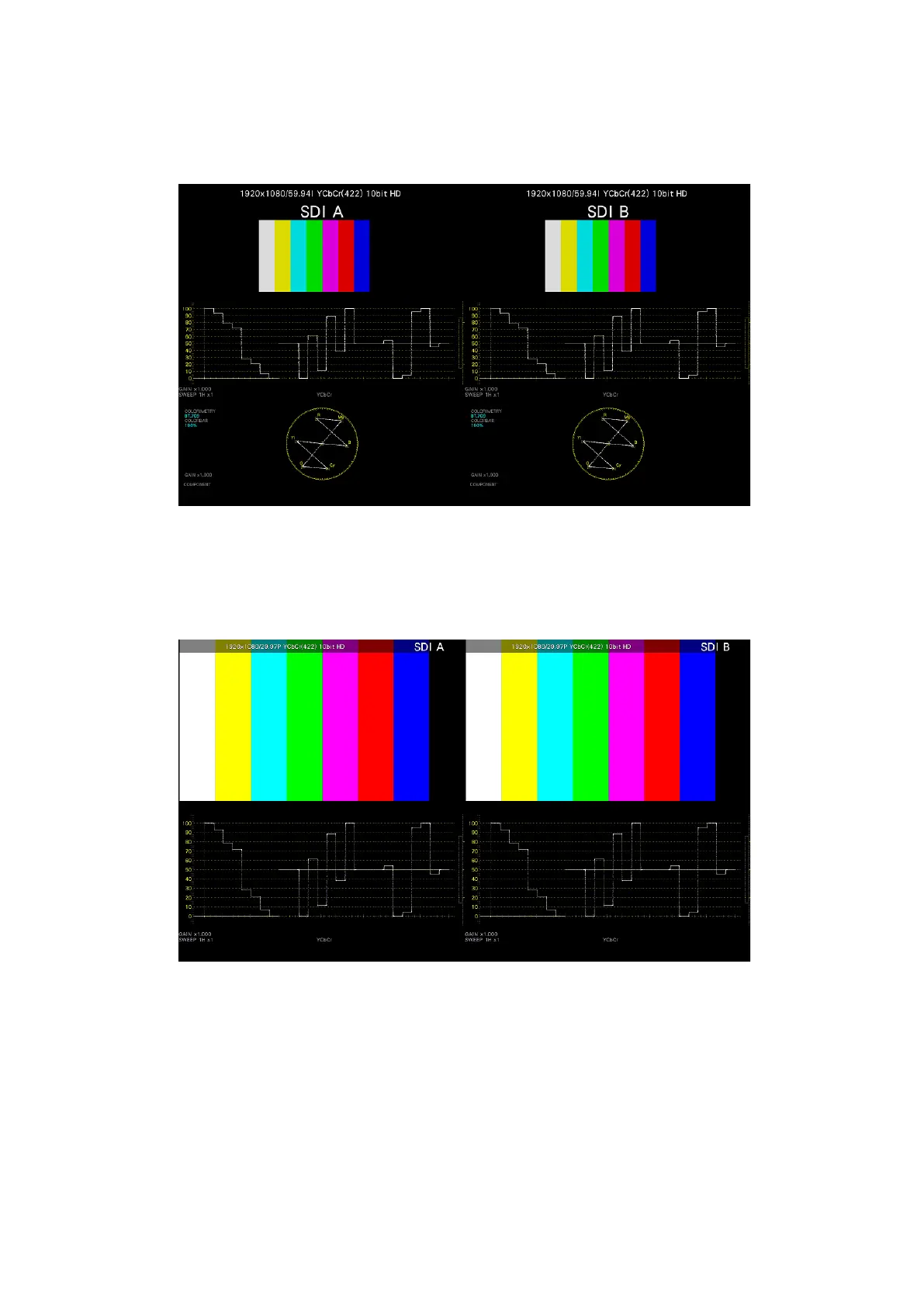

• USER 4
The picture, video-signal-waveform, and vector are displayed top to bottom.
This is suitable for simul mode.
Figure 6-36 Multi display (USER 4, Simul Mode)
• USER 5
The picture and video signal waveform are displayed in the top and bottom screens.
This is suitable for simul mode.
Figure 6-37 Multi display (USER 5, Simul Mode)
