10. Video Signal Waveform Display
189

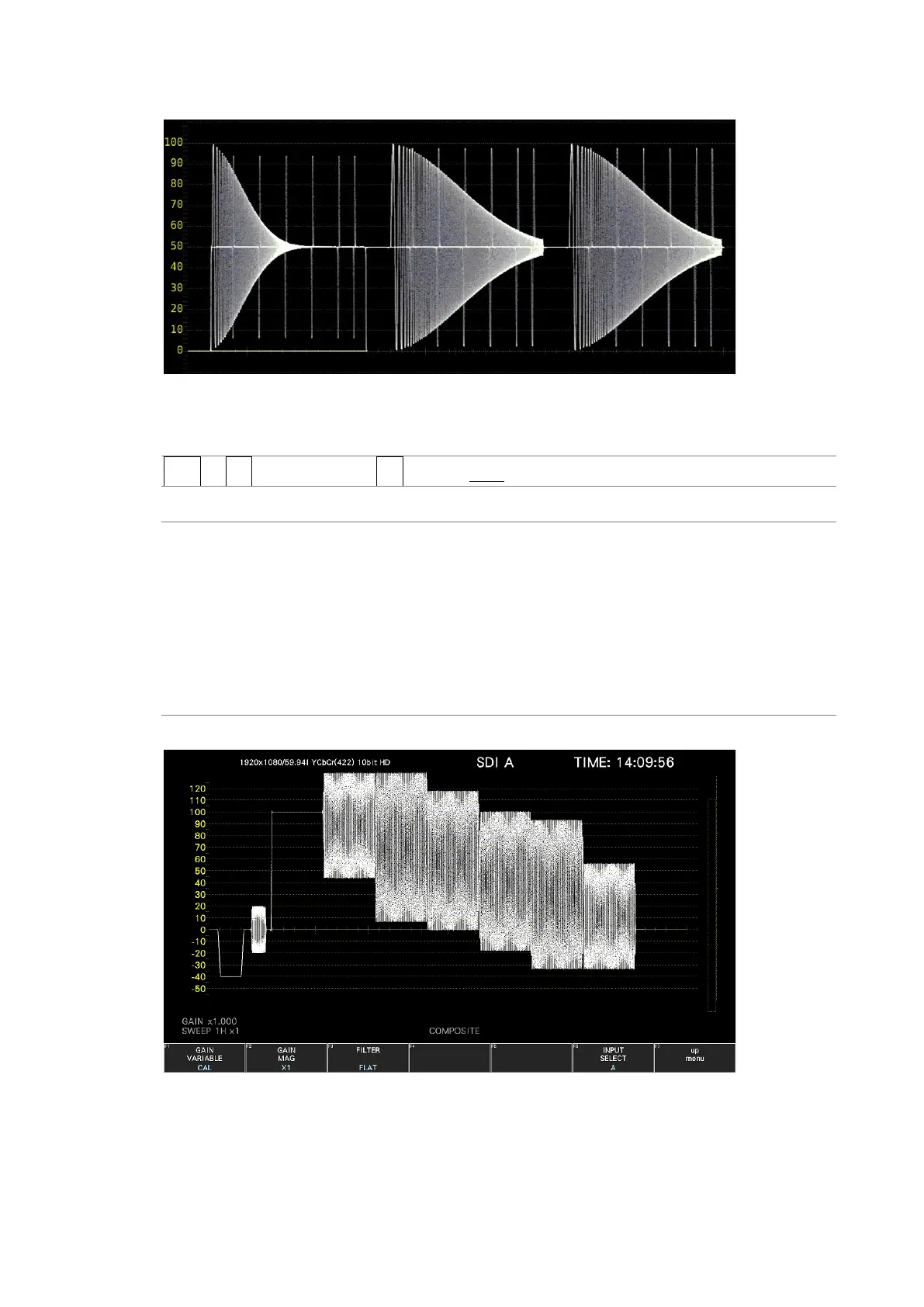

FILTER = LOWPASS
Figure 10-12 Selecting the filter (component)
Procedure (When COLOR MATRIX is set to COMPOSITE)
WFM → F•2 GAIN/FILTER → F•3 FILTER: FLAT / LUM / FLAT+LUM / LUM+CRMA
Settings
FLAT: Only the pseudo-composite signal is displayed.
LUM: Only the luminance signal is displayed.
FLAT+LUM: The pseudo-composite and luminance signals are displayed side by side.
A filter with an attenuation of 20 dB or more at 40 MHz is applied to the
luminance signal.
LUM+CRMA: The luminance and chrominance signals are displayed side by side.
A filter with an attenuation of 20 dB or more at 40 MHz is applied to the
luminance signal.
FILTER = FLAT
