13. Picture Screen
276
• RGB255 Display
Each of the R, G, and B levels is indicated using 256 steps from 0 to 255. The levels are
also indicated using bars on the left side of the display (the order is R, G, and then B).
The value of an RGB level that is 100 % or greater is 255.

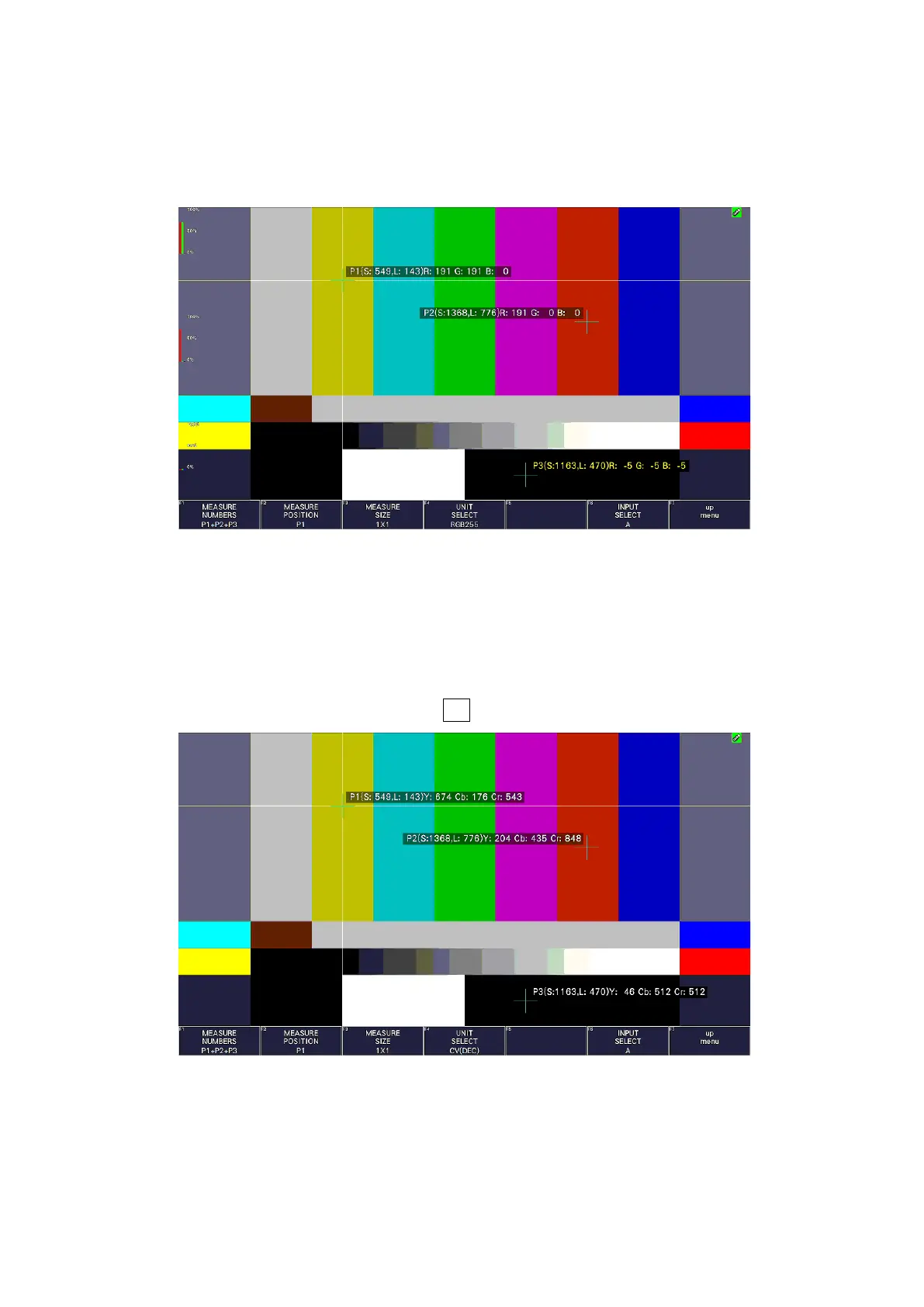

Figure 13-23 RGB255 display
• CV (CODE VALUE) Display, CV (CODE VALUE) (DEC) Display
When CV is selected, the SDI signal video data is displayed in hexadecimal.
When CA(DEC) is selected, the SDI signal video data is displayed in decimal.
When the input signal is YCbCr, the video is displayed in YCbCr, and when the input signal
is RGB, the video is displayed in RGB.
You can select CV or CV(DEC) when F•3 MEAS SIZE is 1×1.
Figure 13-24 CODE VALUE DEC display
