16. Status Display
368

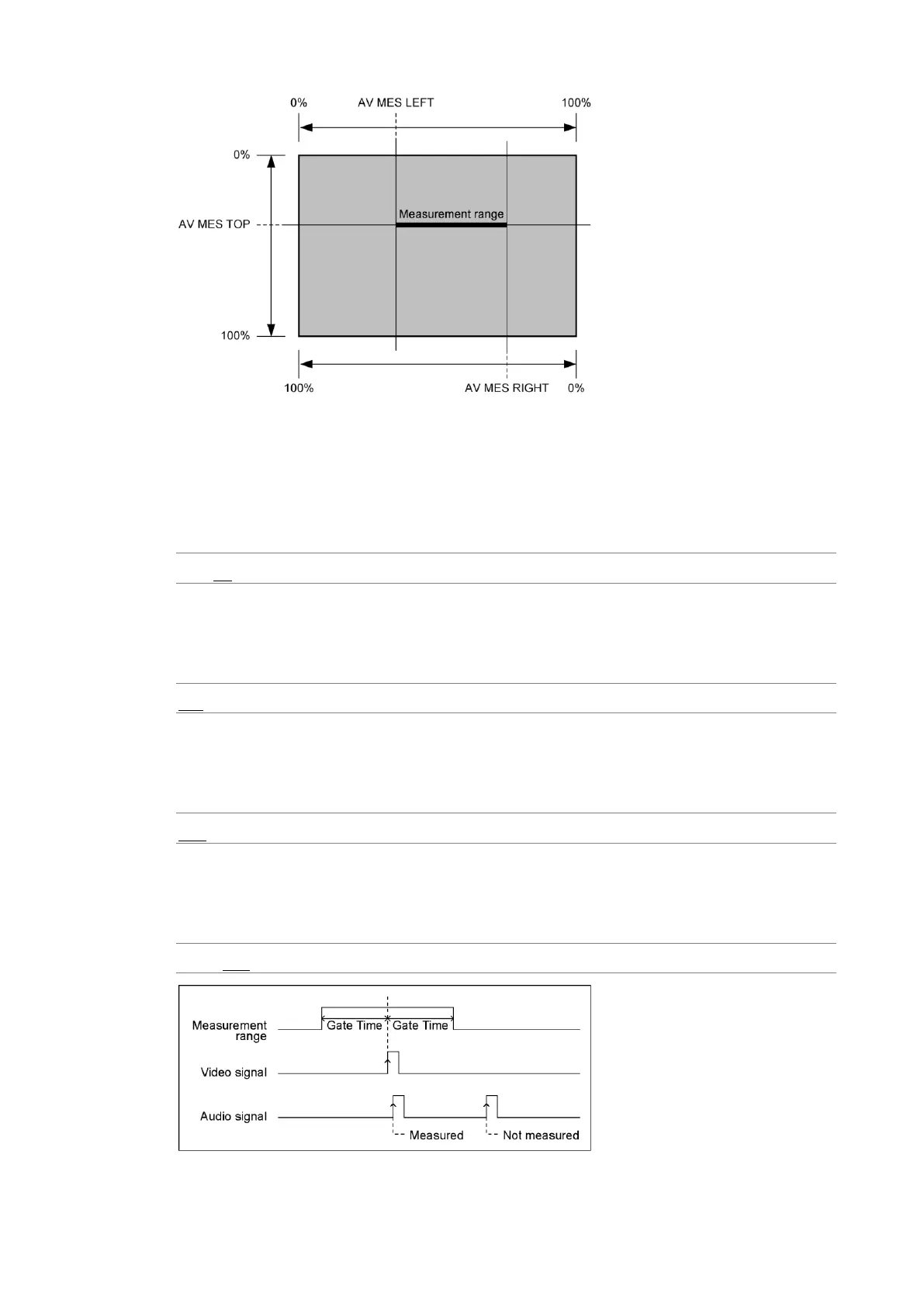

Figure 16-15 Setting the measurement range (video signal)
• Video Level
Set the video signal luminance level. The time difference from the audio signal is
measured when the luminance level of the measurement range specified with AV MES
exceeds the level specified here.
25 - 75 - 100%
• Audio Level
Set the audio signal level. The time difference from the video signal is measured when the
audio signal level exceeds the level specified here.
-30 - 0dBFS
• MES Gate
Select whether to specify the measurement range of the audio signal. Set this to ON such
as when using a pattern containing multiple audio signals for a single video signal.
OFF / ON
• Gate Time
When MES Gate is set to ON, set the measurement range of the audio signal. The
measurement range is “the rise time of the video signal ± the time set with Gate Time.”
100 - 300 - 1500
Figure 16-16 Setting the measurement range (audio signal)
