17. Eye Pattern Display (LV5300/LV5300A/LV7300-SER02)
396
• Displaying the Eye Pattern and Jitter Simultaneously
By using the customized layout feature (SER26), you can display the eye pattern and jitter
simultaneously.
[See also] 6.5, “Customized Layout (SER26)

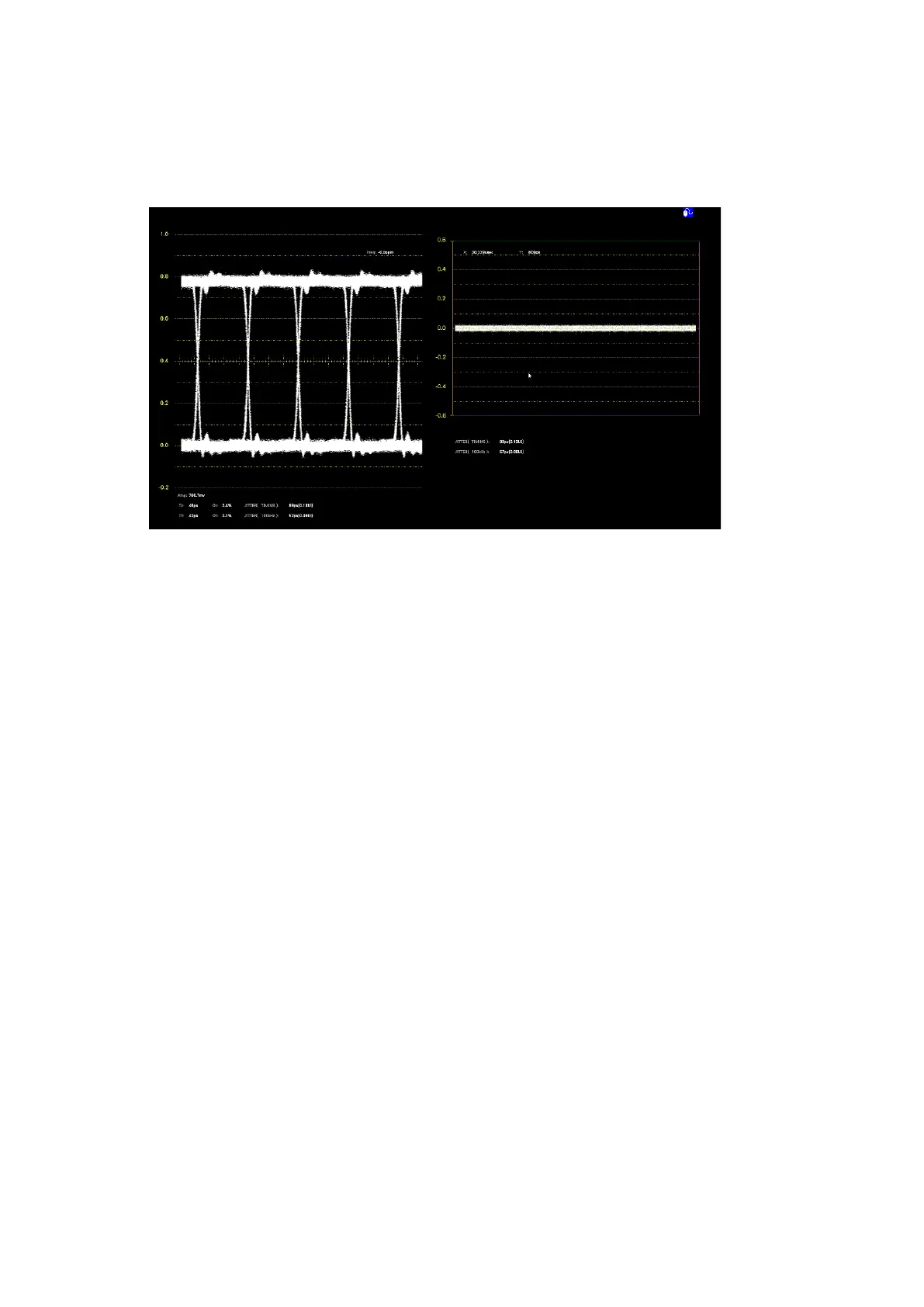

Figure 17-3 Eye pattern and jitter display
