18. Remote Control
434
• Control
Strobe signals are used for Command mode control. Data is retrieved when the strobe signal
is at low level. Strobe signals should maintain a stable low level state for at least 350 ms.
Before the next command, the strobe signal should maintain a stable high level state for at
least 650ms and then set it to a low level.

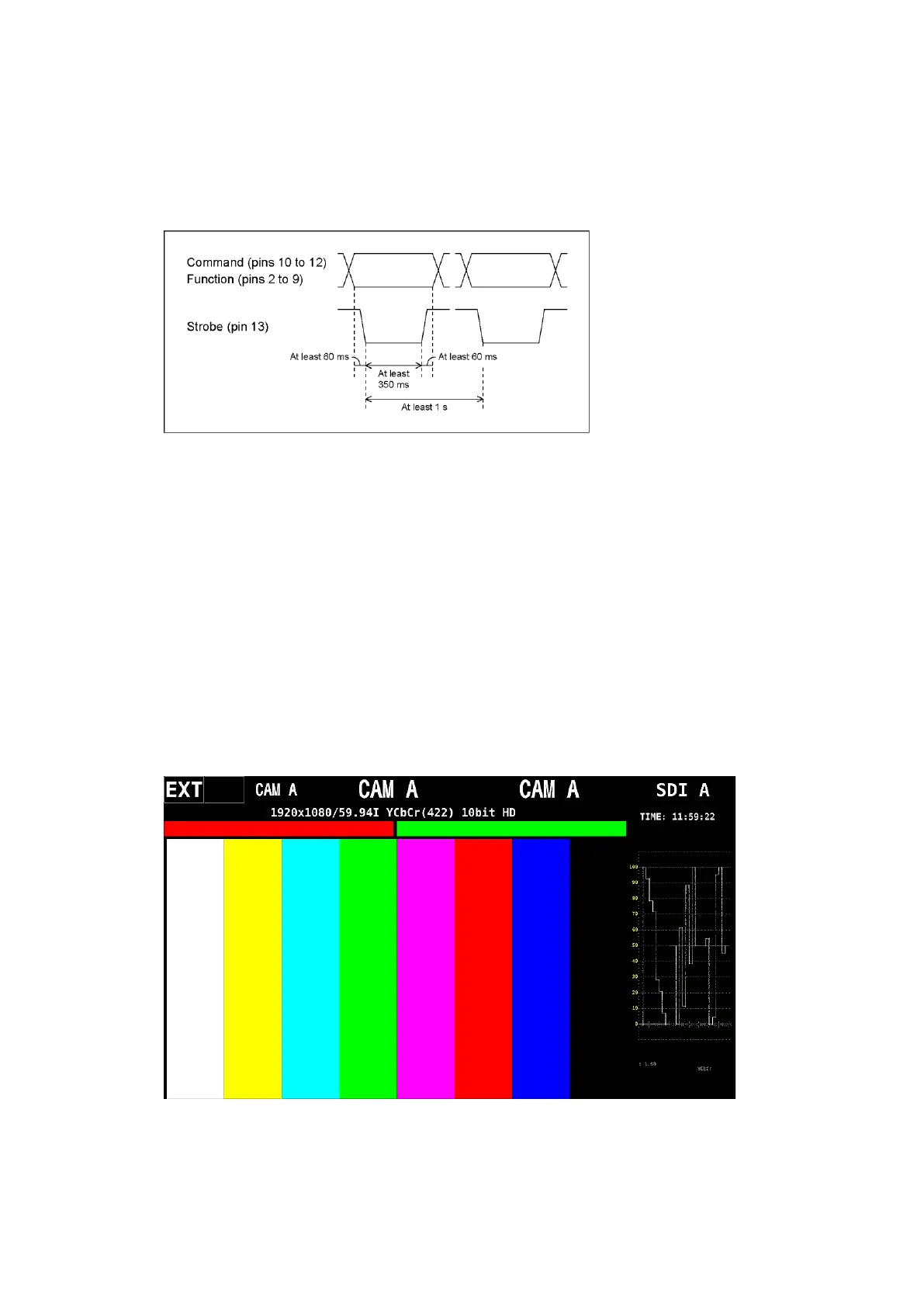

Figure 18-5 Control timing
• Loading presets (Bit)
• Switching Display Channels
• Alarm output
These are the same as Bit mode. See section 18.1, “Bit Mode.”
• Loading presets (Binary)
This is the same as Binary mode. See section 18.2, “Binary Mode.”
• Tally display (SER27)
You can use pins 2 to 9 of the remote connector to display tallies.
Tallies that you set to low will be turned on, and those that you set to high will be turned off.
To display tallies, you must place TALLY items in the layout or turn Tally Frame on.
Figure 18-6 Tally display
