18. Remote Control
436
• Tally Display
You can use pins 2 to 13 of the remote connector to display tallies.
Tallies that you set to low will be turned on, and those that you set to high will be turned off.
To display tallies, you must place TALLY items in the layout or turn Tally Frame on.

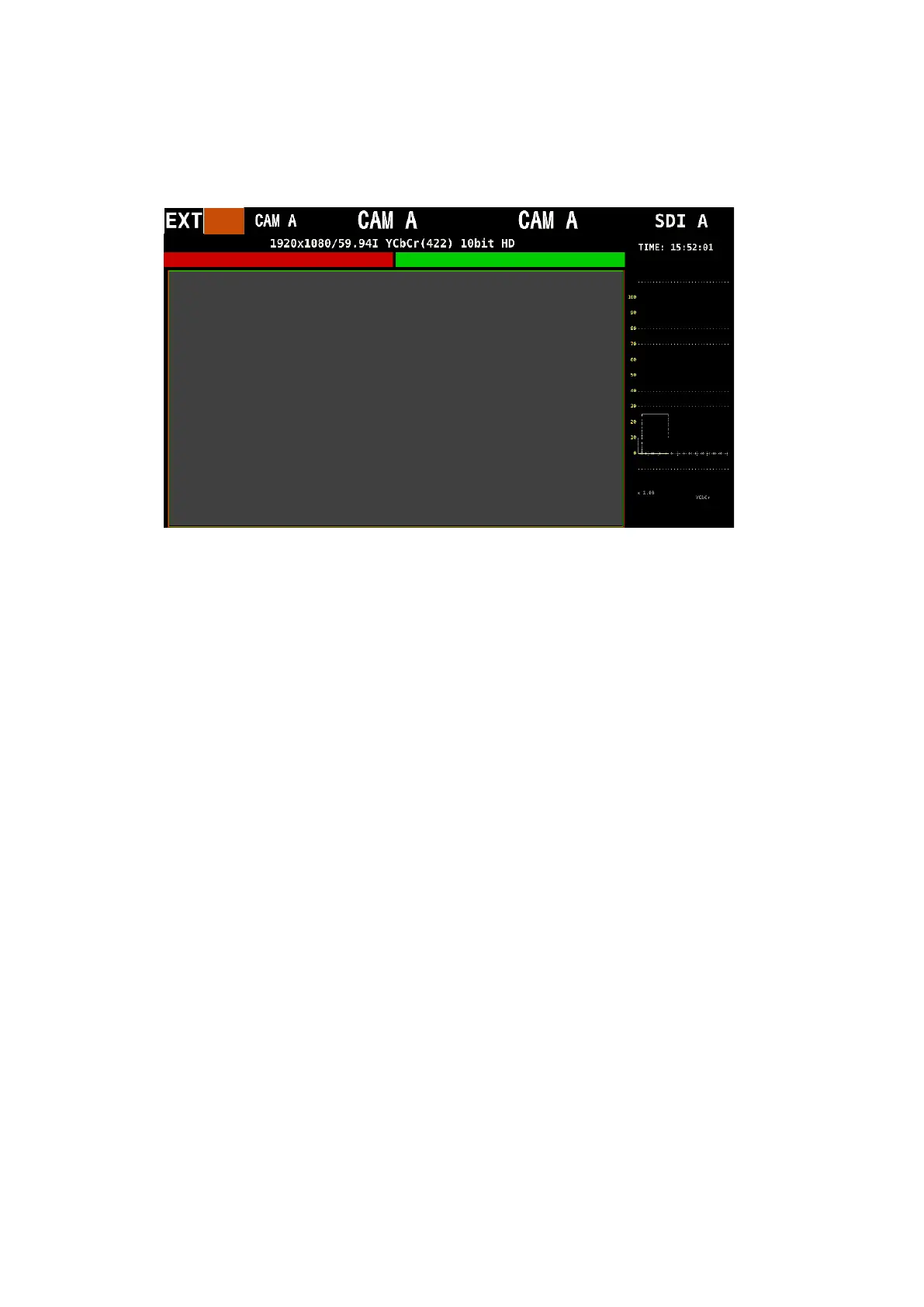

Figure 18-8 Tally display
