ARM Cortex-A76 Core User Manual

D9.46 TRCITIDATAR, Integration Instruction ATB Data Register
The TRCITIDATAR sets the state of the ATDATAMn output pins shown in the TRCITIDATAR bit
assignments table.
Bit field descriptions
The TRCITIDATAR is a 32-bit register.
31 02 1
ATDATAM[31]
345
ATDATAM[23]
ATDATAM[15]
ATDATAM[7]
ATDATAM[0]
RES0

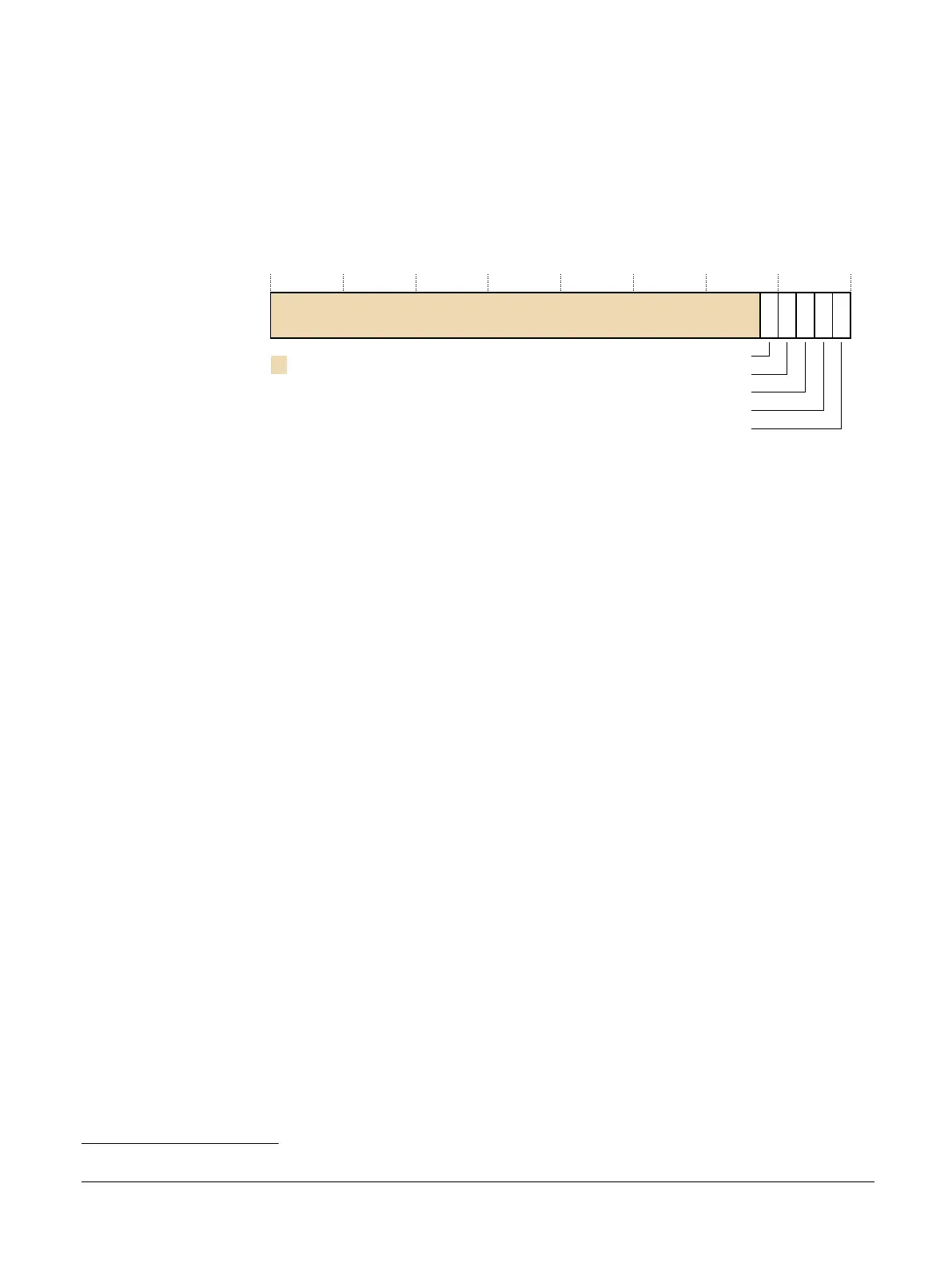

Figure D9-44 TRCITIDATAR bit assignments
RES0, [31:5]
RES0 Reserved.
ATDATAM[31], [4]
Drives the ATDATAM[31] output.
d
ATDATAM[23], [3]
Drives the ATDATAM[23] output.
d
ATDATAM[15], [2]
Drives the ATDATAM[15] output.
d
ATDATAM[7], [1]
Drives the ATDATAM[7] output.
d
ATDATAM[0], [0]
Drives the ATDATAM[0] output.
d
Bit fields and details not provided in this description are architecturally defined. See the Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
The TRCITIDATAR can be accessed through the external debug interface, offset 0xEEC.
d
When a bit is set to 0, the corresponding output pin is LOW. When a bit is set to 1, the corresponding output pin is HIGH. The TRCITIDATAR bit values correspond
to the physical state of the output pins.
D9 ETM registers
D9.46 TRCITIDATAR, Integration Instruction ATB Data Register
100798_0300_00_en Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
D9-556
Non-Confidential
